| Categories | Five Axis Jewelry Carving Machine |
|---|---|
| Brand Name: | guanglijin |
| Place of Origin: | 101/F and 201/F,Building27,Lianchuang Science and Technology Park,21 BulanRoad, Xialilang Village,Nanwan Street, Shenzhen |
| Certification: | CE Certificate |
| MOQ: | 1 |
| Packaging Details: | Fumigation wooden frame - in line with international standards |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 units/month |

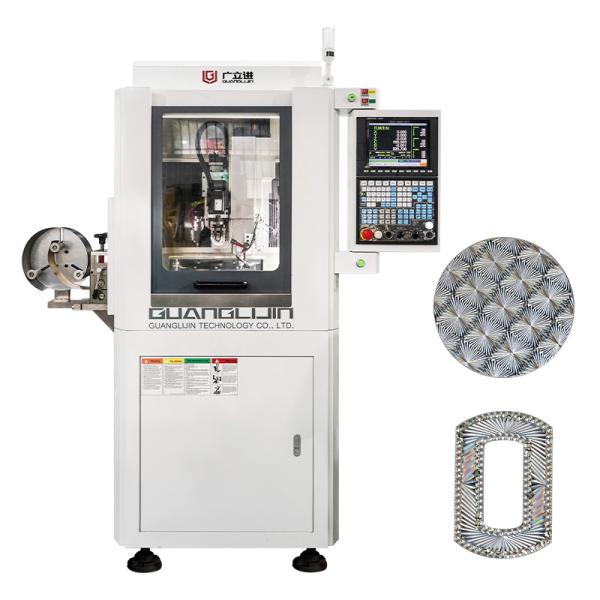

| Model Number: | G5-430 Five-axis sheet engraving machine |
| Company Info. |
| Shenzhen Guanglijin Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| G5-430 | |||
| No. | Item | Details | |
| 1 | Transmission components | Rexroth, Germany | Repeatability: +/-0.005mm |
| 2 | Operation | SYNTEC system | 220MB-5, 10 inch screen operation box |
| 3 | Servo motor | 200W/400W/750W | |
| 4 | Spindle | Electric | 3.7kw, max. speed 45000 rpm water cooling with flow-alarm |
| 5 | Tool magazine | Servo-drive | Up to 10 tools |
| 6 | Tool holder | HSK E25 | |
| 7 | Collet chuck | ER-16 | |
| 8 | Sheet width | max. 90mm | |
| 9 | Lubrication | Timing automatic oiling | |
| 10 | Working flatness | +/-0.005mm | |
| 11 | X axis stroke | 430mm | |
| 12 | Y axis stroke | 120mm | |
| 13 | Z axis stroke | 115mm | |
| 14 | Body weight | 1.5 tons | |
| 15 | Front door | penumatic door | |
| 16 | Layout (mm) | Main body | 1600 width*1000 depth*2400 height |
| 17 | Power requirement | three-phase | 380v/50hz |
Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade
Fumigation wooden case by sea or by air
Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with
over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the
world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do
global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
|
