Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption

Categories Suspension Air Spring
Brand Name: Guomat
Model Number: 1B53014
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 1B53014
Structure: Single Convolution
Damping Force Direction: Bidirectional
Origin: Guangzhou, China
Warranty: 12 Months
Operation: Gas-Filled
Customization: Available | Customized Request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption

Industrial Air Bags 1B53014 G1/2 Air Inlet Rubber Bellows Air Shock Absorption


Specifications and Detailed Technical Parameters: 1B53014


Nut/blind nut

Top plate screw (nut) teeth: 4X3/8-16UNC

Bottom cover plate screw (nut) teeth: 4X3/8-16UNC
The screw center distance of the cover plate: 158.8 mm

Air hole/air inlet/air fittings

G1/2

Rubber Bellows

Rubber bellows stroke: minimum 81 mm to maximum 160 mm
Plate diameter

Top plate diameter (width): 289 mm

Bottom cover plate diameter: 289 mm

Bumper block/bumper block

Without

Belt loop/Belt loop/Girdle hoop

Without

Min. pressure: 0 bar

Return force to min.height: ≤300N

Overall weight with clamped plates: 6.1kg


Vibration isolation - dynamic characteristic values

Design Height H: recommended 150mm, minimum 120mm

Pressure p[bar]345678Vol. V[l]
Force(Load) [KN]18.624.931.537.944.450.811.0
Spring rate [N/cm]365044105340614072207920
Natural frequency [Hz]2.22.12.12.02.02.0

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]345678Vol. V [l]
Height H[mm]16017.123.029.035.041.247.311.8
14020.026.833.740.647.754.510.7
12022.329.837.344.952.760.29.5
10024.131.940.048.156.364.38.2
8025.333.441.950.358.867.16.6
6026.034.543.452.060.869.14.6

Application

  • paper sizing presses
  • gluing machines
  • pressure rollers for calenders
  • missile assembly jigs
  • gate valve operators
  • web assembly machines
  • forming presses
  • cable tensioning machines
  • abrasive separators
  • knife spring adjusters
  • rolling Flat machine
  • roller friction brake
  • straightening machine
  • bronzing machin
  • belt lift tensioner
  • special paper press roll
  • leather machiner
  • hopper
  • box sealing machine
  • industrial washing machine

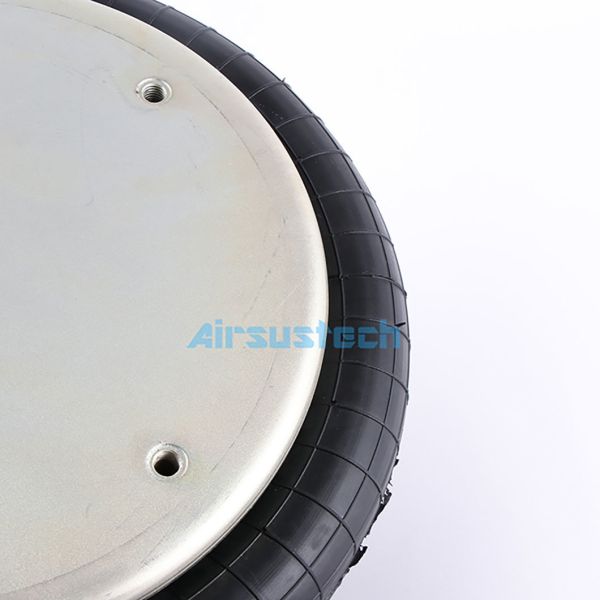

The related picture of 1B53014

Truck Helper Bags 1b53014 Convoluted G1/2 Air Inlet Rubber SpringTruck Helper Bags 1b53014 Convoluted G1/2 Air Inlet Rubber Spring


Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
