Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304

Categories Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: 3B12-304
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Convolution: Triple
Manufacturer: AIRSUSTECH
Item NO.: 3B12-304
Minimum Height: 117 MM
Bellow MAX. Diameter: 330 MM
Cross References: 3B12-304
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304

Arvin Meritor 200320 Triple Convoluted Rubber Bellow Air Spring Goodyear 3B12-304


Production Specifications

Minimum Height117 mm
Maximum Height460 mm
Stroke Height343 mm
Bellow Maximum OD.330 mm
Top Cover Plate Diameter231 mm
Bottom Cover Plate Diameter231 mm
Screw Center Distance157.5 mm



Cross References

Firestone

W01-358-8006, W01 358 8006, W013588006
WO1-358-8006, WO1 358 8006, WO13588006

Contitech

FT 330-29 430, FT 330 29 430, FT 33029430
FT330-29 430, FT330-29430, FT33029430

Goodyear

3B12-304, 3B 12 304, 3B12304, 3B12 304
3B 12304, 578933100

Triangle6634, 4430
LelandSc2132
Arvin Meritor200320



Applications


1. Application of rubber air springs in lifting equipment

Traditional lifting equipment uses cylinders or hydraulic cylinders to lift objects, which require large installation space, are difficult to manufacture, heavy, prone to leakage, and inconvenient to repair. After using rubber air springs as lifting elements of lifting equipment, the traditional shortcomings of lifting equipment are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.


2. Application of rubber air springs in vibration reduction equipment

The advantages of high-frequency vibration isolation, sound insulation and low self-vibration frequency of rubber air springs can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats.


3. Other uses of rubber air springs

Using rubber air springs as vibration reduction bases can effectively protect precision equipment from damage during transportation, such as the transportation of missiles and control launch devices. Using rubber air springs as support tools, taking advantage of their light weight and easy operation, it is convenient for the maintenance of field vehicles and equipment, etc.



AIRSUSTECH Air Bags Product Services


  • Professional installation available through authorized dealers
  • Warranty included with product purchase
  • Online resources available for product information and troubleshooting
  • Customer service available for any questions or concerns

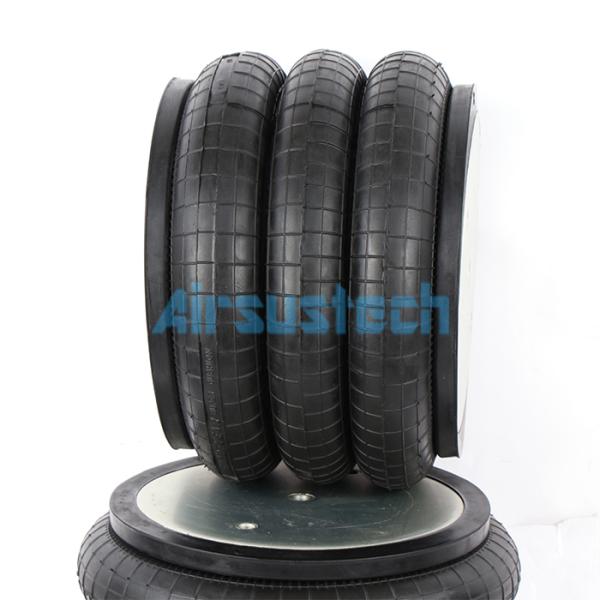

The Real Pictures of 3B12-304:
