| Categories | 99% Alumina Ceramics |
|---|---|
| Brand Name: | HENGYUAN |
| Model Number: | 99% Alumina Ceramics |
| Certification: | CE,UL |
| Place of Origin: | WUXI JIANGSU CHINA |
| MOQ: | 100 |
| Price: | Negotiable |
| Supply Ability: | 5000 PCS/WEEK |
| Delivery Time: | 20 DAYS |
| Packaging Details: | Carton |

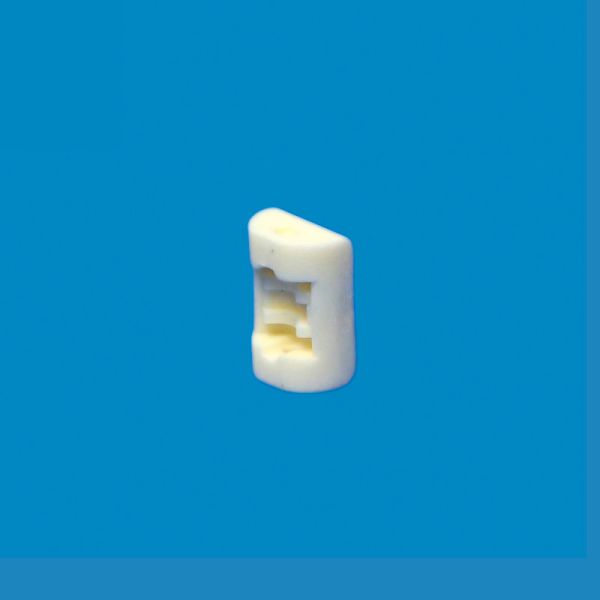

| Material: | 99% Alumina Ceramics |
| Color: | White |
| Density: | 3.85g/cm³ |
| Thermal Shock Resistance: | 270 △T℃ |
| OEM,ODM: | Acceptable |
| Orgin: | WUXI JIANGSU CHINA |
| MOQ: | 100 PCS |
| Package: | Carton |
| Company Info. |
| Yixing Hengyuan Ceramic Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Alumina ceramic is a high-performance ceramic material made from alumina as the main raw material through processes such as crushing, forming, and sintering. Its main characteristics include high hardness, high wear resistance, high heat resistance, high insulation, etc. It is an engineering ceramic with a wide range of applications. Aluminum oxide ceramics have high insulation performance and good thermal conductivity, which can be used to make high-frequency ceramic media, electronic ceramics, thermistors and other electronic components, and are widely used in high-end electronic products.
| Naterial | Unit | A95% Alumina Ceramics | A97% Alumina Ceramics | A99% Alumina Ceramics | A99.7% Alumina Ceramics |
| Density | g/cm³ | 3.6 | 3.72 | 3.85 | 3.85 |
| Flexural Strength | Mpa | 290 | 300 | 350 | 350 |
| Compressive Strength | Mpa | 3300 | 3400 | 3600 | 3600 |
| Modulus of Elasticity | Gpa | 340 | 350 | 380 | 380 |
| Impact Resistance | MPam1/2 | 3.9 | 4 | 5 | 5 |
| Weibull Modulus | M | 10 | 10 | 11 | 11 |
| Vickers Hardulus | HV0.5 | 1800 | 1850 | 1900 | 1900 |
| Thermal Expansion Coefficient | 10-6K-1 | 5.0-8.3 | 5.0-8.3 | 5.4-8.3 | 5.4-8.3 |
| Thermal Conductivity | W/Mk | 23 | 24 | 27 | 27 |
| Thermal Shock Resistance | △T℃ | 250 | 250 | 270 | 270 |
| *Maximum Use Temperature | ℃ | 1600 | 1600 | 1650 | 1650 |
| Volume Resistivity at 20℃ | Ω | ≥1014 | ≥1014 | ≥1014 | ≥1014 |
| Dielectric Strength | KV/mm | 20 | 20 | 25 | 25 |
| Dielectric constant | εr | 10 | 10 | 10 | 10 |

















|
