| Brand Name: | HENGYUAN |
| Model Number: | Structural Ceramics |
| Certification: | CE,UL |
| Place of Origin: | WUXI JIANGSU CHINA |
| MOQ: | 100 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 PCS/WEEK |
| Delivery Time: | 20 DAYS |
| Packaging Details: | Carton |
| Material: | Structural Ceramics |
| Color: | Yellow Or White |
| Usage: | Industrial Ceramic |
| Size: | Size Customized |
| OEM,ODM: | Acceptable |
| Orgin: | WUXI JIANGSU CHINA |
| MOQ: | 100 PCS |
| Package: | Package |
| Company Info. |
| Yixing Hengyuan Ceramic Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Structural ceramics are a type of material based on oxides, non oxides, and composite materials, characterized by high strength, high hardness, high toughness, and high temperature stability. Its atomic structure presents a three-dimensional network structure, mainly composed of non-metallic ions such as oxygen, silicon, aluminum, etc. Structural ceramics have various bonding modes such as ionic bonds, covalent bonds, and hydrogen bonds in their atomic arrangement, which give them unique mechanical and chemical properties.
| Naterial | Unit | A95% Alumina Ceramics | A97% Alumina Ceramics | A99% Alumina Ceramics | A99.7% Alumina Ceramics |
| Density | g/cm³ | 3.6 | 3.72 | 3.85 | 3.85 |
| Flexural Strength | Mpa | 290 | 300 | 350 | 350 |
| Compressive Strength | Mpa | 3300 | 3400 | 3600 | 3600 |
| Modulus of Elasticity | Gpa | 340 | 350 | 380 | 380 |
| Impact Resistance | MPam1/2 | 3.9 | 4 | 5 | 5 |
| Weibull Modulus | M | 10 | 10 | 11 | 11 |
| Vickers Hardulus | HV0.5 | 1800 | 1850 | 1900 | 1900 |
| Thermal Expansion Coefficient | 10-6K-1 | 5.0-8.3 | 5.0-8.3 | 5.4-8.3 | 5.4-8.3 |
| Thermal Conductivity | W/Mk | 23 | 24 | 27 | 27 |
| Thermal Shock Resistance | △T℃ | 250 | 250 | 270 | 270 |
| *Maximum Use Temperature | ℃ | 1600 | 1600 | 1650 | 1650 |
| Volume Resistivity at 20℃ | Ω | ≥1014 | ≥1014 | ≥1014 | ≥1014 |
| Dielectric Strength | KV/mm | 20 | 20 | 25 | 25 |
| Dielectric constant | εr | 10 | 10 | 10 | 10 |


















|   |
 Wear Resistant Structural Ceramics Material Size Customized Industrial Ceramic Parts




                                                            Wear Resistant Structural Ceramics Material Size Customized Industrial Ceramic Parts


                     OEM Advanced Structural Ceramics Excellent Mechanical Thermal And Chemical Properties




                                                            OEM Advanced Structural Ceramics Excellent Mechanical Thermal And Chemical Properties


                     Size Customized Industrial Structural Ceramics Excellent Mechanical and Thermal Properties




                                                            Size Customized Industrial Structural Ceramics Excellent Mechanical and Thermal Properties


                     HighTemperature Resistance Structural Ceramics Yellow Or White for Industrial Components




                                                            HighTemperature Resistance Structural Ceramics Yellow Or White for Industrial Components


                     Structural Ceramic The Ultimate Solution for Industrial Components with Custom Properties




                                                            Structural Ceramic The Ultimate Solution for Industrial Components with Custom Properties

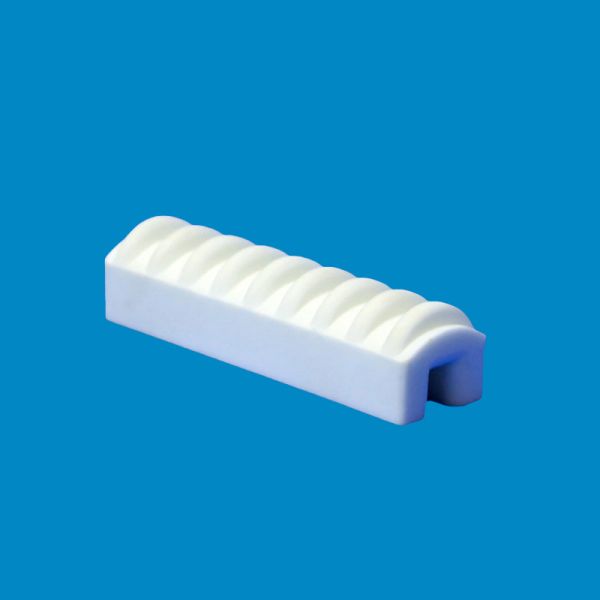

                     Industrial Structural Ceramics Custom Sizes And Properties Available
