3HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line

Categories Portable Water Chiller
Brand Name: ANGES
Model Number: 3hp
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T
Delivery Time: 30 days
Packaging Details: Plywood case
Cooling Capacity: 8.5 kw
Water Tank Capacity: 20L
Voltage: 3PH~220V/440V/380/415V~50HZ/60HZ
Type Of Control: expansion valve
Packages: Plywood case
Compressor Tpye: Scroll compressor
Original: China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

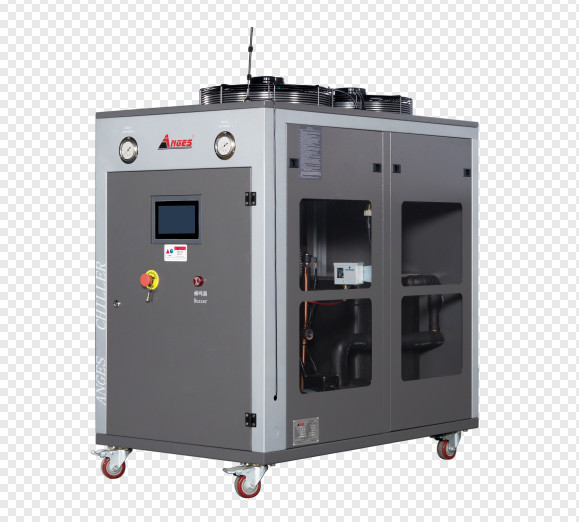

3HP Air Cooled Scroll Chiller Industrial Process Air Chillers For Printing And BOPP Film Lamination Line

Technical Parameter of Air-cooled scrolled Type Chiller

Model

Item

ACK-3
Nominal cooling capacityKcal/h7955
kw8.5
Input powerkw3.2
Power supply3PH~380V/50HZ
RefrigerantTypeR22
Type of controlCapillary
CompressorTypeHermetic scroll type
Power (kw)2.64
CondenserType

Finned copper tube+low noise outer

rotor fan

Power(kw)0.19
Cooling air flow(m³/h)3000
EvaporatorTypeShell and tube
Chilled water flow (m³/h)1.47
Tank volume(L)20
Inlet/outlet pipe chiller(inch)1
Water pumpPower(KW)0.37
Lift(m)20
Safety protectioncompressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection
Net weightkg150
Dimensionmm1030*520*1185

Note: 1. Nominal cooling capacity is according to:

Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃

Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃

2. Working Range:

The temperature range of chilled fluid is from 5℃ to 35℃;

Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.

It is better to run the chiller while the ambient temperature at or below 35℃.

We reserve the right to modify the above dimensions or parameters without further notice.
