| Categories | Rubber Air Hose |
|---|---|
| Brand Name: | PASSIONCO HOSE |
| Model Number: | PJH-19100 |
| Certification: | RoHS, CE |
| Place of Origin: | Zhejiang, China |
| MOQ: | 100 pieces |
| Price: | USD 30.0~35.0 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200,000 meters per month |
| Delivery Time: | 4 weeks |

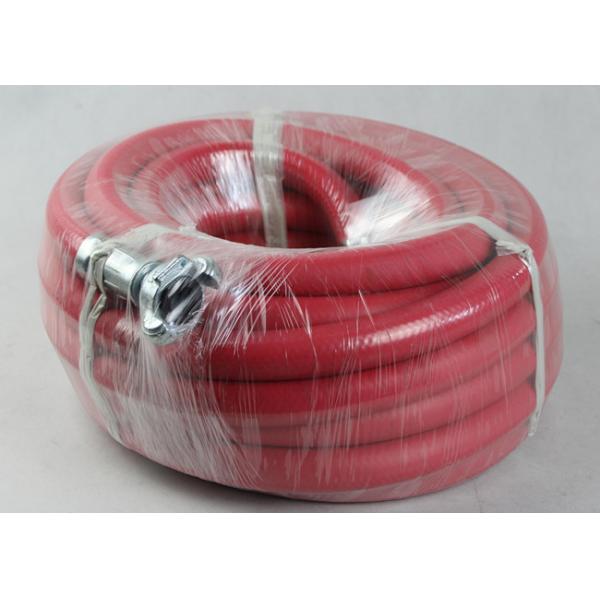

| Packaging Details: | Strong woven stripes wrapped |
| Material: | EPDM Synthetic Rubber |
| Size: | 3/4'' |
| Length: | 100ft |
| Couplings: | Univesal Chicago Couplings |
| Working Pressure: | 2MPa/20bar/300psi |
| Bursting Pressure: | 6MPa/60bar/900psi |
| Surface: | Smooth EPDM Synthetic Rubber |
| Application: | Transfer of Air Water, Light Oils and Chemicals |
| Temperature: | -30℃~+80℃ |
| Logo: | Customized |
| Color Option: | Red, Yellow (Customized) |
| Company Info. |
| Hangzhou Paishun Rubber & Plastic Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

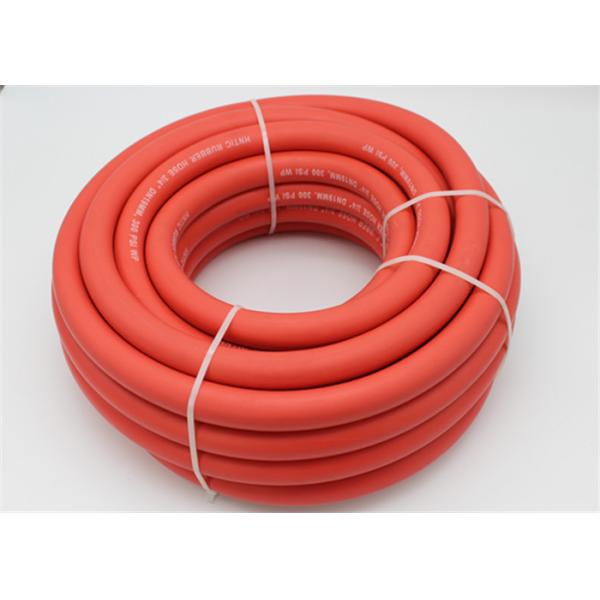

Description:
EPDM Rubber Hose is a versatile and durable hose designed for use in various
industrial and agricultural applications. It is made from EPDM
(Ethylene Propylene Diene Monomer), a type of synthetic rubber
known for its excellent resistance to weather, ozone, heat, and
chemicals.
Applications: It can handle air, water, light chemicals, and non-corrosive
liquids, making it ideal for tasks like irrigation, construction,
and even for use with air tools such as nailers and staplers
Features: The hose is highly resistant to abrasion and can tolerate both
hot and cold water. It is also widely used for suction and delivery
operations
Flexibility: Its flexibility and resistance to wear make it suitable for
delivering fertilizers, acids, and general-purpose air and water
tasks
Product Parameters:

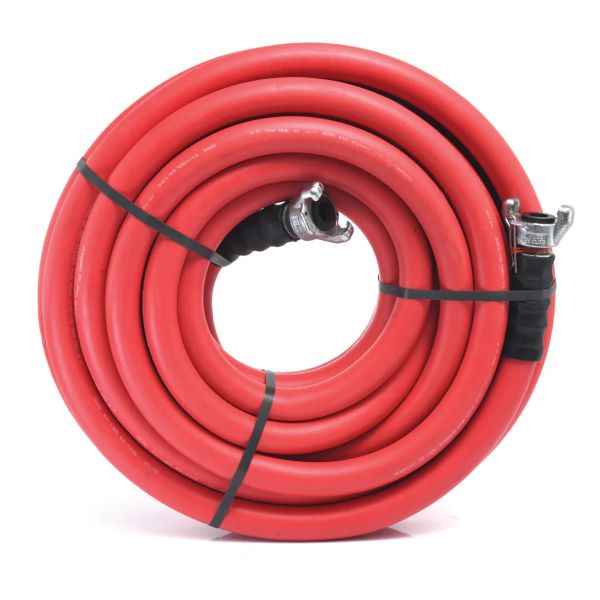

| 3/4 Inch 100FT Jackhammer Air Hose Assembly | |
| Application | ldeal for jackhammers and other industrial tools. |
| Color option | Red, Yellow, etc. |
| TEMP. Rang | -30ºC ~ +80ºC |
| Inner Diameter | 3/4'' |
| Certifications | CE & RoHS approved. |
| Fittings | Universal Chicago Coupling |
| Inner Tube | Black Superior SBR Synthetic Rubber |
| Outer Cover | Anti-Aging EPDM Synthetic Rubber Compound |
| Specific Parameters | |||||||||||
| Part Number | I.D | O.D | Max W.P. | Min B.P. | Min Bend Raidus | Length | |||||
| NO. | inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | feet |
| PJH-1950 | 3/4 | 19 | 1.14 | 29 | 300 | 20 | 900 | 60 | 9.13 | 232 | 50 |
| PJH-19100 | 3/4 | 19 | 1.14 | 29 | 300 | 20 | 900 | 60 | 9.13 | 232 | 100 |
| PJH-2550 | 1 | 25.4 | 1.38 | 35 | 300 | 20 | 900 | 60 | 11.02 | 280 | 50 |
| PJH-25100 | 1 | 25.4 | 1.38 | 35 | 300 | 20 | 900 | 60 | 11.02 | 280 | 100 |
Applications:
For jackhammers and other industrial tools. Mandrelbuilt,
multi-ply, smooth cover construction ensures long-lasting
performance in demanding construction applications.
Advantages:
PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!
PASSION FOR HOSE, PASSION FOR YOU!
|
