| Categories | UPVC Electric Butterfly Valve |
|---|---|
| Brand Name: | GRAT |
| Model Number: | EB-0000270 |
| Certification: | IP67,CCC, ISO, CE、CNAS |
| Place of Origin: | Wuhan, Hubei, China |
| MOQ: | 1 pc |
| Price: | USD $80.00/ Piece |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 3 working days |
| Packaging Details: | Carton/Wooden Box |
| Driving Mode: | Electric |
| Connection Form: | Wafer |
| Work Pressure: | PN1.0-32.0MPa |
| Structure: | Fixed Ball Valve |
| Function: | Bypass-Valve |
| Standard: | DIN |
| Size: | Dn50~300 |
| Channel: | Straight Through Type |
| Type: | Fixed Ball Valve |
| Working Temperature: | Normal Temperature |
| Application: | Industrial Usage, Water Industrial Usage |
| Medium: | Water, Air, Oil, Corrosive Chemical Liquid |
| HS Code: | 8481804090 |
| Company Info. |
| Wuhan Grat Control Valve Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

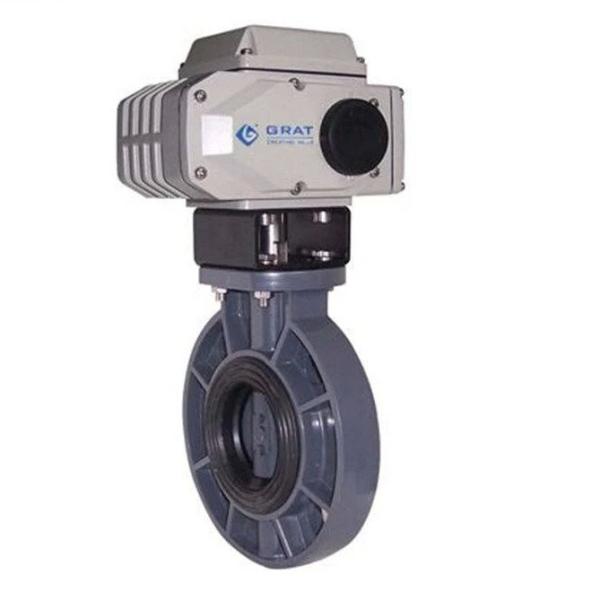

Wafer PVC Plastic Electric Motor Operated Butterfly Valve
Product Description:
Wafer PVC Plastic Electric Motor Operated Butterfly Valve/IP67/Soft Sealed
Description:
UPVC electric butterfly valve serves as a reliable solution for switching, regulating, and isolating a
wide range of fluid mediums, especially in environments with significant corrosive elements and
moderate pressure. Constructed from lightweight yet durable materials, this valve is extensively
used in systems involving potable water, drainage, seawater, and chemical processing, providing
exceptional resistance to corrosion.
Specification:
| Power supply | AC220V |
| Valve size | DN50-300 |
| Medium Temp | -15ºC ~ 60ºC(no congelation) |
| Ambient Temp | -25ºC ~ 55ºC |
| Body ratings | 1.0Mpa |
| Action mode | Switch to cut off,0 ~ 90°gyration |
| Action time | 4153060S |
| Protector | Overheat protection |
| Body connections | Wafer, flange |
| Body material | UPVC |
| Seal material | PTFEEPDM |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Water, air, oil, corrosive chemical liquid |
| Protection level | IP67 |
| Installation mode | Install it in any angle(Prefer to horizontal or inclined installation to extend service life.) |
Installation Diagram
Valve size mm | Size (mm) | ||||||||
| Length | D | D1-ANSI | D1-JIS | D1-DIN | H | n-d-ANSI | n-d-JIS | n-d-DIN | |
| 50 | 43 | 56.5 | 120.39 | 120 | 125 | 103 | 4-19 | 4-19 | 4-18 |
| 65 | 47.5 | 70 | 139.44 | 140 | 145 | 113 | 4-19 | 4-19 | 4-18 |
| 85 | 47.5 | 79 | 152.4 | 150 | 160 | 115 | 4-19 | 4-19 | 4-18 |
| 100 | 57.2 | 103 | 190.5 | 175 | 180 | 135 | 8-19 | 8-19 | 8-18 |
| 125 | 66 | 130 | 216 | 210 | 210 | 165 | 8-22 | 8-23 | 8-18 |
| 150 | 74 | 151 | 241.55 | 240 | 240 | 177 | 8-22 | 8-23 | 8-23 |
| 200 | 87.5 | 200 | 298.5 | 290 | 295 | 210 | 8-22 | 8-23 | 8-23 |
| 250 | 110 | 255 | 362 | 355 | 350 | 240 | 12-25 | 12-25 | 12-23 |
| 300 | 129 | 311 | 432 | 400 | 400 | 297 | 12-25 | 12-25 | 12-23 |
Note: Without standard accessories, above size is for references only, please consult with our technology
department for the latest parameters due to product improvement and
technology innovation.
Main properties specification
Valve size DN | 50-300(mm) | |||
Body ratings | PN (Mpa) | 0.6 | 1.0 | 1.6 |
Test properties pressure | Strength test | 0.9 | 1.5 | 2.4 |
Seal test | 0.66 | 1.1 | 1.76 | |
Air seal test | 0.6 | 0.6 | 0.6 | |
Control Diagram
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
|
