High Axial Load J-903-A Cylindrical Roller Thrust Bearings Thicked Steel
Bearing Specification :
FSK BEARING Model Number | J-903-A |
| Part Name | Cylindrical Roller Bearing |
| Material | Gcr15 Chrome steel |
| Cage | Brass Cage |
| Row | Single Row |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 609.702*812.800*101.727 mm |
| Weight / Mass ( KG ) | 89.6 KG |
| HS Code | 8482800000 |

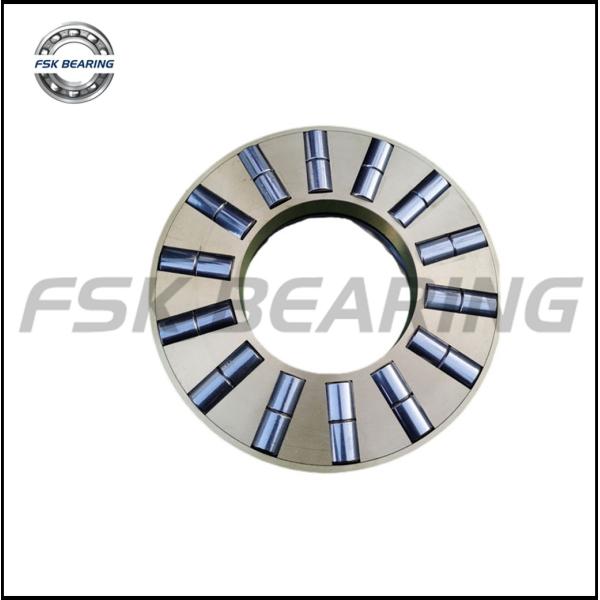

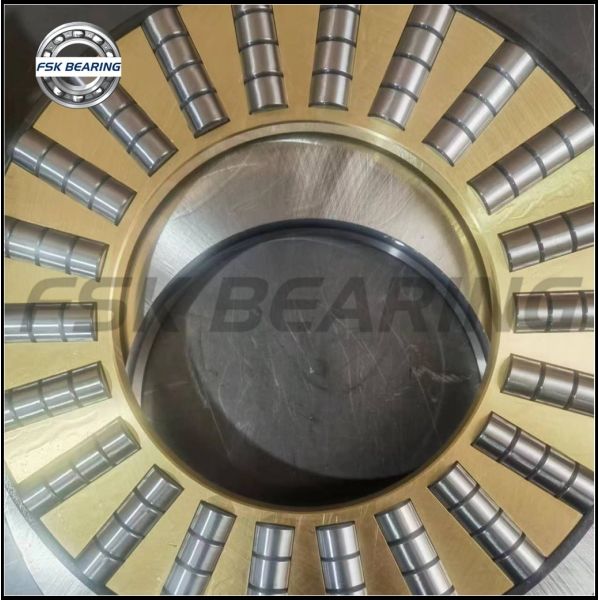

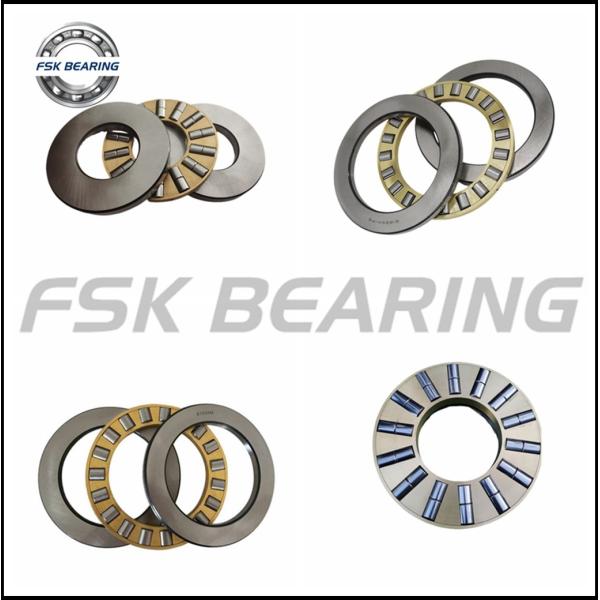

Bearings Detailed Pictures
Same Series Bearing We Do:
| Part Number | d - Bore Diameter | D - Bearing O.D. | T - Bearing Width | T1 - Bearing Width | d1 - Large Bore I.D. | D1 - Small Diameter O.D. | Static Load Rating | Dynamic Load Rating |
| 35TP113 | 88.900 mm | 132.558 mm 5.2188 in | 25.4 mm 1 in | 7.14 mm 0.281 in | 90.49 mm 3.562 in | 130.97 mm5.156 in | 700000 N146200 lbf | 200000 N37000 lbf |
| S-4789-A | 174.625 mm | 279.400 mm 11.0000 in | 69.85 mm 2.75 in | 19.05 mm 0.75 in | 174.63 mm 6.875 in | 279.4 mm 11 in | 1400000 N315400 lbf | 1156000 N260000 lbf |
| 90TP139 | 228.600 mm | 355.6 mm 14 in | 76.2 mm 3 in | 20.64 mm 0.812 in | 230.98 mm 9.094 in | 353.22 mm 13.906 in | 2300000 N515700 lbf | 1500000 N335900 lbf |
| 90TP140 | 228.600 mm | 406.400 mm16.0000 in | 76.2 mm 3 in | 20.64 mm 0.812 in | 230.98 mm 9.094 in | 404.02 mm 15.906 in | 3000000 N683500 lbf | 1900000 N425600 lbf |
| C-8360-A | 238.125 mm | 307.975 mm 12.1250 in | 38.1 mm 1.5 in | 11.11 mm 0.438 in | 238.51 mm 9.39 in | 306.39 mm 12.063 in | 3700000 N827600 lbf | 440000 N99000 lbf |
| F-2658-B | 280 mm | 375.4 mm 14.7795 in | 53.01 mm 2.087 in | 15.39 mm 0.606 in | 283.01 mm 11.142 in | 374.6 mm1 4.748 in | 4800000 N1073500 lbf | 953000 N214320 lbf |
| S-4790-A | 330.200 mm | 495.300 mm 19.5000 in | 88.9 mm 3.5 in | 24.51 mm 0.965 in | 330.2 mm 13 in | 495.3 mm 19.5 in | 4600000 N1032600 lbf | 2575000 N579000 lbf |
| S-4750-A | 431.800 mm | 571.500 mm 22.5000 in | 88.9 mm 3.5 in | 24.51 mm 0.965 in | 431.8 mm 17 in | 571.5 mm 22.5 in | 4500000 N1016000 lbf | 2509000 N564000 lbf |
| E-2192-A | 431.800 mm | 609.600 mm 24.0000 in | 101.6 mm 4 in | 25.4 mm 1 in | 432.44 mm 17.025 in | 609.47 mm 23.995 in | 6900000 N1558900 lbf | 3363000 N756000 lbf |
| S-4791-A | 482.600 mm | 673.100 mm 26.5000 in | 114.3 mm 4.5 in | 31.75 mm 1.25 in | 482.6 mm 19 in | 673.1 mm 19 in | 8500000 N1905400 lbf | 3741000 N841000 lbf |
| B-3653-B | 527.101 mm | 635.127 mm 25.005 in | 44.45 mm 1.75 in | 11.13 mm 0.438 in | 527.1 mm 20.752 in | 635.13 mm 25.005 in | 10800000 N2423100 lbf | 970000 N218120 lbf |
| B-9054-C | 572 mm | 763 mm 30.0394 in | 115 mm 4.5276 in | 31.5 mm 1.24 in | 572 mm 22.52 in | 763 mm30.039 in | 12800000 N2888000 lbf | 3600000 N809300 lbf |
| 240TP177 | 609.600 mm | 812.800 mm 32.0000 in | 139.7 mm 5.5 in | 38.1 mm 1.5 in | 612.8 mm 24.125 in | 809.6 mm 21.875 in | 21600000 N4846200 lbf | 4660000 N1047000 lbf |
| 240TP178 | 609.600 mm | 863.6 mm 34 in | 139.7 mm 5.5 in | 38.1 mm1.5 in | 612.8 mm 24.125 in | 860.4 mm 33.875 in | 13400000 N3009000 lbf | 5700000 N1282100 lbf |
| J-903-A | 609.702 mm | 812.800 mm 32.0000 in | 101.727 mm 4.005 in | 27.79 mm 1.094 in | 609.6 mm 24 in | 812.8 mm 32 in | 16700000 N3753400 lbf | 3690000 N829810 lbf |
| S-4792-A | 622.3 mm | 812.800 mm 32.0000 in | 114.3 mm 4.5 in | 28.58 mm 1.125 in | 622.3 mm 24.5 in | 812.8 mm 32 in | 11861000 N2667000 lbf | 5111000 N1149000 lbf |
| S-4745-A | 695.579 mm | 964.514 mm 37.973 in | 127.127 mm 5.005 in | 31.75 mm 1.25 in | 695.58 mm 27.385 in | 964.51 mm 37.973 in | 14992000 N3371000 lbf | 6645000 N1494000 lbf |
| E-2408-A | 711.2 mm | 914.400 mm 36.0000 in | 114.3 mm 4.5 in | 29.36 mm 1.156 in | 711.84 mm 28.025 in | 914.4 mm 36 in | 16241000 N3651000 lbf | 4280000 N963100 lbf |
| E-2359-A | 812.8 mm | 1016 mm 40.0000 in | 127 mm 5 in | 31.75 mm 1.25 in | 813.44 mm 32.025 in | 1015.75 mm 39.99 in | 20400000 N4580700 lbf | 6672000 N1500000 lbf |
| E-2268-A | 876.3 mm | 1117.6 mm 44 in | 139.7 mm 5.5 in | 36.55 mm 1.439 in | 876.3 mm 34.5 in | 1117.6 mm 44 in | 33100000 N7434800 lbf | 5640000 N1266900 lbf |
| E-2311-A | 940.308 mm | 1219.708 mm 48.02 in | 124.587 mm 4.905 in | 40.87 mm 1.609 in | 939.7 mm 36.996 in | 1219.2 mm 48 in | 18567000 N4174000 lbf | 5710000 N1283050 lbf |
| P-2109-A | 978.54 mm | 1370.33 mm 53.95 in | 191 mm 7.52 in | 57.4 mm 2.26 in | 978.54 mm 38.525 in | 1370.33 mm 53.95 in | 22400000 N5045900 lbf | 12160000 N2734300 lbf |
Our Other Hot Sale Bearings
| INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
| Inched | ||
| Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
| Miniature Ball Bearing | ||
| Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
| Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
| Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
| Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
| Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
| Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
| Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
| Needle Roller Bearing | Full types of needle roller bearings | |
| Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
Our Company Photo:
About Us:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10
years.300 bearing types,15 million sets items ar produced yearly
and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one
hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as
Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball
Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as
your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more
reasonable price all over the world. Customers could receive good
quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your
drawing requests and offer in-house test report by professional
engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and
experienced engineers for more than 10 years.We test bearings one
by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than
12hours a day, 7 days a week offering you different bearing
solutions for you.
We are glad to receive any comments from all the world by email,by
call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
 | Q:Are you a trader or manufacturer? |
| A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
| Q:What is your delivery time? | |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
| Q:Can i request sample? | |
| A:Of course , sample is ok and we can give you a sample by free. | |
| Q:What's the shipping way? | |
| A:According to YOUR demands. | |
| Q:Can you accept OEM or ODM? | |
| A:Yes, of course. logo is also acceptable. | |
| Q:How is quality controlled? | |
| A:Quality is the key ! | |
| Our QC team and engineer team works through all the process from an order placed to shipped. | |
| Q: Can I come for a visit? | |
| You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
High Axial Load J-903-A Cylindrical Roller Thrust Bearings Thicked Steel, Get Cheap Price From China Bearing Factory Now !
