| Brand Name: | OEM |
| Model Number: | SA8230-32470 SA823032470 |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | T/T, D/P, D/A,Western Union, L/C, MoneyGram |
| Supply Ability: | 100-2000 |
| Delivery Time: | 3-7 working days |
| Packaging Details: | Wooden box for heavy parts, paper carton for light parts |
| Category: | Travel Gearbox |
| Machine model: | EC135B EC140 EC140B |
| Application: | Excavator |
| Product name: | Planetary Gear |
| Part number: | SA8230-32470 SA823032470 |
| Packing: | Standard Export Carton |
| Company Info. |
| Guangzhou Anto Machinery Parts Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Name | Planetary Gear |
| Parts No | SA8230-32470 SA823032470 |
| Machine Model | EC135B EC140 EC140B |
| Category | Travel Gearbox |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| SA8230-33500 Planetary Gear |
| Volvo.Heavy |
| VOE23897 Planetary Axle |
| Volvo.Heavy |
| VOE23820 Planetary Axle |
| L50B/L50C VOLVO BM, L50C, L50D, L50E |
| VOE23836 Planetary Axle |
| L50B/L50C VOLVO BM, L50C, L50D, L50E |
| VOE23819 Planetary Axle |
| L50B/L50C VOLVO BM, L50C, L50D, L50E |
| ZM2905721 Planetary gear |
| ZL302C |
| RM13802160 Planetary Gear |
| RW195D |
| RM20325767 Planetary gear |
| PF3172/PF3200 |
| RM20924288 Planetary gear |
| P7110, P7170, PF161, PF2181, PF3172/PF3200, PF4410, PF6110, PF6160/PF6170 |
| RM70710769 Planetary gear |
| DD90 |
| RM20340964 Planetary gear |
| PF2181 |

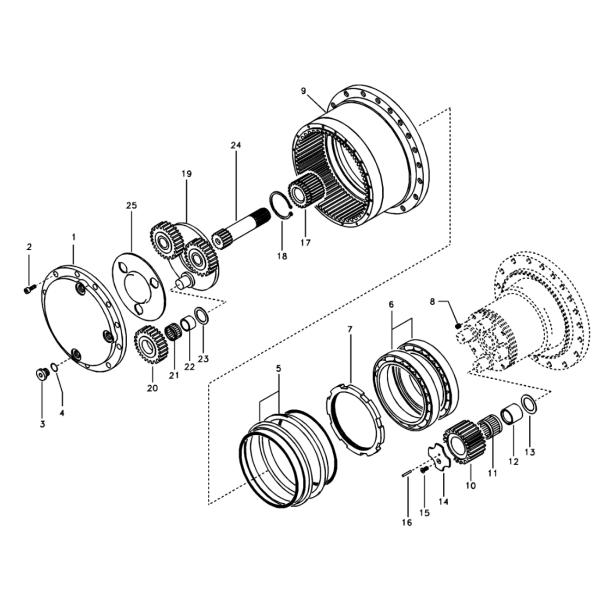

| Pos. | Part No | Qty | Parts name | Comments |
| SA8230-33470 | [1] | Travel gearbox | ||
| 1 | SA8230-32570 | [1] | Cover | |
| 2 | SA8230-33210 | [12] | Bolt | |
| 3 | SA8230-32590 | [3] | Plug | |
| 4 | VOE983524 | [3] | O-ring | |
| 5 | [2] | Seal | ||
| 6 | SA8230-32450 | [2] | Bearing | |
| 7 | SA8230-32580 | [1] | Nut | |
| 8 | SA8230-32610 | [4] | Plug | |
| 9 | [1] | Housing | ||
| 10 | SA8230-32470 | [4] | Planetary Gear | |
| 11 | SA8230-32430 | [4] | Needle Bearing | |
| 12 | SA8230-32550 | [4] | Race | |
| 13 | VOE14534292 | [4] | Washer | |
| 14 | SA8230-32500 | [4] | Pressure Plate | |
| 15 | SA8230-32530 | [4] | Screw | |
| 16 | SA8230-33270 | [4] | Spring Pin | |
| 17 | SA8230-32460 | [1] | Gear | |
| 18 | SA8230-32520 | [1] | Washer | |
| 19 | SA8230-33480 | [1] | Holder | |
| 20 | SA8230-33500 | [3] | Planetary Gear | |
| 21 | SA8230-32440 | [3] | Needle Bearing | |
| 22 | SA8230-32560 | [3] | Race | |
| 23 | SA8230-32490 | [3] | Washer | |
| 24 | SA8230-33490 | [1] | Gear | |
| 25 | SA8230-33540 | [1] | Plate | |
| 100 | SA8230-32620 | [1] | Sealing Kit | INCL 4,5 |
| 200 | VOE14526218 | [1] | Overhaul kit | INCL 11,12,13,16,18, 21,22,23 |

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor,
Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade
experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
|
