FIRESTONE W01-358-7274 Air Suspension Rolled Plate Assembly 3/4 NPT AIr Inlet

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 3H7274
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Brand: AIRSUSTECH
Item Number: 3H7274
Alternative Items: W01-358-7823
Minimum Height: 4.6 Inches
Maximum Height: 18 Inches
Nuts Type: 1/2 Blind Nuts
Quality Assurance: One Year
Air Hole: 3/4 NPT
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FIRESTONE W01-358-7274 Air Suspension Rolled Plate Assembly 3/4 NPT AIr Inlet

FIRESTONE W01-358-7274 Air Suspension Rolled Plate Assembly 3/4 NPT AIr Inlet

Product Description

At Suspension Air Springs, we take pride in providing high-quality air shocks that are designed to meet the needs of all car owners. Our air shocks are designed with advanced technology and are engineered to provide superior performance in a wide range of applications. Our air shocks are designed to provide superior load capacity and durability, while still providing a comfortable and safe ride. With our air shocks, you can rest assured that your vehicle will have a smoother and safer ride, no matter what the conditions are.


3H7274 Specifications


Cover Plate
Top Cover Plate Diameter: 17.75 in.
Screw Center Distance of Top Cover Plate: 16.50 in.
Bottom Cover Plate Diameter: 17.75 in.
Screw Center Distance of Bottom Cover Plate: 16.50 in.

Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 3/8-24 bolts
Bottom Cover Plate Screw(Nut) Tooth: 3/8-24 bolts

Blind Nuts Type: 1/2

Gas Hole/Air Inlet/Air Fitting
Gas Hole: 3/4 NPT
Rubber Bellow
Rubber Bellow Max. Diameter: 20.5 in.
Minimum Height: 4.6 in.
Maximum Height: 18 in.

3H7274 Technical Parameters


Dynamic Characteristics at 13.0 in. Design Height
Volume @ 100 PSIG = 3,073 in3
Natural Frequency

Gage Pressure

(PSIG)

Load (Ibs.)Spring Rate(Ibs./in.)CPMHZ
408,0101,744881.46
6012,0302,104781.31
8016,2702,784781.30
10020,5803,624791.31

Firetone Style 323, We Can Supply


Rolled plate assembly, 1/2 blind nuts, 3/4 NPT
W01-358-7274, W01 358 7274, W013587274, WO1-358-7274, WO1 358 7274, WO13587274

Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

W01-358-7823, W01 358 7823, W013587823, WO1-358-7823, WO1 358 7823, WO13587823
Rubber bellows only
W01-358-7921, W01 358 7921, W013587921, WO1-358-7921, WO1 358 7921, WO1358792

Firestone Style 324 With High Strength Bellows


Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7829, W01 358 7829, W013587829
WO1-358-7829, WO1 358 7829, WO13587829
Rubber bellows only
W01-358-0324, W01 358 0324, W013580324
WO1-358-0324, WO1 358 0324, WO13580324

Maintenance of the air springs, Vehicle Check-List


1.Check the air lines and devices of leakage and that they turns freely.
2.Check the bellows bearing for damage, correct fastening, deformation, sharp edges.
3.Check the shock absorbers for operation and impermeability as well as tightness and bearing.
4.Periodically, check nuts and bolts for proper torque. For specific recommendations see manufacturer's manual.
5.Check axle suspension, trailing arms and rods for wear.
6.Check height control valve to see that it is functioning properly. A properly maintained valve will save unneeded maintenance expense.
7.Routine inspection of all of the above according to manufacturer's instructions, will extend the life of your vehicle and reduce your overall maintenance expense.

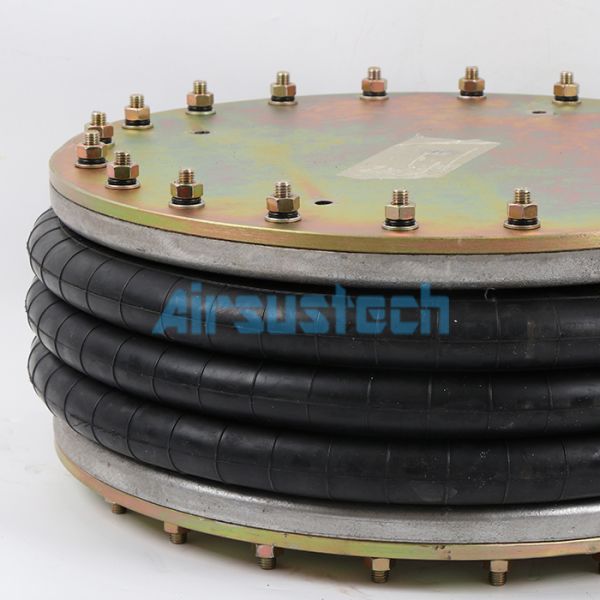

The Related Pictures of 3H7274
