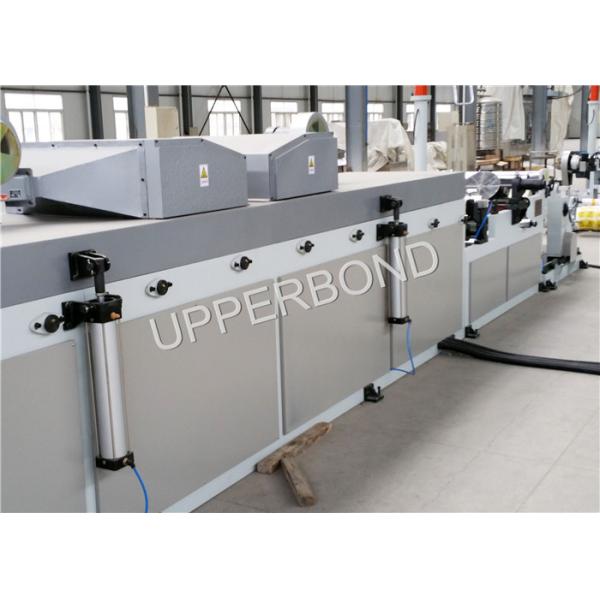

Back Front Embossing and Scuttling Printing Aluminum Foil Composite machine with Drying Function

Back Front Embossing and Scuttling Printing Aluminum Foil Composite machine with Drying Function

Introduction

BFY-650W multi-foil composite machine in China Occupies 80% of the tobacco packaging industry. The device has a monochrome printing paper surface. Foil surface coloring. Coating compound. Drying. Air cooling system and rolling units

Features

The machine has the functions of composite, printing, embossing and scuttling, especially added the back printing mechanism and hot pressing, hot air circulation heating box and large roll and other functions. Structure and performance characteristics are:

1, back printing (printing), composite, printing oiling, embossing, winding continuous completion, can also be used separately;

2, mechanical transmission adopts servo system shaftless transmission, reliable and stable operation;

3, each pressing point action pneumatic execution;

4, the machine can do monochrome back printing (or front printing) on the lining paper, which can improve the anti-counterfeiting ability and competitiveness of the product;

5. Special hot pressing mechanism after composite to improve the surface quality of the product;

6, hot air circulation heating oven, improve the heat utilization rate, increase the equipment running speed;

7, the backward winding mechanism can make the winding diameter reach φ1000mm.

Technical Parameters:

Type of equipment: BFY-650W

Effective working width: 570mm

Suitable material thickness: 0.006-0.014mm foil liner 21-80g/m2

Work wire-speed : 5-80m / min

Maximum unwinding diameter: Φ400mm foil backing Φ1000mm

Maximum rewinding diameter: Φ1000mm

Rolling torque motor: 4Kg.m

The total heating power: 31.8KW

Drive motor power: 5.5KW

Total power: 38KW

Dimensions: (L × W × H) 9640 × 1600 × 27200mm

Total weight: 3.5T

Manipulation Language: English
