21K-70-12180 21K7012180 Dust Seal Fit KOMATSU Excavator PC130 PC150 PC150HD PC150NHD

• 21K-70-12180 21K7012180 Dust Seal Fit KOMATSU Excavator PC130 PC150 PC150HD PC150NHD

• Spec Sheet

• Application

EXCAVATORS

PC130 PC150 PC150HD PC150NHD PC160 PC180 PC180L PC200 PC200CA PC200EL PC200EN PC200LL PC200Z PC210

PC220 PC220LL PC228 PC228US PC228UU PF5 PW150 PW150ES PW160 PW170 PW170ES PW180 PW200 PW210 PW220
OTHER BP500 Komatsu

• More seal parts fit for KOMATSU machinery

707-56-70540 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC240

6211-61-1533 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D140E

6754-21-6230 SEAL, OIL

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380

6754-41-4540 SEAL, VALVE STEM

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA380

707-99-72080 SEAL KIT, HYDRAULIC CYLINDER

PC300, PC350, PC360, PC390, PC390LL

6732-61-6250 SEAL

4D102E, 6D102E, DCA, EGS120, PC200, PC200LL, PC200Z, PC210, PC220, PC220LL, PC250, PC270, PW200, PW220, S4D102E, S6D102E, SAA6D102E, WA320

6141-21-1332 SEAL, REAR CRANK

4D95L, 4D95LE, 4D95S, SAA4D95LE

6221-61-1520 SEAL, WATER PUMP

3D95S, 4D95L, 4D95LE, SAA4D95LE

07145-00085 SEAL,DUST

BA100, D135A, D150A, D155A, D155AX, D355C, D50S, D55S, D61E, D61EX, D61PX, D66S, D68ESS, D85MS, D95S, GC380F, GD40HT, GD755, WA420, WA470

20Y-26-22420 SEAL

BP500, HB205, HB215, PC200, PC210, PC220, PC228, PC228US, PC240, PC270, PC290, PC308

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

6754-41-4541 SEAL, VALVE STEM

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

707-56-70541 SEAL

D85EX, D85MS, HB205, HB215, HD785, HM300, HM400, PC160, PC200, PC220, PC228, PC228US, PC241

6211-61-1534 SEAL, WATER

6D125, 6D125E, HM300, HM350, HM400, PC400, PC450, S6D125, S6D125E, SAA6D125E, SAA6D141E

6754-21-6231 SEAL, OIL

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

6754-41-4541 SEAL, VALVE STEM

D51EX/PX, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290, PW180, PW200, PW220, SAA4D107E, SAA6D107E, WA200, WA200PZ, WA250, WA250PZ, WA320, WA320PZ, WA381

707-99-72081 SEAL KIT, HYDRAULIC CYLINDER

PC300, PC350, PC360, PC390, PC391LL

6732-61-6251 SEAL

4D102E, 6D102E, DCA, EGS120, PC200, PC200LL, PC200Z, PC210, PC220, PC220LL, PC250, PC270, PW200, PW220, S4D102E, S6D102E, SAA6D102E, WA321

6141-21-1333 SEAL, REAR CRANK

4D95L, 4D95LE, 4D95S, SAA4D96LE

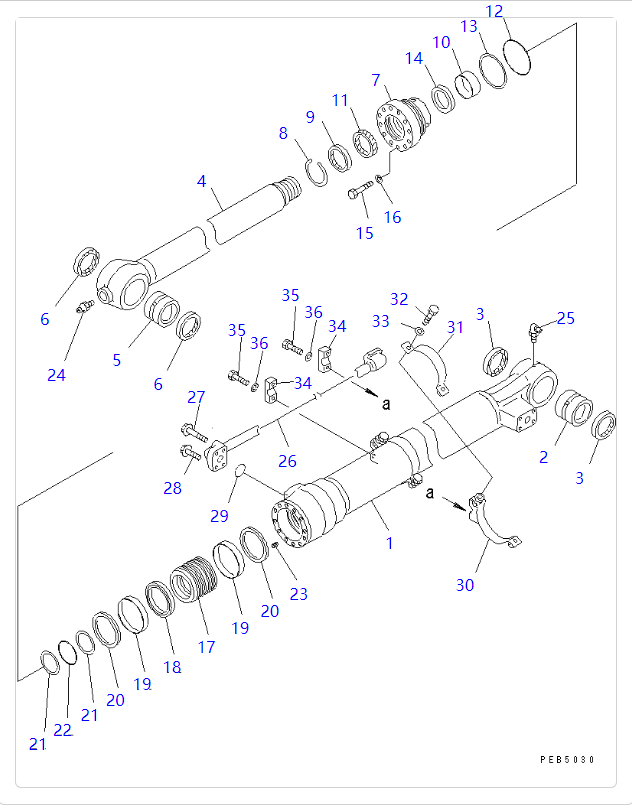

• Parts list diagram

Pos.	Part No	Qty	Parts name	Comments
G-1.	205-63-X7280	[1]	BUCKET CYLINDER G. Komatsu China
			["SN: C10001-UP"]
		[-1]	====================
			|$41.
	205-63-07280	[1]	CYLINDER ASS'Y Komatsu China
			["SN: C10001-UP"] |1.
1.	205-63-71540	[1]	CYLINDER Komatsu China
			["SN: C10001-UP"]
2.	20Y-70-21670	[1]	BUSHING Komatsu China
			["SN: C10001-UP"]
3.	07145-00070	[2]	SEAL,DUST (KIT) Komatsu China	0.034 kg.
			["SN: C10001-UP"]
4.	205-63-71520	[1]	ROD,PISTON Komatsu China
			["SN: C10001-UP"] analogs:["R2056371520"]
5.	707-76-70160	[1]	BUSHING Komatsu	2.13 kg.
			["SN: C10001-UP"]
6.	21K-70-12180	[2]	SEAL,DUST (KIT) Komatsu China	0.05 kg.
			["SN: C10001-UP"] analogs:["20Y7023220"]
7.	707-27-12960	[1]	HEAD,CYLINDER Komatsu China
			["SN: C10001-UP"]
8.	07179-13099	[1]	RING,SNAP Komatsu	0.021 kg.
			["SN: C10001-UP"]
9.	707-56-85510	[1]	SEAL,DUST (KIT) Komatsu	0.044 kg.
			["SN: C10001-UP"] analogs:["0701620858"]
10.	707-52-90610	[1]	BUSHING Komatsu	0.153 kg.
			["SN: C10001-UP"] analogs:["7075290611"]
11.	707-51-85030	[1]	PACKING,ROD (KIT) Komatsu	0.046 kg.
			["SN: C10001-UP"]
12.	07000-15115	[1]	O-RING (KIT) Komatsu China	0.03 kg.
			["SN: C10001-UP"] analogs:["0700005115"]
13.	707-35-91250	[1]	RING,BACK-UP (KIT) Komatsu China
			["SN: C10001-UP"]
14.	707-51-85630	[1]	RING,BUFFER (KIT) Komatsu	0.01 kg.
			["SN: C10001-UP"] analogs:["7075185640"]
15.	01010-81670	[12]	BOLT Komatsu	0.142 kg.
			["SN: C10001-UP"] analogs:["0101061670", "0101031670", "0101051670"]
16.	01643-51645	[12]	WASHER Komatsu	0.021 kg.
			["SN: C10001-UP"]
17.	707-36-12670	[1]	PISTON Komatsu China
			["SN: C10001-UP"]
18.	707-44-12280	[1]	RING,PISTON (KIT) Komatsu	0.1 kg.
			["SN: C10001-UP"]
19.	707-39-12530	[2]	RING,WEAR (KIT) Komatsu	0.035 kg.
			["SN: C10001-UP"]
20.	707-44-12921	[2]	RING Komatsu	0.06 kg.
			["SN: C10001-UP"] analogs:["7074412920"]
21.	707-35-90930	[2]	RING,BACK-UP (KIT) Komatsu China	0.01 kg.
			["SN: C10001-UP"]
22.	07000-15075	[1]	O-RING (KIT) Komatsu	0.009 kg.
			["SN: C10001-UP"]
23.	01310-01216	[1]	SCREW Komatsu	0.02 kg.
			["SN: C10001-UP"] analogs:["0132001216", "0131021216"]
24.	07020-00000	[1]	FITTING,GREASE Komatsu China	0.006 kg.
			["SN: C10001-UP"] analogs:["YM24761020000", "1756731361", "860010009", "070200000", "R0702000000", "0700000000"]
25.	07020-00900	[1]	FITTING,GREASE Komatsu	0.01 kg.
			["SN: C10001-UP"] analogs:["0700000900", "M012443000109", "R0702000900"]
26	205-63-71570	[1]	TUBE Komatsu China
			["SN: C10001-UP"]
27	01435-01055	[2]	BOLT Komatsu	0.04 kg.
			["SN: C10001-UP"]
28	01435-01040	[2]	BOLT Komatsu	0.033 kg.
			["SN: C10001-UP"]
29	07000-13030	[1]	O-RING (KIT) Komatsu	0.001 kg.
			["SN: C10001-UP"] analogs:["37B0915217", "21D0969930"]
30	707-88-87090	[2]	BRACKET Komatsu China
			["SN: C10001-UP"]
31	707-88-87150	[2]	BAND Komatsu China
			["SN: C10001-UP"]
32	01010-51035	[4]	BOLT Komatsu	0.033 kg.
			["SN: C10001-UP"] analogs:["801015556", "0101081035", "01010D1035"]
33	01643-51032	[4]	WASHER Komatsu	0.17 kg.
			["SN: C10001-UP"] analogs:["R0164351032"]
34	707-88-13590	[2]	CLAMP Komatsu China
			["SN: C10001-UP"]
35	01010-51040	[4]	BOLT Komatsu	0.288 kg.
			["SN: C10001-UP"] analogs:["0101081040"]
36	01643-31032	[4]	WASHER Komatsu	0.054 kg.
			["SN: C10001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]

• Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

• Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts catalog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
