6209-41-4110 6209414110 Intake Valve Fit KOMATSU Excavator PC200 PC210 PC220 PC250

6209-41-4110 6209414110 Intake Valve Fit KOMATSU Excavator PC200 PC210 PC220 PC250

Spec Sheet

Product name	Intake valve
Part number	6209-41-4110 6209414110
Model	PC200 PC210 PC220 PC250
egory group	Excavator engine parts
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

Appliion

ENGINES S6D95L SA6D95L SAA6D95LE
EXCAVATORS PC200 PC210 PC220 PC250 Komatsu

More valve parts fit for KOMATSU machinery

20Y-60-22262 VALVE ASS’Y

BR200T, BR550JG, PC200, PC228, PC228US, PC400, PC450

07700-51240 VALVE

PC200

07700-10240 VALVE

PC200, PC220

ND447500-0210 VALVE

D155A, D155AX, D155C, D355A, D375A, D41E, D41P, D60P, D65E, D65EX, D66S, D75S, D85A, D85C, D85ESS, PC200, PC210, PC220, PC230

207-60-61201 VALVE ASS'Y

PC200, PC200LL, PC200SC, PC210, PC220, PC228, PC228US, PC230, PC250, PC300, PC300SC, PC340, PC350, PC380, PC400

206-60-51102 VALVE ASS'Y

BA100, BR120T, PC200, PC200LL, PC200SC, PC210, PC220, PC220LL, PC230, PC250, PC270, PC300, PC300SC, PC340, PC350, PC380, PC400

20Y-60-21700 VALVE ASS'Y

PC200, PC200CA, PC210, PC228, PC228US, PC228UU, PC230

20Y-62-27340 VALVE ASS'Y

PC200, PC200CA, PC210, PC220, PC240, PC250HD, PC290, PW200, PW220

20Y-62-27350 VALVE ASS'Y

PC200, PC200CA, PC210, PC220, PC240, PC250HD, PC290

20Y-977-K220 VALVE

PC200, PC210, PC240, PC290, PC340, PC380, PC450, PW130ES, PW150ES, PW170ES

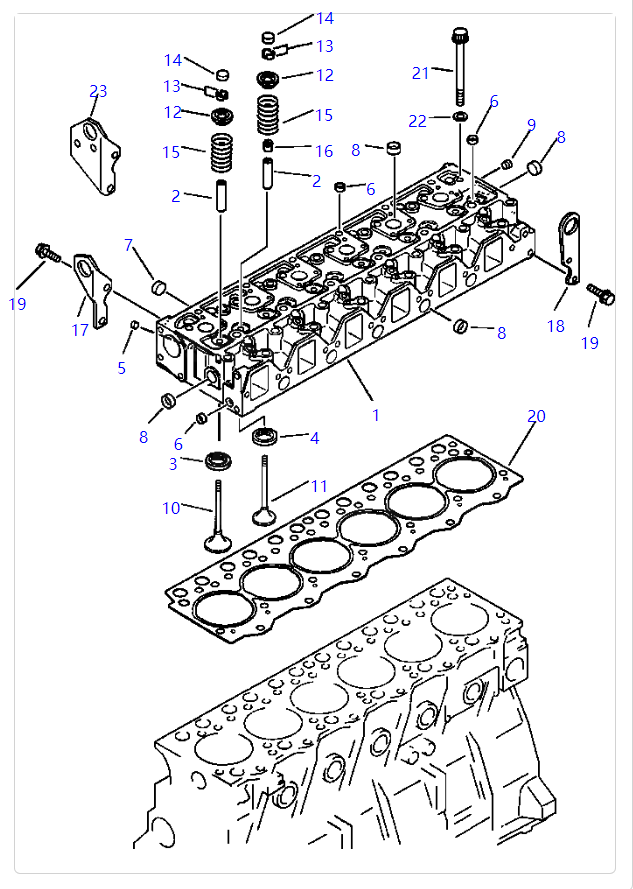

Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	6209-11-1100	[1]	CYLINDER HEAD ASSEMBLY, WITHOUT VALVE Komatsu OEM	45 kg.
			\|$0.
1.	NSS	[1]	HEAD, CYLINDER Komatsu China

2.	6204-19-1310	[12]	GUIDE, VALVE Komatsu OEM	0.026 kg.

3.	6209-11-1430	[6]	SEAT, INTAKE VALVE (STANDARD) Komatsu	0.03 kg.

3.	6209-19-1430	[6]	SEAT, INTAKE VALVE (OVER SIZE, 0.25mm) Komatsu China

3.	6209-18-1430	[6]	SEAT, INTAKE VALVE (OVER SIZE, 0.50mm) Komatsu China

4.	6207-11-1440	[6]	SEAT, EXHAUST VALVE (STANDARD) Komatsu OEM	0.018 kg.

4.	6207-19-1440	[6]	SEAT, EXHAUST VALVE (OVER SIZE, 0.25mm) Komatsu China

4.	6207-18-1440	[6]	SEAT, EXHAUST VALVE (OVER SIZE, 0.50mm) Komatsu China

5.	07046-41008	[6]	PLUG Komatsu	0.001 kg.

6.	07046-41810	[13]	PLUG Komatsu	0.004 kg.

7.	07046-42216	[5]	PLUG Komatsu	0.008 kg.
			analogs:["0704622216"]
8.	07046-42516	[15]	PLUG Komatsu OEM	0.01 kg.

9.	02720-40104	[1]	PLUG Komatsu	0.003 kg.

10	6209-41-4110	[6]	VALVE, INTAKE Komatsu	0.135 kg.

11	6209-41-4210	[6]	VALVE, EXHAUST Komatsu China	0.112 kg.

12	6204-41-4510	[12]	SEAT, SPRING Komatsu China	0.025 kg.

13	6204-41-4520	[24]	COLLET Komatsu	0.01 kg.

14	6204-41-4550	[12]	CAP, VALVE Komatsu	0.02 kg.

15	6204-41-4431	[12]	SPRING, VALVE Komatsu OEM	0.054 kg.

16	6204-41-4540	[6]	SEAL, VALVE Komatsu China	0.01 kg.
			analogs:["6204415450"]
17	6206-11-1930	[1]	HANGER, FRONT Komatsu China
			analogs:["6204111930"]
18	6206-11-1910	[1]	HANGER, REAR Komatsu China
			analogs:["6207151980"]
19	01435-01020	[4]	BOLT Komatsu	0.023 kg.
			analogs:["0143521020"]
20	6207-11-1822	[1]	GASKET, HEAD Komatsu OEM	0.5 kg.
			analogs:["6206111830", "6206111810", "6206111812", "6207111821", "6207111810"]
20	6207-11-1821	[1]	GASKET, HEAD Komatsu OEM	0.5 kg.
			analogs:["6206111830", "6206111810", "6206111812", "6207111822", "6207111810"]
21	6204-13-1610	[25]	BOLT, HEAD Komatsu	0.13 kg.
			analogs:["6142111611", "6142111610"]
22	01643-51232	[25]	WASHER Komatsu	0.024 kg.

22	01643-31232	[6]	WASHER Komatsu	0.027 kg.
			analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
23	6207-11-1910	[1]	HANGER, FRONT Komatsu	0.632 kg.

Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
