W01-358-7772 Firestone Double Convoluted Air Suspension With Flange Ring Air Bag

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 2H7772
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Manufacturer: AIRSUSTECH
Model NO.: 2H7772
OEM Number: W01-358-5126
Minimum Height: 3.5 Inches
Maximum Height: 12 Inches
Condition: 100% Brand New
orking Temperature: -40℃+70℃
Production Process: Vulcanization
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

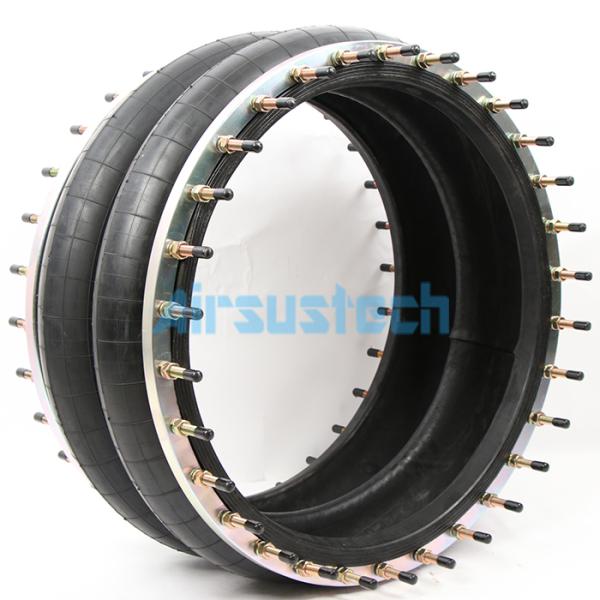

W01-358-7772 Firestone Double Convoluted Air Suspension With Flange Ring Air Bag

W01-358-7772 Firestone Double Convoluted Air Suspension With Flange Ring Air Bag


Product Specifications


Cover Plate
Top Cover Plate Diameter23.64 In.
Screw Center Distance of Top Cover Plate22 In.
Bottom Cover Plate Diameter23.64 In.
Screw Center Distance of Bottom Cover Plate22 In.
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth24×3/8
Bottom Cover Plate Screw(Nut) Tooth24×3/8
Rubber Bellow
Rubber Bellow Max. Dia.26 In.
Minimum Height3.5 In.
Maximum Height12 In.

Product Technical Data


AIRMOUNT ISOLATOR

Design Height

9.5

Load (at Design Height) at: 40 psig (pounds)

13290

Load (at Design Height) at: 60 psig (pounds)

20390

Load (at Design Height) at: 80 psig (pounds)

27330

Natural Frequency (@80 psig) (cpm)

93

% of Isolation at Forced Frequency 400 CPM

94.2

% of Isolation at Forced Frequency 800 CPM

98.6

% of Isolation at Forced Frequency 1500 CPM

99.6


Parts Interchanges


AIRSUSTECH Air Spring

2H630262-558

Firestone Air Spring

W01-358-7772, W01 358 7772, W013587772

WO1-358-7772, WO1 358 7772, WO13587772

Firestone Air Spring
W01-358-7775, W01 358 7775, W013587775

WO1-358-7775, WO1 358 7775, WO13587775

Firestone Air Spring
W01-358-5126, W01 358 5126, W013585126

WO1-358-5126, WO1 358 5126, WO13585126


Flange connection type of air spring model comparison table
GUOMAT NO.Contitech NO.GUOMAT NO.Contitech NO.
FS22-3DICRFS 22-3 DI CRFS960-12RSFS 960-12 RS
FS44-5DICRFS 44-5 DI CRFS1330-11RSFS 1330-11 RS
FS76-7DICRFS 76-7 DI CRFS1710-12RSFS 1710-12 RS
FS76-7DSCRFS 76-7 DS CRFS2870-16RSFS 2870-16 RS
FS138-8DSFS 138-8 DSFS5450-16RSFS 5450-16 RS
FS210-10DSFS 210-10 DSFD960-22RSFD 960-22 RS
FS412-10DSFS 412-10 DSFD1120-30RIFD 1120-30 RI
FS614-13DSFS 614-13 DSFD1330-25RSFD 1330-25 RS
FS816-15DSFS 816-15 DSFD1710-25RSFD 1710-25 RS
FD22-4DICRFD 22-4 DI CRFD1730-40RIFD 1730-40 RI
FD44-10DICRFD 44-10 DI CRFD2380-24RSFD 2380-24 RS
FD76-14DICRFD 76-14 DI CRFD2470-40RIFD 2470-40 RI
FD76-14DSCRFD 76-14 DS CRFD2870-30RSFD 2870-30 RS
FD138-18DSFD 138-18 DSFD5450-28RSFD 5450-28 RS
FD209-21DSFD 209-21 DSFT960-34RSFT 960-34 RS
FD210-22DSFD 210-22 DSFT1330-35RSFT 1330-35 RS
FD412-18DSFD 412-18 DSFT1710-38RSFT 1710-38 RS
FD614-26DSFD 614-26 DSFT2870-45RSFT 2870-45 RS
FD816-30DSFD 816-30 DSFT5450-44RSFT 5450-44 RS
FT22-6DICRFT 22-6 DI CR FT44-15DICR FT 44-15 DI CR
FT76-20DICRFT 76-20 DI CR FT614-36DS FT 614-36 DS
FT76-20DSCRFT 76-20 DS CR FT412-32DS FT 412-32 DS
FT138-26DSFT 138-26 DS FT210-32DS FT 210-32 DS

FAQ


Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.


Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.


Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world


Detailed Pictures of AIRSUSTECH Air Spring
