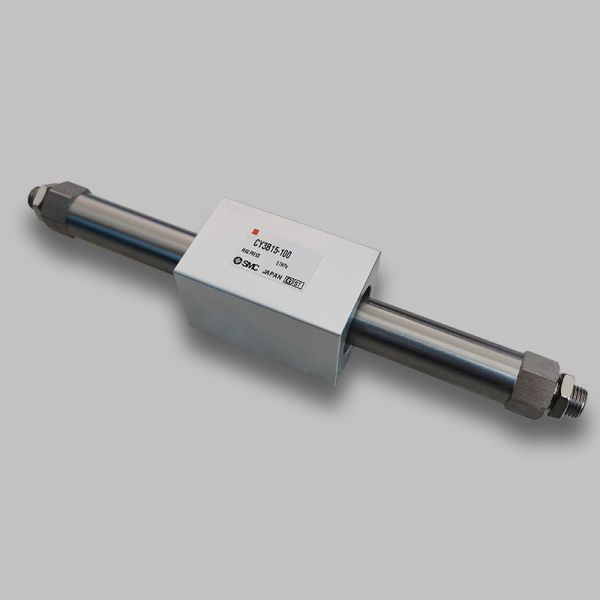

Precision Industrial Non Lube Piston Pneumatic Cylinder CY3B20 - 100/200/300/400/500/../2000

Product Description:

There are several important aspects that characterize the CY3B magnetic coupling rodless cylinder:

Some of the basic parameters of the cylinder include:

• Cylinder Diameter: Sizes such as 25mm, 32mm, etc are available.
• Journey: Examples include 1693mm, 300mm, etc.
• Action Mode: The cylinder is double acting.
• Fluid used: The cylinder uses air as the fluid.
• Buffer Form: Rubber buffer.
• Pipe Connection Diameter: 1/8 inch.
• Installation Methods: The cylinder can be installed horizontally, inclined, and vertically.
• Minimum Operating Pressure: 0.15MPa.
• Maximum Operating Pressure: 0.7MPa.
• Guaranteed Pressure Resistance: 1.05MPa.
• Environmental Temperature: -10 ℃~60 ℃.
• Using Piston Speed: 50-500mm/s.

Some of the performance characteristics of the CY3B magnetic coupling rodless cylinder include:

• Direct Load Installation: The cylinder is able to directly install loads with high holding force.
• Light Weight and Simple Structure: The main body of the cylinder is made of all aluminum alloy, and imported seals are used for strong reliability.
• Excellent Sealing Performance: The piston chamber is separated from the slider to prevent dust and dirt from entering the system, extending its service life.
• Smooth Operation: The cylinder is equipped with buffering devices at both ends, ensuring smooth and impact-free reversing action, avoiding mechanical damage.
• Space-Saving: The cylinder takes up less space than regular cylinders and has a larger stroke than regular cylinders.
• Built-in Magnetic Ring: The cylinder can install magnetic switches and has smooth sliding.

Technical Parameters:

CY3B rodless cylinder, CY3B rodless cylinder pneumatic magnetic coupling type, CY3B rodless cylinder pneumatic magnetic coupling type

Applications:

The Magnetically Coupled Rodless Cylinder CY3B Series is a versatile product that can be used in a variety of applications, including but not limited to:

• Automotive manufacturing
• Material handling
• Packaging machinery
• Printing machinery
• Textile machinery

With a minimum order quantity of 1 and a negotiable price, the CY3B rodless cylinder is accessible to businesses of all sizes. The packaging details can be customized according to the client's requirements, ensuring that the product arrives safely and securely. The delivery time is between 1-7 workdays after payment, and payment terms include T/T, Western Union, and PayPal. With a supply ability of up to 5000 pieces per month, businesses can rely on this product's availability.

The product's operating temperature ranges from -10 to 60°C, making it ideal for use in various environments. The Magnetically Coupled Rodless Cylinder CY3B Series is an excellent choice for industries that require a reliable and efficient pneumatic cylinder.

Packing and Shipping:

Product Packaging for Piston Pneumatic Cylinder:

• The piston pneumatic cylinder will be securely packed in a cardboard box.
• The box will be sealed with packing tape to prevent any damage during shipping.
• The product will be accompanied by an instruction manual for installation and maintenance.

Shipping Information for Piston Pneumatic Cylinder:

• We offer free shipping within the United States.
• For international shipping, additional charges will apply.
• The product will be shipped within 2-3 business days of order confirmation.
• Customers will receive a tracking number via email once the product has been shipped.
