Firestone Bellows Actuator W01-M58-6374 Air Suspension For Industrial Air Spring

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 1B6910-3/4
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Product NO.: 1B6910-3/4
Contitech: FS 200-10
Design Height: 110 MM
Sample: Available
Air Hole: G 3/4
Nut Type: 2×M8
Product Type: Air Spring/Air Suspension
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Firestone Bellows Actuator W01-M58-6374 Air Suspension For Industrial Air Spring

Firestone Bellows Actuator W01-M58-6374 Air Suspension For Industrial Air Spring


Product Description
Air springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.

Product Specifications

Bottom Plate AlignmentParallel
Bottom Plate Center To Center Diameter89 mm
Bottom Plate Diameter160 mm
Bottom Plate Hole Quantity2
Bottom Plate TypeSteel
Top Plate AlignmentParallel
Top Plate Center To Center Diameter89 mm
Top Plate Diameter160 mm
Top Plate Hole Quantity3
Top Plate TypeSteel
Maximum Diameter220 mm
Design Height110 mm
Spring TypeSingle Convoluted
Air InletG 3/4
Nut/Nuts Type2×M8×1.25


Other OEM Number

Firestone

W01-M58-6374, W01 M58 6374, W01M586374

WO1-M58-6374, WO1 M58 6374, WO1M586374

Contitech

FS 200-10, FS 200 10, FS20010

Phoenix

SP 1B 12, SP1B 12, SP1B12, SP 1B12

Dunlop(FR)

9 1/4x1 S09101

Bosch

822419004

Festo

EB-250-85, EB 250 85, EB25085

Norgren

PM/31091(8 1/4x1), PM 31091(8 1/4x1), PM31091(8 1/4x1)


Air Bellows Characteristics

  • Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
  • Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
  • They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
  • pneumatic cylinders.
  • All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
  • The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
  • conditions.
  • Air bellows are suitable for vibration applications i.e. device feeders at high frequency.

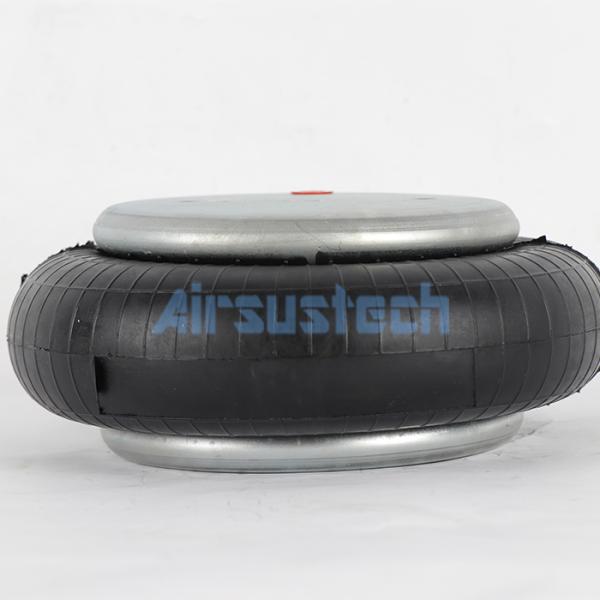

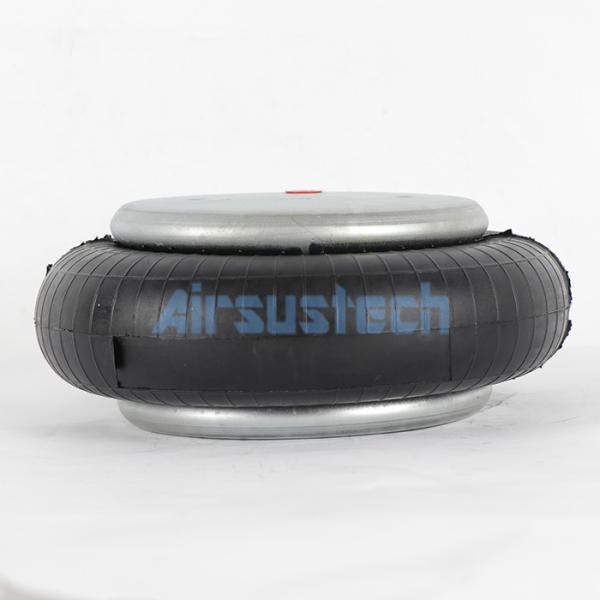

1B6910-3/4 Air Spring Pictures
