| Categories | Tunable COB LED |
|---|---|
| Brand Name: | HuanYu Dream |
| Model Number: | HY-1917RGB-50W |
| Certification: | RoHS |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal,Ali Pay |
| Supply Ability: | 500K/Month |
| Delivery Time: | 7-9 Work Days |
| Packaging Details: | 25pcs/Tray |
| Type: | 1917 3 In 1 RGB Led Cob |
| Voltage: | 34-36V |
| Power: | 50 Watts |
| Wide viewing angle: | 120° |
| Application: | Smart lighting |
| Color: | RGB |
| Red: | 660-665nm 27W |
| Green: | 520-522.5nm 12W |
| Blue: | 460-462.5nm 12W |
| Lifespan: | 50000hours |
| Company Info. |
| Shenzhen Huanyu Dream Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Super Aluminum Substrate 12W 1917 3 In 1 RGB Led Cob Chip 1919 Cob Led Chips
1917 3 In 1 RGB Led Cob Details
* Dimension 19.0 mm×19.0 mm×1.5 mm
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor

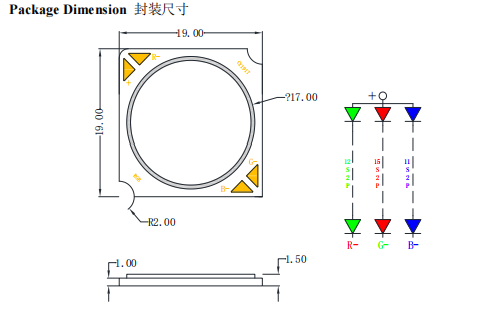

1917 3 In 1 RGB Led Cob Package Dimension
25 PCS/Tray
4Tray/ESD Shieding Bag:100pcs
1917 3 In 1 RGB Led Cob Specification
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Electrical - Optical Characteristics at Ta=25℃
| Type | Symbol | Test condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| WaveLength(B) | λd | IF=300mA | 457.5 | -- | 465 | nm |
| WaveLength(R) | λd | IF=300mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=300mA | 520 | -- | 530 | nm |
| Luminous Flux(B) | φv | IF=300mA | 120 | 210 | LM | |
| Luminous Flux(R) | φv | IF=300mA | 600 | 800 | LM | |
| Luminous Flux(G) | φv | IF=300mA | 800 | 1000 | LM | |
| Forward Voltage(B) | VF | IF=300mA | 34 | 36 | V | |
| Forward Voltage(R) | VF | IF=300mA | 34 | 36 | V | |
| Forward Voltage(G) | VF | IF=300mA | 34 | 36 | V | |
| Power(B) | PD | IF=300mA | 12 | W | ||
| Power(R) | PD | IF=300mA | 27 | W | ||
| Power(G) | PD | IF=300mA | 12 | W | ||
| Thermal resistance | Rth(j-s) | IF=300mA | -- | -- | 0.85 | ℃/W |

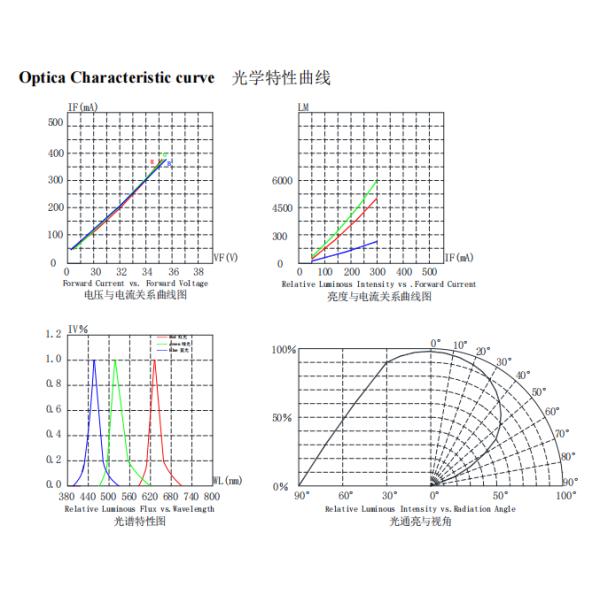

Optica Characteristic curve
1917 3 In 1 RGB Led Cob Application
Other 1917 Types Led Cob
Production Process
Our Service
1. 3 Years quality guarantee for high power cool white led chip
2. unconditional return back if unsatisfied with quality.
3. Provide lowest cost for goods' shippments.
4. Provide customized color temperature and CRI if needed.
5. Provide full data sheet and test report for every order every item.
6. Provide enough market and prices info for other accessories for your lamp manufacturers.
7. Provide PCB desgin and 1watt LED soldering and other OEM severices if suctomers need.
8. Provide VIP SPECIAL discounts for big orders and long-term cooperation customers.
Q&A
Q: Would you offer free samples?
A:Yes, We would offer free samples for test quality at first.
Q:Are you manufacturer or trade company?
A:We are an experienced and professional LED manufacturer since 2013.
Q:What payment method do you accept?
A:We accept T/T, Paypal, Western Union and others more as clients’ requirement.
Q: What about the lead time?
A:It depends on the order quantity. In general, lead time is about 5-7 working days. For samples, the delivery could be as fast as same day.
Q: How can I get a quotation from you?
A:Please kindly leave us messages about your needs,including products and quantity,our professional team will reply you very soon (mostly within few hours).
Q: What technical support can I get after purchase?
A:Data sheet and operation manual will be provided to dear you. Our sales engineer will be answering your questions any time.
Q: If there is LED failure, how can you support?
A:Customers provide pictures of the failed products or the samples rejected, the engineer will analyze the failure and find out the reasons. If the failure was caused by the product quality, we will compensate with qualified replacement!
|
