Name: Excavator Main Pump PC2003 PC200LC3 Hydraulic Pump 7082501064 7082510200 7042428201 7042428200
Brand: Belparts
Price: 1 USD

Home > Other Construction & Real Estate >

Excavator Main Pump PC200-3 PC200LC-3 Hydraulic Pump 708-25-01064 708-25-10200 704-24-28201 704-24-28200

Categories	Hydraulic Pump Excavator Parts
Brand Name:	Belparts
Model Number:	PC200-3 PC200LC-3
Place of Origin:	Made in china
MOQ:	1PCS
Price:	Negotiated price
Payment Terms:	T/T, trade assurance,PayPal
Supply Ability:	1000PCS
Delivery Time:	1~7 days
Packaging Details:	Wooden case
Model:	PC200-3 PC200LC-3
part number:	708-25-01064 708-25-10200 704-24-28201 704-24-28200
Warranty:	1 Year
Texture:	Steel
Part name:	Hydraulic pump

Contact Now

Add to Cart

Company Info.

GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

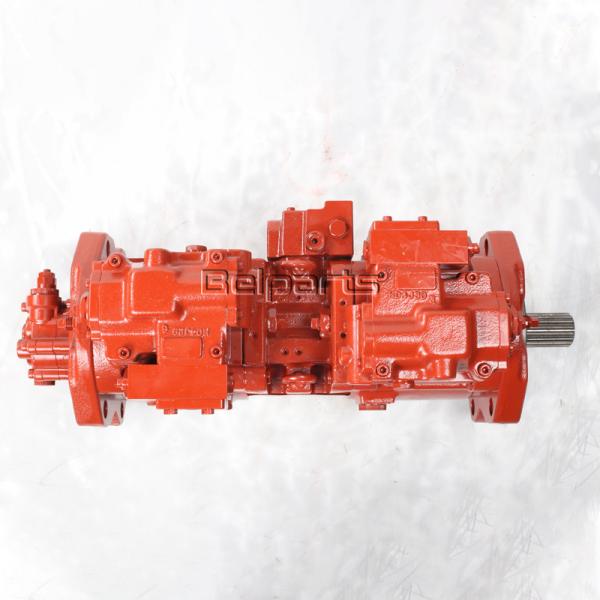

Excavator Main Pump PC200-3 PC200LC-3 Hydraulic Pump 708-25-01064 708-25-10200 704-24-28201 704-24-28200

Belparts Excavator main pump PC200-3 PC200LC-3 hydraulic pump 708-25-01064 708-25-10200 704-24-28201 704-24-28200

Appliion:Crawler excavator
Part name:Hydraulic Main Pump
Model:PC200-3 PC200LC-3
Part number:708-25-01064 708-25-10200 704-24-28201 704-24-28200
Warranty:3-12 months
Payment term:T/T, Trade Assurance, Paypal and etc.
Brand:Hitachi or as require

Appliion	Crawler excavator
Part name	Hydraulic Main Pump
Model	PC200-3 PC200LC-3
Part number	708-25-01064 708-25-10200 704-24-28201 704-24-28200
Warranty	3-12 months
Payment term	T/T, Trade Assurance, Paypal and etc.
Brand	Hitachi or as require

#	Part No	Part Name	Qty.	Price request
1	708-25-01064	PUMP ASS'Y	1
1	(708-25-10200)	PUMP ASS'Y	1
1	(708-25-01250)	PUMP SUB ASS'Y	1
1	(708-25-11101)	PUMP SUB ASS'Y	1
1	(708-25-11100)	PUMP SUB ASS'Y	1
2	(704-24-28201)	PUMP ASS'Y	1
2	(704-24-28200)	PUMP ASS'Y (BAR 25)	1
		(704-24-28203{704-28-02710)}
3	(708-25-14902)	RELIEF VALVE ASS'Y	1
3	(708-25-14800)	RELIEF VALVE ASS'Y	1
4	(708-25-07111)	SERVO VALVE ASS'Y,FRONT	1
4	(708-25-15100)	SERVO VALVE ASS'Y,FRONT	1
5	(708-25-07212)	SERVO VALVE ASS'Y,REAR	1
5	(708-25-16600)	SERVO VALVE ASS'Y,REAR	1
6	01010-31260	BOLT, TRUNNION CAP	2
7	01602-01236	WASHER,RADIO CONTROLLED SLAG HANDLING	2
8	708-25-05030	SHIM KIT	1
8		Shim	1
8		Shim	2
8		Shim	2
9	708-25-19111	JOINT	1
10	07042-20108	PLUG,(FOR W/O. CORROSION RESISTOR)	1
11	07002-02434	O-RING,DRAIN PLUG? R.H. HALF TANK	4
12	07239-12410	NUT (ITL)	1
13	07230-10422	UNION,(WITH POWER TILT)	1
14	07002-02034	O-RING,(NOT USED WHEN (B) SPEC.)	2
15	07102-20404	HOSE,INLET	1
16	07232-20422	ELBOW,(FOR TBG/ABE SPEC.)	1
17	07239-12009	NUT,(FOR LONG LEVER CONTROL)	1
18	708-25-19120	Flange	1
19	720-68-15240	Filter	1
20	07000-02021	O-RING,WATER PIPING	1
21	01010-30820	BOLT,(SANDY? DUSTY TERRAIN SPEC.)	2
22	01602-20825	WASHER,SPRING?FOR ADDITIONAL REAR LAM	2
23	07044-02412	PLUG,MAGNETIC	3
24	706-46-53260	Plug	2
25	07002-01423	O-RING,(CRUSHER?OTHER ATT.FOR PPC CON	2
26	708-25-19140	Tube	1
27	706-46-53180	BOLT,JOINT	2
28	07000-02012	O-RING, BETWEEN VALVE AND PUMP	4
29	(708-25-19130)	Bolt	8
30	(01602-00825)	WASHER,SPRING (SEE FIG.0331 OR 0331A)	8
31	(04020-00616)	PIN,SEE FIG. K4010-71A0	4
32	08036-21814	CLIP,(FOR SLAG HANDLING) (FOR USA)	1
33	04530-01018	BOLT, EYE	3
33	04530-01018	BOLT, EYE	2
34	01010-31016	BOLT,(SANDY AND DUSTY SPEC.)	1
35	01643-31032	WASHER,(WITH AUTO EMERGENCY STEERING)	1

Model	Nominal displacement(ml/r) Fore pump/ hind pump	Pressure(MPa)		Speed(r/min)			Volumetric efficiency(≥%) Fore pump/ hind pump	L1	L2	L	Weight (kg)
		Rated	Max	Min	Rated	Max
CBHY-G36/F3.5-ATφ*	36/3.5	25/20	28/25	800	2500	3000	92/85	123	123	205	6.8
CBHY-G36/F4.5-ATφ*	36/4.5						92/90			208	7.0
CBHY-G32/F3.5-ATφ*	32/3.5						92/85	118	118	200	6.5
CBHY-G32/F4.5-ATφ*	32/4.5						92/90			203	6.7
CBHY-G30/F3.5-ATφ*	30/3.5						92/85	116	116	198	6.1
CBHY-G30/F4.5-ATφ*	30/4.5						92/90			201	6.4
CBHY-G28/F3.5-ATφ*	28/3.5						92/85	114	114	196	6.1
CBHY-G28/F4.5-ATφ*	28/4.5						92/90			199	6.2
CBHY-G25/F3.5-ATφ*	25/3.5						92/85	110	110	192	5.8
CBHY-G25/F4.5-ATφ*	25/4.5						92/90			195	5.9

Model	Nominal displacement(ml/r) Fore pump/ hind pump	Pressure(MPa)		Speed(r/min)			Volumetric efficiency(≥%) Fore pump/ hind pump	L1	L2	L	Weight (kg)
		Rated	Max	Min	Rated	Max
CBHY-G36/F3.5-ATφ*	36/3.5	25/20	28/25	800	2500	3000	92/85	123	123	205	6.8
CBHY-G36/F4.5-ATφ*	36/4.5						92/90			208	7.0
CBHY-G32/F3.5-ATφ*	32/3.5						92/85	118	118	200	6.5
CBHY-G32/F4.5-ATφ*	32/4.5						92/90			203	6.7
CBHY-G30/F3.5-ATφ*	30/3.5						92/85	116	116	198	6.1
CBHY-G30/F4.5-ATφ*	30/4.5						92/90			201	6.4
CBHY-G28/F3.5-ATφ*	28/3.5						92/85	114	114	196	6.1
CBHY-G28/F4.5-ATφ*	28/4.5						92/90			199	6.2
CBHY-G25/F3.5-ATφ*	25/3.5						92/85	110	110	192	5.8
CBHY-G25/F4.5-ATφ*	25/4.5						92/90			195	5.9
