Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: W01-R58-4055
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Structure: Double Convoluted
Function: Reduce Shock
Quality: 100% Tested
OEM: W01-R58-4055
Brand: GUOMAT
Minimum Height: 72 MM
Maximum Height: 225 MM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

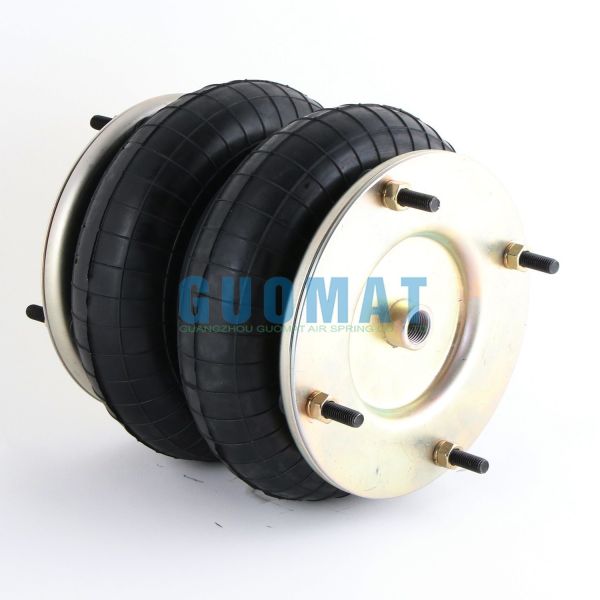

Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs

Firestone Air Rubber Bellow W01-R58-4055 Air Spring Suspension 4×M10 Studs


2B8×2T Air Spring Information


Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 156 mm
Bottom Plate Diameter: 184 mm
Bottom Plate Hole Quantity: 4
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 156 mm
Top Plate Diameter: 184 mm
Top Plate Hole Quantity: 5
Top Plate Type: Steel
Bellow Maximum Diameter:230 mm
Expanded Height: 72 mm
Compressed Height: 225 mm
Spring Type: Double Convoluted
Air Inlet: 1/2 BSP
Nut/Blind Nuts Type: 4×M10

Alternative Items


FIRE-STONE NO.

W01-R58-4055, W01R584055, W01/R58/4055

w01-r58-4055, w01r584055, 4055, 8x2 , 8''x2 , 8'x2

FRUEHAUF NO.F48054, M80A04, F 48054, M 80A04
LOHR NO.A06030604, A 06030604
SAMRO NO.H2500021, H2500188, H 2500021, H 2500188, H 250 0021, H 250 0188
SISU TRUCK NO.1531110600, 153 111 0600
DUNLOP NO.SP1490, SP918, SP 1490, SP 918
CONTITECH NO.FD 138-18 DS, FD138-18 DS, FD128 18 DS, FD 138 18 DS
NORGREN NO.M/31082, M 31082, M31082
PARKER NO.9109011


Product Applications


  • Gate Valve Operator
  • Glue Coating Machine
  • Web Tightening Tool
  • Stripper
  • Tool Spring Driver
  • Quenching Drain Driver
  • Paper Mill
  • Pickling Tank Driver


FAQ


Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.


Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world


Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

Q: Is the sample available?
A: YES. Usually we send the samples by TNT, DHL, FEDEX or UPS, it will take around 3-7 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight.



Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
