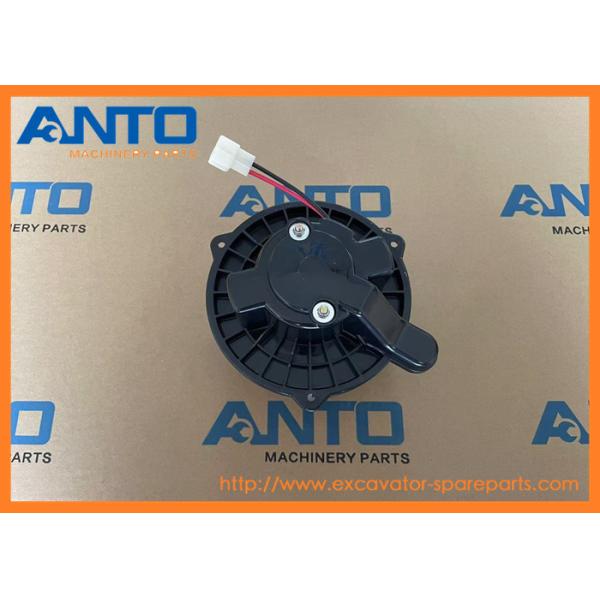

11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L

11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L

11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L
11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L
Categories Excavator Air Conditioner Parts
Brand Name: OEM
Model Number: 11K6-90700 11K690700
Place of Origin: China
MOQ: 1 PCS
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
egory: HYUNDAI Excavator air conditioner parts
Parts name: Fan motor
Parts number: 11K6-90700 11K690700
Models: HX140L HX160L HX180L HX220L HX220NL HX260L HX300L HX330L HX380L HX430L HX480L HX520L
Lead time: Stock for soon delivery
Warranty: 6/12 Months
Contact Now
Company Info.
Guangzhou Anto Machinery Parts Co.,Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L

  • 11K6-90700 11K690700 Fan Motor Assy For HYUNDAI Crawler Excavators HX140L HX160L HX180L

  • Specifiion
spare parts nameFan motor assy
Equipment Model11K6-90700 11K690700
Parts egoryHYUNDAI excavator air conditioner parts
Spare parts ConditionBrand new, OEM quality
MOQ of order(PCS, SET)1 PCS
Parts AvailabilityIn stock
Delivery Lead time1-3 days

  • Compatible models

F-SERIES CRAWLER EXCAVATOR HX140L HX160L HX180L HX220L HX220NL HX260L HX300L HX330L

HX380L HX430L HX480L HX520L

F-SERIES WHEEL EXCAVATOR HW140 HW210 Hyundai


  • More other fan parts applicable for HYUNDAI machine
11Q6-00360 FAN CLUTCH ASSY
HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S
11Q6-01230 FAN-COOLING
HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9S
11N8-46190 FAN
HX480L, HX520L, R300LC7, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A
11QB-61041 FAN GUARD
HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A
11QA-43251 FAN GUARD
HX330L, HX380L, HX430L, R330LC9A, R380LC9A, R430LC9A
11Q6-00361 FAN CLUTCH ASSY
HX180L, R140LC9A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, R180W9S
11QA-03161 FAN
HX330L, HX380L, HX430L, R330LC9A, R380LC9A, R430LC9A
11N8-46191 FAN
HX480L, HX520L, R480C9MH, R480LC9, R480LC9A, R520LC9, R520LC9A
11K4-01020 FAN CLUTCH
HW140
31K9-31120 FAN PUMP
HX330L, HX380L, HX430L
11QA-03111 FAN-COOLING
HX380L, HX430L
11KB-00101 FAN
HX480L, HX520L

  • Parts list diagram
Pos.Part NoQtyParts nameComments
111K6-90601[1]AIR CON & HEATER UNIT
1-5.AH003729[1]CASE-LH(AC & HT,W/APTC)
1-6.AH003730[1]CASE-RH(WITH AIR HOLE)
1-8.AH003716[1]DOOR ASSY-REAR
1-9.AH003715[1]DOOR ASSY-FRONT
1-10.AH003717[1]DOOR ASSY-DEF
1-11.AH003718[1]DOOR ASSY-FOOT
1-12.AH003719[1]DOOR ASSY-TEMP
1-13.AH003679[1]CAM-MODE
1-14.AH003671[2]LEVER A
1-15.AH003672[2]LEVER B
1-16.AH003677[1]LINK-DEF
1-17.AH003678[1]LINK-FOOT
1-18.AH003680[1]CAM-TEMP
1-19.AH003675[1]LEVER-TEMP
1-20.AH003779[1]SEAL-RUBBER A
1-21.AH003780[1]SEAL-RUBBER B
1-22.AH003781[1]SEAL-RUBBER C
1-23.AH003775[3]SEAL-OUTLET
1-24.AH003776[1]SEAL-FOOT
1-25.AH000966[3]CLIP-CASE
1-26.3AH0686[4]BUSHING
1-27.4AH0643[3]HOLDER-WIRE
1-28.AH000865[24]SCREW-HIGH LWR
1-29.11K6-90210[1]ADAPTER
1-30.AH003858[1]SEAL-AIR DUCT
1-31.AH003624[1]CASE-INTAKE
1-32.AH003676[1]LEVER-INTAKE
1-33.AH003720[1]DOOR ASSY-INTAKE
1-34.AH003777[1]SEAL-INTAKE A
1-35.AH003778[2]SEAL-INTAKE B
1-36.AH003682[1]DUST-COVER
1-37.11K6-90520[2]ACTUATOR ASSY
1-38.AH101192[1]LEVER-MODE ACTUATOR
1-39.AH101193[1]LEVER-TEMP ACTUATOR
1-40.4AH0643[3]HOLDER-WIRE
1-41.AH000865[8]SCREW-HIGH LWR
1-42.AH003698[1]CASE-LOWER(AC)
1-43.11K6-90561[1]CORE ASSY-EVAP
1-44.11Q6-90551[1]VALVE-EXPANSION
1-45.11K6-90540[1]HTR-CORE ASSY
1-46.11K6-90700[1]FAN-MOTOR ASSY
1-47.AH003681[1]CLAMP-HTR PIPE
1-48.AH003782[1]SEAL-HEATER
1-49.11K6-90770[1]AIR FILTER-INLET
1-50.11K6-90570[1]ACTUATOR ASSY-INTAKE
1-51.11K6-90370[1]CONTROL BOX ASSY
1-52.11Q6-90530[1]FET
1-53.11K6-90820[1]RELAY
1-54.11K6-90530[1]THERMISTOR-ASSY
1-55.11N6-90890[1]SENSOR-TEMP
1-56.11K6-90690[1]WIRE-ASSY(WITH APTC)
1-57.11K6-90610[1]APTC-PWM ASSY
1-58.AH000865[36]SCREW-HIGH LWR
1-59.AA000079[1]COVER FILM-TXV

  • Advantage

1. The electrical parts are built to fit to the genuine engine system. The elctrical parts consist below parts: wire harness, sensors, switch, relay, controller, monitor, fuse, governor.

2. The engine parts are supplied strictly according to the genuine parts alog.

3. All the parts are manufactured from carefully selected materials with standard quality using standard production process.

4. Surplus stock and the various varioties of electrical parts that cover excavator for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
  • Warranty


1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance


  • Packing & Delivery


* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
