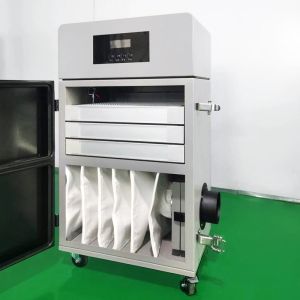

Intelligent Plasma Cutting Fume Extractor for Smart Industrial Workshops

Product Overview

The intelligent plasma cutting fume extractor is a high performance industrial air purification system developed for modern metal fabrication workshops.
It efficiently collects and removes the hazardous fumes, smoke, and fine dust generated during plasma and thermal cutting operations.

Designed for automation lines and smart factories, this system combines energy saving fan control, intelligent monitoring, and modular filter units to deliver stable, long term air purification for demanding environments.

Core Features

1. Smart Airflow Control

Equipped with a variable frequency fan system that automatically adjusts suction power according to smoke concentration, achieving high efficiency with reduced energy consumption.

2. Multi Stage Filtration System

A combination of pre filter, high efficiency cartridge filter, and HEPA filter ensures complete removal of dust and fine particles, while optional activated carbon modules absorb odors and gases.

3. Self Cleaning Function

The automatic pulse jet cleaning keeps filter elements clean and effective, reducing maintenance time and extending service life.

4. Compact Modular Design

The system is easy to install in new or existing production lines and can be expanded as workshop requirements grow.

5. Intelligent Control Panel

Real time data on airflow, pressure, and filter condition is displayed on a digital interface, allowing remote operation and maintenance alerts.

Applications

The intelligent fume extraction system is suitable for:

• CNC plasma and flame cutting stations

• Robotic welding and automated production cells

• Metal fabrication and sheet metal workshops

• Steel and equipment manufacturing plants

• Industrial training and research centers

It can be used as an independent mobile unit for single stations or integrated into a centralized fume extraction network for large scale production environments.

System Benefits

Working Process

1. Fume Collection – Smoke and dust are captured through suction arms or hoods directly above the cutting point.

2. Air Transport – Contaminated air flows through duct pipelines to the filtration unit.

3. Dust Separation – Coarse particles fall into a dust bin while fine particles are filtered by high efficiency cartridges.

4. Air Purification – HEPA and activated carbon filters remove remaining fine dust and gases.

5. Clean Air Output – Purified air is discharged safely or recirculated indoors depending on factory layout.

Why Choose This System

• Designed for intelligent and energy saving factories

• Suitable for continuous plasma cutting and welding operations

• High filtration efficiency and stable air suction

• Automatic dust removal with minimal manual work

• Modular and flexible installation

• CE and ISO certified, supporting long term industrial use

Contact Us

We provide professional plasma cutting fume extraction solutions tailored to your production line layout and air quality requirements.
Our engineering team can design, install, and service complete purification systems for any metal processing facility.
Contact us to discuss your project and receive a customized quotation today.
