| Categories | Tanker Semi Trailer |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | AOTONG |
| Packaging Details: | In nude,Polish with water wax before shipment 1 By 40ft/45ft/40fr container 2 By bulk /roro ship 3 As your requirments. Professional package saves freight cost for customers Guarantee the firmness and safety of the goods |
| Supply Ability: | 500 Unit/Units per Month aluminum tanker trailer |
| Price: | $19,000.00/units 1-2 units |
| Certification: | ISO,CCC |
| MOQ: | 1 UNIT |
| Delivery Time: | 25 days |
| Use: | Other Trailers |
| Max Payload: | 50ton |
| Size: | 12700*2498*3750(mm) |
| Function: | Transport Fuel, Oil, Milk, Water |
| Axle: | 3x13ton FUWA Brand |
| Tire: | Double Coin |
| Suspension: | Leaf Spring Suspension/Air Suspension |
| Brake system: | Dual Line Air Braking System |
| Material: | Aluminium Alloy |
| King pin: | 2"(50mm)or3.5"(90mm) JOST |
| Color: | Optional |
| OE NO.: | Requirement |
| Port: | Tianjin/ Lianyungang/Qingdao/Shanhai port |
| Payment Terms: | TT |
| Company Info. |
| Qingdao Juyuan International Trading Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

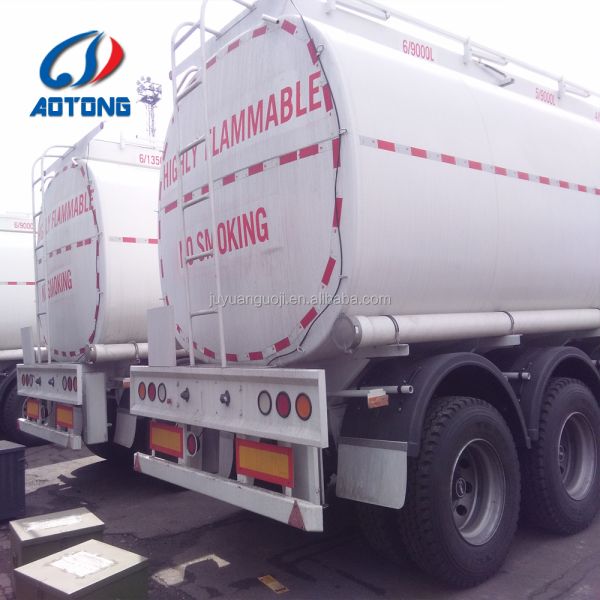

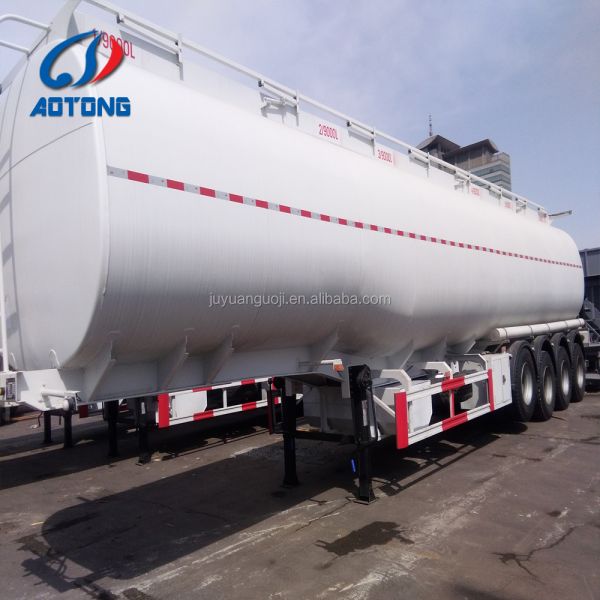

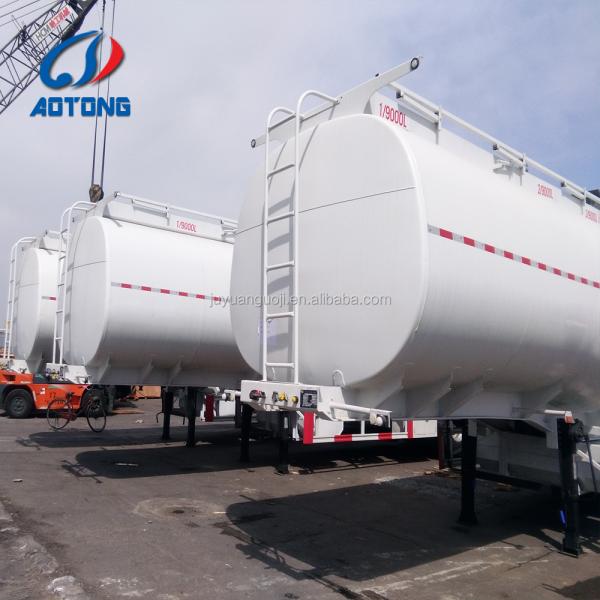

3-Axle Aluminum Fuel/Edible Oil Tanker Truck Semi Trailer/Tank Trailer (Cylindrical-Type Tank)
Application:
1. This type of aluminum alloy tank semi trailers is applicable for the transportations of the milk,water,gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-oil products such as alcohol, aldehyde, benzene, liquid substances.
2. The capacity is for 50tons , we can manufacture it according to
your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need
with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring
suspension), bogie suspension, etc
1. Model: LAT9404GRY
2.18 months guarantee system
3.High quality and service
4.Practical and Economical
5.3C ISO certification
6. Small order can be accepted.
7.more than 14 years experience manufacturer
| Type | Aluminum Fuel Tank(Cylindrical-Type Tank) | ||
| Model | LAT9404GRY | Tank material | Aluminum alloy |
| Length(mm) | 12700 | Approach/departure angle(°) | -/34 |
| Width(mm) | 2498 | Front overhang(mm) | - |
| Height(mm) | 3750 | Rear overhang(mm) | 1430 |
| Capacity(m 3 ) | 49.8 | Wheelbase(mm) | 7000/1360/1360 |
| Loading mass(kg) | 33200 | Trace(F/R) (mm) | 2040 |
| Curb weight(kg) | 6800 | Axle number | 3 |
| Tire Model | 12R22.5-18PR 1100R20-18PR | Tire number | 12 |
| ABS Model | CM2XL-4S/2M | Steel Plate spring (pics) | - |
| Tank thickness(mm) | 5.5/6 | Head thickness(mm) | 6 |
| Warning system | Each side and rear with reflecting mark | ||
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
AIR RESERVOIR | 6 MONTHS | |||||
ITEM NAME | WARRANTY | |||||
OTHERS | LEAF SPRING | 3 MONTHS | ||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
EMERGENCY RELAY VALVE | 3 MONTHS | |||||
BRAKE SHOE | 3 MONTHS | |||||
RELAY VALVE | 3 MONTHS | |||||
|
