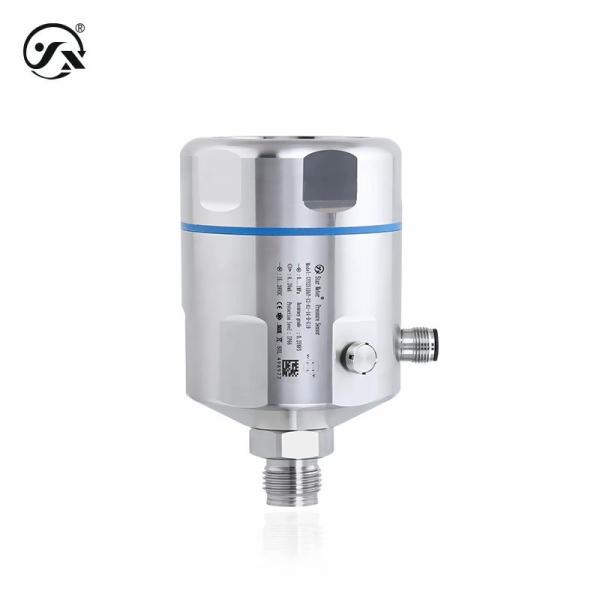

CYYZ51DAY flat-film pressure transmitters are designed to measure viscous or colloidal media. The design of the impulse hole is canceled, which effectively prevents the blockage of the impulse hole, and it has two explosion-proof functions of intrinsically safe type and dust intrinsically safe type, and can also choose HART protocol communication, which is cost-effective.
| Basic parameters | |
| Measuring medium | Liquids, fluids, gases (compatible with contact materials) |
| Pressure range | -100kPa～0～6MPa (see range selection table class=”info” for details) |
| Pressure mode | Gauge pressure, absolute pressure, negative pressure |
| Medium temperature | -40～85℃ |
| Connection time | 20ms |
| Stable class=”info” performance | ±0.1%FS/year |
| Temperature drift | ±0.01%FS/℃ (within temperature compensation range) ±0.05%FS/℃ (outside temperature compensation range) |
| Explosion-proof type | Intrinsically safe type Ex iaⅡ CT6 Ga (only 4～20mA/4～20mAHART
output) Dust intrinsically safe type Ex iaD 20 T80℃ (only 4～20mA/4～20mAHART output) Note/intrinsically safe must be powered by a safety barrier or intrinsically safe power supply |
| Protection level | IP66 Note/The above protection level refers to the level achieved after the electrical connection is complete. |
| Durable performance | 1X10⁶ times (number of cycles from lower limit to upper limit) |
| Response frequency | Analog signal output ≤30Hz Digital signal output ≤5Hz HART communication ≤10Hz |
| Overall weight | ≈1kg |
| Resolution | Analog output 0.01%FS, digital output 0.05%FS |
| Maximum Power | ≤0.02Us(W) |
| Load characteristics | |
| Voltage Type | ≥10kΩ |
| Current Type | Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage) |
| HART Current Type | Load ≤{(Us-12)÷0.02}Ω (Us=supply voltage) |
| Environmental conditions | |
| Ambient temperature | -40～85℃ |
| Ambient humidity | 0%～95%RH (no condensation and no condensation) |
| Overpressure and explosion | |
| Overload pressure | 300%FS, 200%FS, 200%FS, 200%FS, 150%FS, 150%FS, 12kPa, 50kPa, 300kPa, 480kPa, 750kPa, 800kPa, 1.2MPa, 2MPa, 3MPa, 5MPa |
| Burst pressure | 600%FS, 500%FS, 500%FS, 400%FS, 400%FS, 300%FS, 20kPa, 200kPa, 600kPa, 900kPa, 1.25MPa, 2MPa, 3MPa, 5MPa, 9MPa, 12.5MPa |
| Overall material | |
| Diaphragm | 316L stainless steel (contacting the measured medium) |
| Process connection | 304 stainless steel (contacting the measured medium) |
| shell | 304 Stainless Steel |
| Core seal | See the pressure and burst chart (contact with the measured medium) |
| Thread seals | Fluorine rubber |
| Display window | ≈6mm explosion-proof glass |
| Mechanical stability | |
| Vibration resistance | 10g (20…2000Hz) in accordance with IEC60068-2-6 standard |
| Impact resistance | 500g/ms in accordance with IEC60068-2-27 standard |
| Electrical protection | |
| Short circuit protection | permanent |
| Reverse polarity protection | No damage, but not working |
| Insulation resistance | ≥100MΩ500VDC |
| Dielectric strength | 500VAC |
| Output Limitation | |
| 4-20mA | 4mA~20mA |
| RS485 | 0~2000 |
| 0～10VDC | 0.001VDC~10VDC |
| 0～5VDC | 0.001VDC~5VDC |
| 1～5VDC | 0.001VDC~5VDC |
| 4-20mAHART | 3.8mA~22mA |
|
