| Categories | Flat Cable |
|---|---|
| Place of Origin: | China |
| Brand Name: | HONSHI |
| Model Number: | FC12651-28XX0076-01 |
| Certification: | ISO9001/ISO14001/ROSH/Reach |
| Packaging Details: | Reel packing |
| Supply Ability: | 10000000 Meter/Meters per Week |
| MOQ: | 100 meters |
| Price: | 0.1-0.5 usd |
| Payment Terms: | T/T,Paypal |
| Delivery Time: | 7-15 Day |
| Application: | Electronic |
| Product name: | Flat Ribbon Cable |
| Contact material: | Tinned Copper |
| Length: | Customized Length |
| Pins: | 4pin-64pin(customized) |
| Wire: | 26-28AWG UL Cable |
| Test: | 100% Testing Inspection |
| Packing: | Roll |
| Insulation Material: | PVC.etc |
| Rate Voltage: | DC300V |
| Company Info. |
| Dongguan Honshi Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

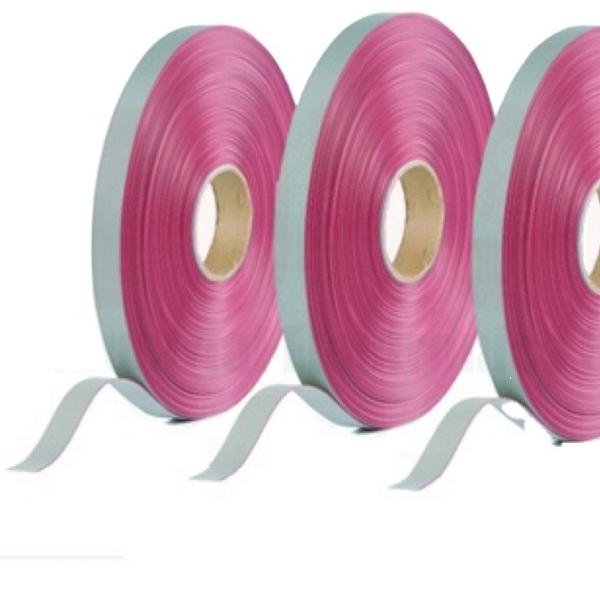

4pin-64pin Customized Flat Cable 2651 Pitch 1.27mm 76.5M / Roll Ribbon Grey Flat Cable
| Specific material electrical parameters | |||
| IDC Connector Specifications: | Wire specifications: | ||
| Rated Current: | 3.0AMP | Insulator Material: | PVC |
| Contact Resistance: | 20mΩ Max | Conductor: | 7/0.127mm(Tin Plated Copper) |
| Withstand Voltage: | 500V AC/DC | Cable Color: | Wires Red Marking Grey Side |
| Insulation Resistance: | 1000MΩ Min | Cable Length | Be Customized |
| Operation Temperature: | -40°c to +105°c | Cable Testing: | |
| Connector: | IDC Socket | Contact Resistance: | 3Ω Max. |
| Pitch: | 1.0/1.27mm | Insulation Resistance: | 10MΩ Min. |
| Positions: | 6P~100P | Withstand Voltage: | DC300V, 5second |
| Contact Material: | Brass | 100% Open & Short Test | |
| Contact Plating: | Au or Sn Over Ni | All materials comply with"ROHS" environmental protection standards | |
| Insulator Material: | PBT(UL94V-0) | ||
Drawing:FC12651-28XX0076-01.pdf
Item name: Flat Cable
1. Product features: IDC Flat Ribbon Cable Assemblies,compliant
with RoHs,could be customized,UL2651/UL2678
30awg/28awg/26awg,0.635mm,1.0mm,1.27mm,2.0mm,2.54mm pitch all
available.
2. Material: copper alloy, copper alloy, nickel or nickel alloy.
3. Products are widely used in:industrial and power
control,electronic communications,LED photoelectric,liquid crystal
display,servo system,medical equipment,automotive
electronics,computer motherboards and consumer electronics etc.
Service idea:
1. Committed to providing customers with customized, small batch,
multi variety, one-stop services.
2. Quick response and effective communication, refined service
timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply
of materials strictly in accordance with the quality and standard
production control.
Management Concept
Responsibility Innovation Integrity Win-Win;
Team Culture
Thanksgiving Valute Respects Team efforts;
Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;
Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers
with flexibly customized interconnect solutions.
