| Categories | Suspension Air Springs |
|---|---|
| Brand Name: | AIRSUSTECH |
| Model Number: | F-120-2 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou,China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Brand: | AIRSUSTECH |
| Yokohama: | S-120-2 |
| Maximum Height: | 148 MM |
| MinimumHeight: | 53 MM |
| Structure: | Double Convoluted |
| Sample: | Available |
| Material: | Rubber |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
Rubber lining, a pivotal component in air spring technology, is a
reconfigurable inner mold shaped by the unique polymer
characteristics of vulcanized rubber and high-strength fiber cloth.
This amalgamation of vulcanized rubber and fibers results in a
product that is compressible, elastic, and airtight. When inflated
with compressed air, the air bag expands to conform to the design
specifications of its cross-section, thereby fulfilling the
structural and functional requirements of the air spring system.
The rubber air spring, known for its superior comfort and fatigue
resistance, boasts a low quality factor, translating to a longer
service life. Its inherent properties also contribute to effective
vibration reduction and noise dampening, making it an ideal choice
for a wide range of applications. From industrial machinery to
precision instrumentation, the rubber air spring finds extensive
use across various equipment, underlining its versatility and
reliability in diverse operational environments.
Product Specifications
Design Height: 98 mm
Compressed Height: 53 mm
Expanded Height: 148 mm
Commonly Maximum Stroke: ±53 mm
The Largest Diameter When Compressed : 180 mm
S-120 Items Detailed Parameter Table
| AIRSUSTECH NO. | Reference NO. | Height H [mm] | Commonly Maximum Stroke [mm] | The largest Dia When Compressed [mm] | ||
Design Height [mm] | Max Height [mm] | Min Height [mm] | ||||
| F-120-4 | S-120-4 | 206 | 306 | 111 | ±70 | 180 |
| F-120-3 | S-120-3 | 152 | 227 | 82 | ±53 | 180 |
| F-120-2 | S-120-2 | 98 | 148 | 53 | ±35 | 180 |
| AIRSUSTECH NO. | Reference NO. | Standard Height, Internal Pressure 0.19 Mpa When The General Value | Using Max Internal Pressure [Mpa] | Internal Pressure [Mpa] | ||||
| Effective Area [CM2] | Volume [L] | Load [kN] | Dynamic Spring Parameters [N/Min] | Vibration Frequency [Hz] | ||||
| F-120-4 | S-120-4 | 113 | 3.4 | 5.2 | 69 | 1.8 | 0.88 | 2.9-3.9 |
| F-120-3 | S-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
| F-120-2 | S-120-2 | 113 | 1.25 | 5.2 | 157 | 2.7 | 0.88 | 2.9-3.9 |
| F-100-4 | S-100-4 | 79 | 1.95 | 3.9 | 59 | 1.9 | 0.88 | 2.9-3.9 |
| F-90-3 | S-90-3 | 79 | 1.4 | 3.9 | 78 | 2.2 | 0.88 | 2.9-3.9 |
| F-90-2 | S-90-2 | 79 | 0.85 | 3.9 | 118 | 2.7 | 0.88 | 2.9-3.9 |
| F-90-1 | S-90-1 | 63.5 | 0.5 | 3.1 | 103 | 2.9 | 0.88 | 3.9-4.9 |
AIRSUSTECH Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| F-600-1 | F-600-R1 | 600-1r | F-240-4 | F-240-R4 | 240-4r |
| F-600-2 | F-600-R2 | 600-2r | F-240-3 | F-240-R3 | 240-3r |
| F-600-3 | F-600-R3 | 600-3r | F-240-2 | F-240-R2 | 240-2r |
| F-600-4 | F-600-R4 | 600-4r | F-240-1 | F-240-R1 | 240-1r |
| F-600-5 | F-600-R5 | 600-5r | F-220-4 | F-220-R4 | 220-4r |
| F-550-2 | F-550-R2 | 550-2r | F-220-3 | F-220-R3 | 220-3r |
| F-550-3 | F-550-R3 | 550-3r | F-220-2 | F-220-R2 | 220-2r |
| F-500-2 | F-500-R2 | 500-2r | F-200-2 | F-200-R2 | 200-2r |
| F-500-3 | F-500-R3 | 500-3r | F-200-3 | F-200-R3 | 200-3r |
| F-500-4 | F-500-R4 | 500-4r | F-200-4 | F-200-R4 | 200-4r |
| F-500-5 | F-500-R5 | 500-5r | F-160-1 | F-160-R1 | 160-1r |
| F-450-1 | F-450-R1 | 450-1r | F-160-2 | F-160-R2 | 160-2r |
| F-450-2 | F-450-R2 | 450-2r | F-160-3 | F-160-R3 | 160-3r |
| F-450-3 | F-450-R3 | 450-3r | F-160-4 | F-160-R4 | 160-4r |
| F-450-4 | F-450-R4 | 450-4r | F-120-4 | F-120-R4 | 120-4r |
| F-450-5 | F-450-R5 | 450-5r | F-120-3 | F-120-R3 | 120-3r |
| F-400-2 | F-400-R2 | 400-2r | F-120-2 | F-120-R2 | 120-2r |
| F-400-3 | F-400-R3 | 400-3r | F-100-4 | F-100-R4 | 100-4r |
| F-400-4 | F-400-R4 | 400-4r | F-90-3 | F-90-R3 | 90-3r |
| F-400-5 | F-400-R5 | 400-5r | F-90-2 | F-90-R2 | 90-2r |
| F-350-1 | F-350-R1 | 350-1r | F-90-1 | F-90-R1 | 90-1r |
| F-350-2 | F-350-R2 | 350-2r | F-300-1 | F-300-R1 | 300-1r |
| F-350-3 | F-350-R3 | 350-3r | F-300-2 | F-300-R2 | 300-2r |
| F-350-4 | F-350-R4 | 350-4r | F-300-3 | F-300-R3 | 300-3r |
| F-300-4 | F-300-R4 | 300-4r |
FAQ
Q: Can you produce according to samples? Q: How long does it take to get product after placing the order? Q: How to guarantee your after sales service? Q: What is your sample policy? |

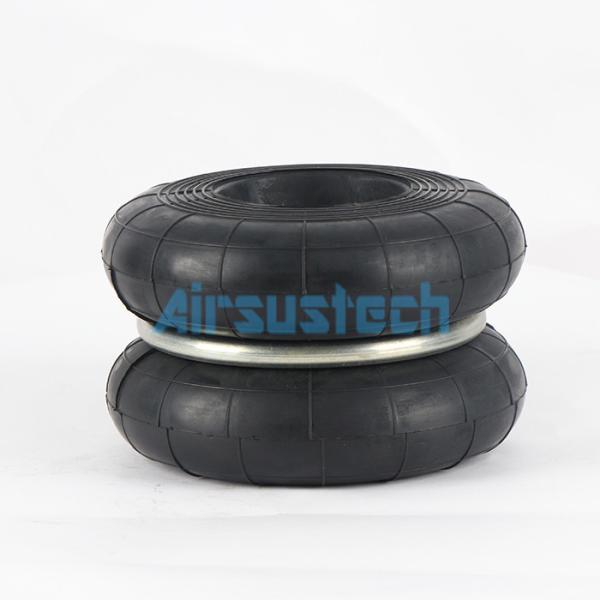

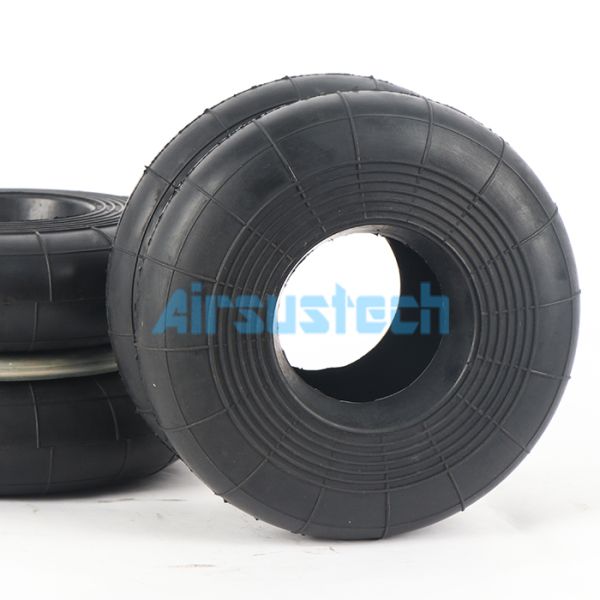

F-120-2 Air Spring Detailed Pictures
|
