SP1490 Dunlop Springride Air Shock Suspension For Industrial Equipment Air Bellow

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B8×2T
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model Name: AIRSUSTECH
Product NO.: 2B8×2T
Alternative Item: Dunlop 8''×2
Total Stroke: 153 MM
Bellows Type: Double Convoluted
Static Height: 150 MM
Sample: Available
Quality: 100 % Tested
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SP1490 Dunlop Springride Air Shock Suspension For Industrial Equipment Air Bellow

SP1490 Dunlop Springride Air Shock Suspension For Industrial Equipment Air Bellow


Product Description

Air springs represent a pinnacle of durability, precision engineering, and cost-effectiveness, tailored for a diverse range of actuation and vibration isolation requirements. Their time-tested design, featuring fabric-reinforced neoprene or natural rubber flex members, coupled with corrosion-resistant end retainers, ensures that these air springs deliver unparalleled quality and performance in the industry.


2B8×2T Specifications


Gas Hole

Air Fitting: 1/2 BSP

Operation: Gas-filled

Pressure Ability: 0-8 bar

Nuts/Blind Nuts

Screw Type: 4×M10

Distance Air Hole Betweeen Screw: 78 mm

Screw Center Distance: 156 mm

Screw Bolts Height: 25 mm

Cover Plate

Top Cover Plate Diameter: 184 mm

Bottom Cover Plate Diameter: 184 mm

Height

Minimum Height: 72 mm

Maximum Height: 225 mm

Static Height: 150 mm

Sroke Height: 153 mm

Height

Minimum Height: 72 mm

Maximum Height: 225 mm

Static Height: 150 mm

Sroke Height: 153 mm


Cross References


  • Dunlop Springride

SP1490, SP 1490


  • Firestone

W01-R58-4055, W01 R58 4055, W01R584055

WO1-R58-4055, WO1 R58 4055, WO1R584055


  • Contitech

FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS

FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS


  • Dunlop Pneuride

8''×2


  • Norgren

M/31082


  • Parker

9109011


Double Convoluted Air Spring Other OEM Number Technical Data


OEM NO.12''×210''×291/4×28''×26''×241/2×1
Minimum Height [mm]747070727365
Maximum Height [mm]240240240225170145

Rubber Bellow Max. Dia [mm]

330280260230168125

Top/Bottom Cover Plate Diameter [mm]

260210197184153110
Screw TypeM10M10M10M10M10M6

Air Bellows Characteristics


  1. Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
  2. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
  3. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
  4. pneumatic cylinders.
  5. All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
  6. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
  7. conditions.
  8. Air bellows are suitable for vibration applications i.e. device feeders at high frequency

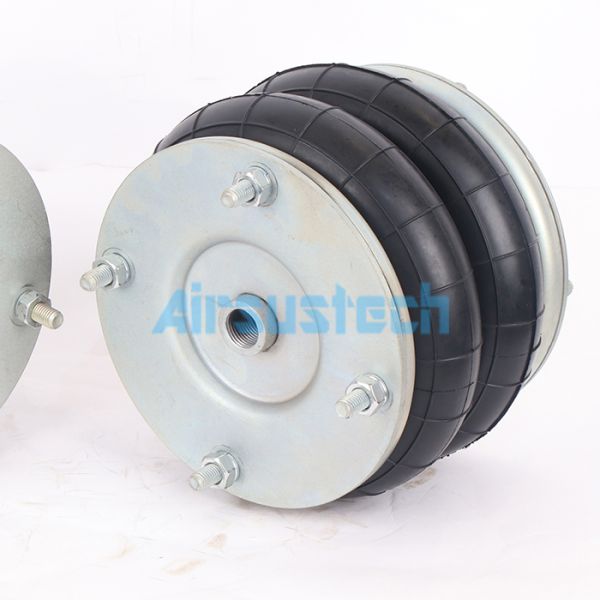

2B8×2T Air Spring Display
