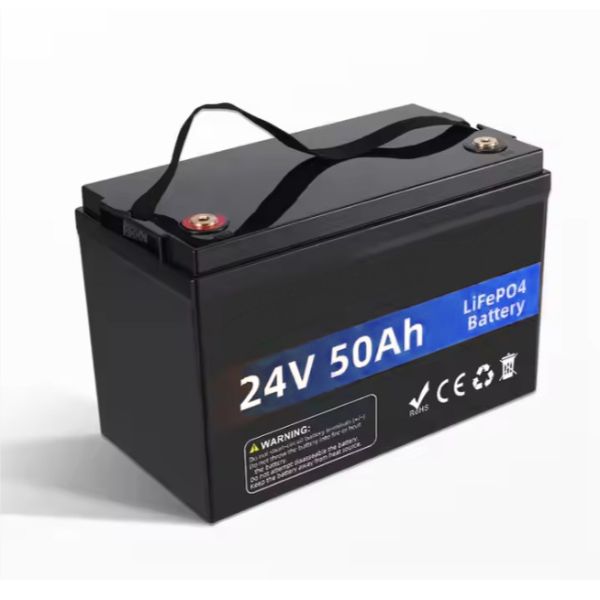

| Categories | LiFEPO4 Lithium Ion Battery |
|---|---|
| Brand Name: | FBATTERY |
| Model Number: | 24V50Ah |
| Certification: | CE,ROHS,UN38.3 |
| Place of Origin: | Wuhan,China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T in advance |
| Supply Ability: | 10000PCS/30Days |
| Delivery Time: | 20 work days |
| Packaging Details: | blister card packing,Carton |
| Voltage: | 24V |
| Capacity: | 50Ah |
| Length: | ≤266mm |
| Width: | ≤170mm |
| Height: | ≤141mm |
| Operating Temperature: | ﹣10℃~+60℃ |
| Company Info. |
| Wuhan Future Intepower Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Products assembly drawing and size refers
| NO | Part Name | Description | Quantity |
| 1 | Cell | 28148115/3.2V/50Ah | 8 |
| 2 | BMS | Charging 60A,Discharging 60A | 1 |
| 3 | Wiring | 3135/8# | 1 |
| Item | Specifications |
| Typical Capacity | 50Ah (0.2C discharge after full charge) |
| Minimum Capacity | 49Ah (0.2C discharge after full charge) |
| Nominal Voltage | 24V |
| Charge Voltage | 29.2V±0.05V |
| Impedance | 80mΩ(Max) |
| Charging Mode | C.C/C.V. |
| Standard Charging | Charging Current 15Ah |
| Fast Charging | Charging Current 25Ah |
| Standard Charging Time | 6.5Hours |
| Fast Charging Time | 2.6Hours |
| Weight | Approx10.5Kg |
| Operating temperature | Charging: 0℃~45℃ Discharge:-10℃~+60℃ |
| Storage temperature | -10℃-40℃ Recommend 25±5℃ Storage capacity should be 40%~50% full charge capacity |
| Appearance | Without scratch, distortion, contamination and leakage |
| Overcharge Voltage | 3.75±0.05V(Single Cell Monitoring) |
| Over Discharge Cut Off Voltage | 2.5V±0.1V(Single Cell Monitoring) |
| Over Current | 150-200A(Instantaneous Current) |
| Short Circuit | External Short-circuit Protection)Self-recovery after Disconnection) |
| Operating Consumption Current | 50uA(MAX) |
| NTC Resistor | / |
| ESD Test | ±4KV |
| Discharge Current | ≤60A |
| The factory Voltage | 12.8-13.6V |
Outline Drawing

Application
Toys, Home Appliances, Golf Carts, Electric Folklifts, Solar Energy
Storage Systems, Electric Forklifts, RV Systems and so on.
Battery Quality:
-----Support OEM & ODM.
-----High energy density ,light weight and Easy installation.
-----Fast charge, full charge in 1~3 hours.
-----Perform 3500+ cycles, design life over 10 years .
|
