Product description
Application:
Jack Truss Connector. Adjustable from 0° to 90°
(shipped with 135° bend). Nail hole locations allow for
easy installation.

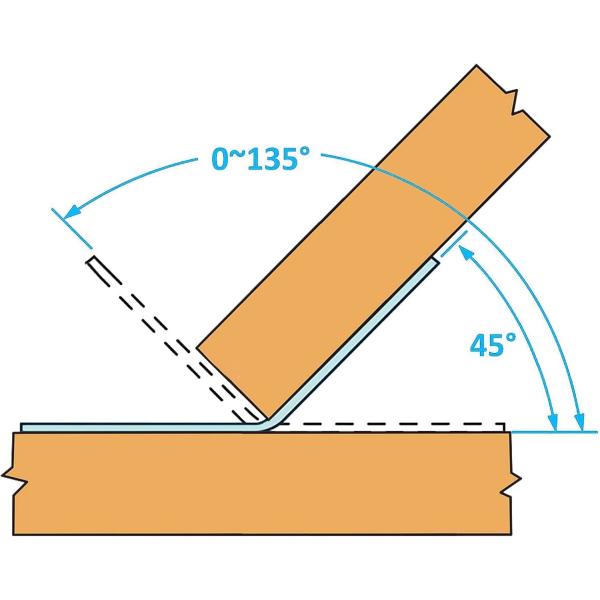

Position the jack truss on the inside of the bend line with the end
of the jack truss flush with the bend line. Bend the skewed nail
plate to the desired position (one bend cycle only).
Specification:
Material: Carbon Steel Q235B
Surface Treatment: Hot Dip Galvanized
Appearance: smooth surface and edges without burrs
Color: Silver
Adjustable from 0° to 90°(shipped with 135°
bend)
Thickness: 1.5mm(16 Gauge)
Length: 3 1/2"(88mm)
Width: 3 3/8"(86mm)
20 Nail Holes Diameter: Ø4mm, Apply M4 screw
Weight: 6 oz(170g)-1 piece, 4 lb(1.82kg)-10 pieces
Package Content:
10 x Jack Truss Connector
FAQ
1,Q: Are you trading company or manufacturer?
A: We are factory and manufacturer.
2,Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is
20-30 days if the goods are not in stock, it is according to
quantity.
3,Q: Do you provide free samples ?
A: Yes, the sample is free.
4,Q: What is your terms of payment ?
A:30% T/T in advance,70% before shipment.
5.Could you make custom size and OEM packing?
Yes, we could make custom metal products and OEM package according
to your design.
6,Q:What's your main products?
A:Our main products include gang nail plates,knuckle nail
plates,strip brace,joist hanger,and other timber connectors.
The products and packages could be customized according to your
requirements.
7,Q:for your timber connector, what material grade will be used?
A: G300-Z275 galvanized sheet or stainless steel (Accept custom
Service).
8, Q:What's the material thickness of your products?
A:0.6mm to 10mm
3,How many years has your factory been in the field of wooden
building fittings?
-We have been in this field for 15 years, and we have 5 engineers,
10 technicians, and 200 employees;
