| Categories | Suspension Air Spring |
|---|---|
| Brand Name: | GUOMAT |
| Model Number: | 2B6926 |
| Certification: | ISO/TS16949, ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Model NO.: | W01-358-6926 |
| Condition: | 100% Brand-New |
| Function: | Reduce Shock |
| Trademark: | GUOMAT |
| Type: | Gas-Filled |
| Structure: | Double Convoluted |
| Gas Hole: | 1/4 NPTF |
| Contitech: | FD 200-19 |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

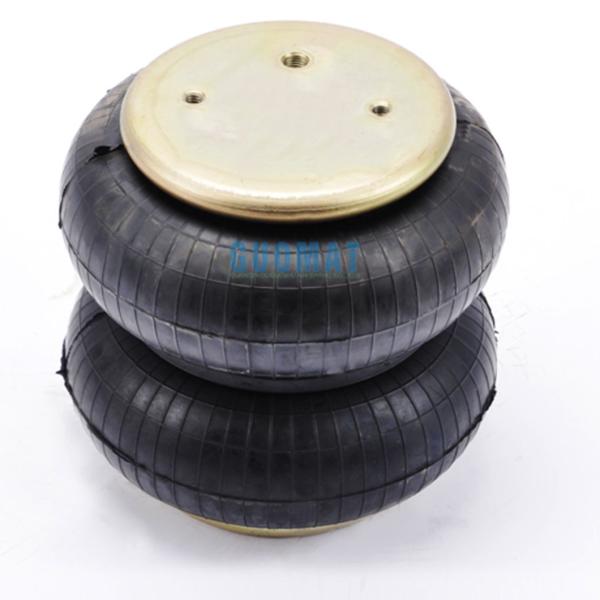

Best Warranty Firestone W01-358-6926 Industrial Air Spring Convoluted Air Actuator
| Product Name | W01-358-6926 Air Suspension Airbag |
| Working Temperature | -40ºC bis +70ºC |
| Failure Testing | ≥3 millions |
Technical data | Top Cover Plate Diameter:160mm |
| Bottom Cover Plate Diameter:160mm | |
| Gas Hole / Air inlet:1/4NPTF | |
| Rubber Bellows Diameter:224mm(MAX.251mm) | |
| The Working Stroke:MAX 274mm to MIN 95 mm | |
| Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw and Air Hole Distance of Top Cover Plate:38mm | |
| Screw Center Distance of Top Cover Plate:89mm | |
| Screw Center Distance of Bottom Cover Plate:89mm | |
Notice | These air suspension bags are aftermarket ones.They will replace the original air spring bags. -Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts. -Instruction isn't included.Professional installation is recommended. -Contact us please for whatever we can help |
Fire-stone:W01-358-6926,W013586926
Contitech:FD 200-19 504,161299
Triangle : 6325/4504
Original Parts
RR Load : LS20
Product Applications
Six Reasons to Choose Us
| 1.Hight stability |
| 2.In situ installation |
| 3.Ride comfort |
| 4.Safe and durable |
| 5.Effective shock absorption |
| 6.Reduce the sound |

|
