New Firestone W21-760-0335 Air Bag Double Convoluted Air Suspension A01-760-0335

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 2B0335
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 2B0335
Pressure Ability: 0.2-0.8 M PA
Air Inlet: 3/8NPT
Cover Plate Dia: 132 mm
Warranty: One Year
Structure: Double Convoluted
Operation: Gas-Filled | Customized Request
Sample: Available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

New Firestone W21-760-0335 Air Bag Double Convoluted Air Suspension A01-760-0335

New Firestone W21-760-0335 Air Bag Double Convoluted Air Suspension A01-760-0335


Product Information

Top Cover Plate Screw (Nut) Tooth2X3/8-16UNC
Screw Center Distance of Top Cover Plate70 mm
Bottom Cover Plate Screw (Nut) Tooth2X3/8-16UNC
Screw Center Distance of Bottom Cover Plate70 mm
Gas Hole / Air inlet3/8NPTF
Top Cover Plate Diameter (Width)132 mm
Bottom Cover Plate Diameter (Width)132 mm
Rubber Bellows Natural Diameter203mm
Rubber Bellows Natural Height180 mm
Working Stroke75MM-230MM
With Girdle HoopOne Piece of Girdle Hoop

GUOMAT: 2B0335 Cross others OEM

  • Firestone

W21-760-0335, W21 760 0335, W217600335

A01-760-033, A01 760 033, A01760033

  • GUOMAT

2B0335

Prodct Applications

Air Springs are a type of suspension system that uses compressed air as a cushioning medium. They are commonly used in various applications, including vehicles, heavy machinery, and industrial equipment. Here are some of the key features and functions of air springs:


1. Adjustable Load Capacity: Air springs can be easily adjusted to accommodate different load capacities. This makes them suitable for vehicles that carry varying loads, such as buses, trucks, and trailers.


2. Comfortable Ride: The use of compressed air as a cushioning medium provides a smooth and comfortable ride. This is especially beneficial for long journeys and for vehicles that travel over rough terrain.


3. Improved Stability: Air springs help improve the stability of a vehicle by absorbing shocks and vibrations. This is particularly important for heavy vehicles, as it helps prevent excessive bouncing and rolling.


4. Space-saving Design: Air springs have a compact design that takes up less space than traditional coil springs. This makes them suitable for use in vehicles with limited space, such as buses and trucks.


5. Easy Installation and Maintenance: Air springs are relatively easy to install and maintain. They do not require special tools or equipment, and can be easily replaced if they become worn or damaged.


6. Longevity: Air springs are designed to be durable and long-lasting. With proper maintenance, they can provide reliable performance for many years.


7. Versatility: Air springs can be used in a wide range of applications, from passenger vehicles to heavy machinery. They are also available in various sizes and shapes to suit different needs.


In summary, air springs offer a number of benefits, including adjustable load capacity, comfortable ride, improved stability, space-saving design, easy installation and maintenance, longevity, and versatility. These features make them a popular choice for a wide range of applications.

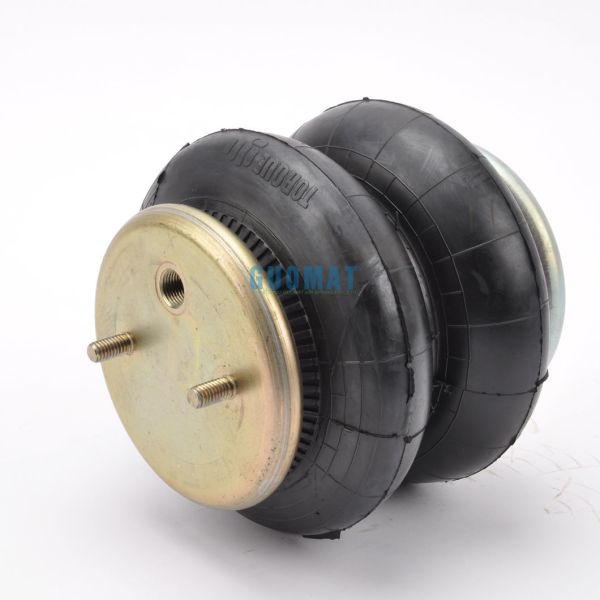

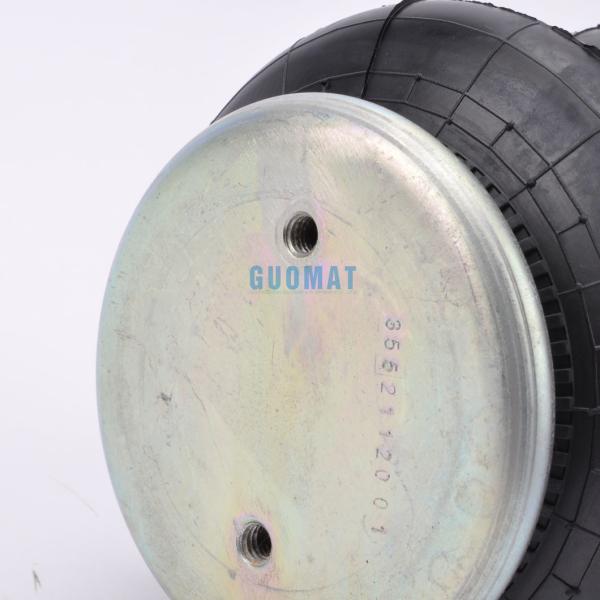

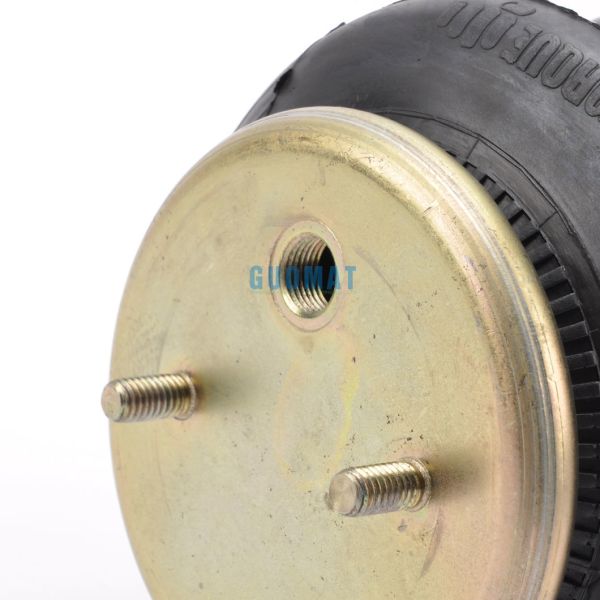

The Real Picture

W217600335 Fire Stone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs

W217600335 Fire Stone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs
W217600335 Fire Stone Air Springs A01-760-0335 Plate Screw 2X3/8-16unc Air Helper Springs
