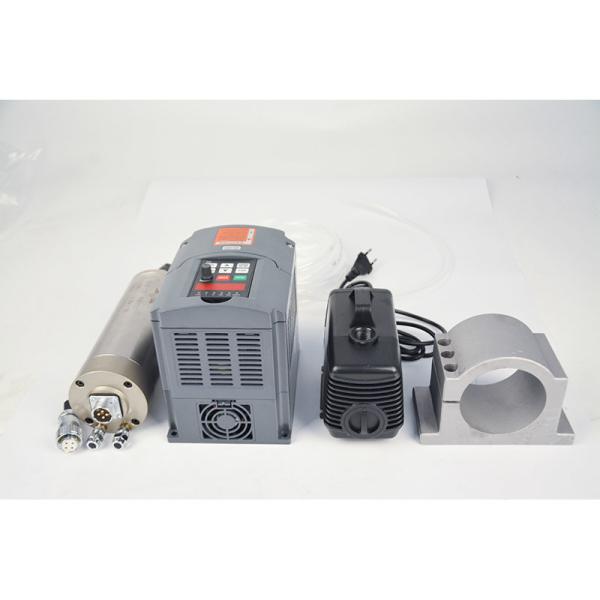

US Stock 2.2KW Water Cooled Spindle Kit ER20 24000rpm With 2.2KW VFD Inverter 80mm Clamp

2.2KW Water Cooled Spindle Motor Kit ER20 24000rpm 400Hz+2.2KW VFD Inverter Variable Frequency Driver+80mm Clamp

Good News: We have warehouse in some countries, check as bellows

Oversea warehouse-Fast Shipping-Free VAT Tax
Warehouse location	Shipping Carrier	Delivery Countries	Delivery Time	Advandge
Germany&Czech Republic	DHL/GLS	EU Countries	3-12 Business days	1. Fast Delivery 2. No VAT Tax
United States	UPS/USPS	United States only	3-12 Business days	1. Fast Delivery 2. No VAT Tax

Package include:

1 x 2.2KW Water Cooled Spindle Motor ER20 (80x200mm,110V, 400Hz, 24000rpm, 4 bearings)
1 x HY 2.2KW Inverter VFD 110V
1 x 80mm Aluminium Bracket Clamp
1 x 80W Water Pump 110V
1 x 6m Water Pipe
1 Set 14pcs ER20 Collets (1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm each 1pcs)
English user manual of the inverter

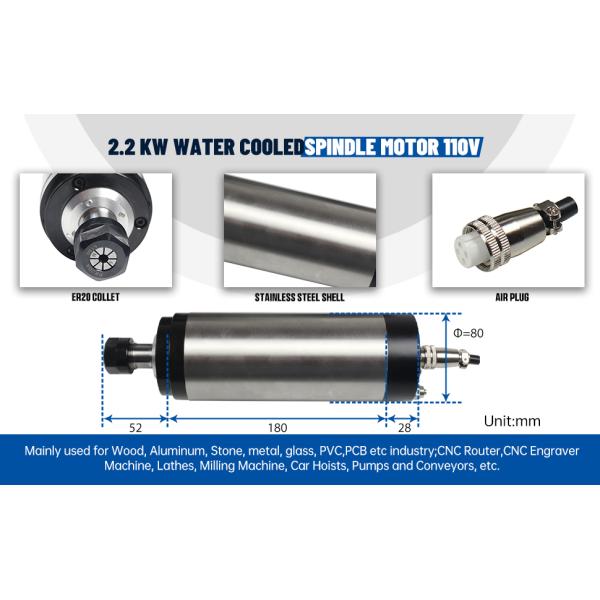

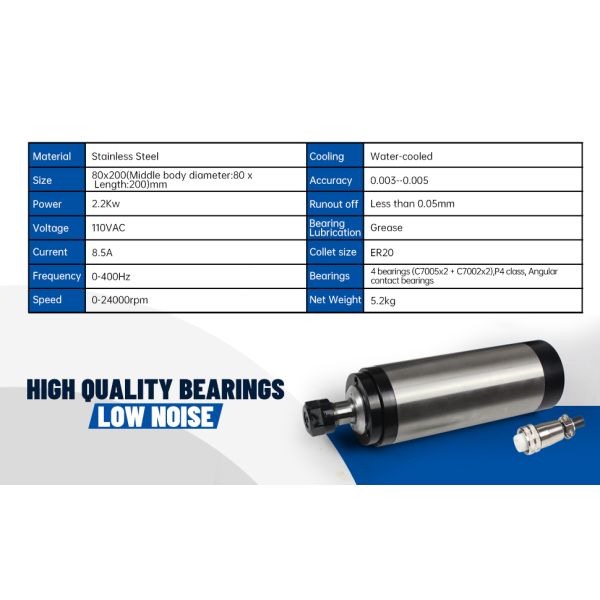

2.2KW 110V Water cooled spindle motor

Material: Stainless Steel

Size: 80x200mm(Middle body diameter:80mm x Length:200mm)

Power: 2.2KW

Voltage: 110VAC

Current: 8.5A

Frequency: 0-400Hz

Speed: 0-24000rpm

Cooling: Water-cooled

Accuracy: 0.003--0.005

Runout off: Less than 0.05mm

Bearing Lubrication: Grease

Collet size: ER20

Bearings: 4 bearings (C7005x2 + C7002x2),P4 class, Angular contact bearings

Net Weight: 5.2kg

Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground.

Main applications:

Wood,PMMA or other plastic,Urethane foam,MDF board,Native wood,PVC,PCB,Acrylic,Composite board plywood,Aluminum,Stone,Metal,Brass,Glass etc.
Widely used to process or make adverstising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
This spindle motor kit applied to CNC Router,CNC Engraver Machine, Lathes, Milling Machine, Car Hoists, Pumps and Conveyors, etc.

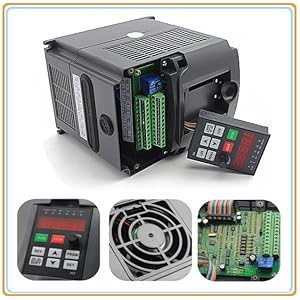

2.2KW 110V VFD

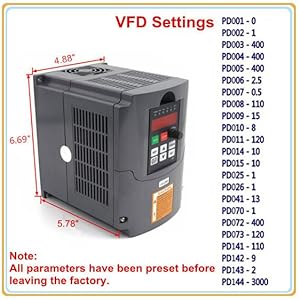

Product Feature: 1) Input Voltage: 110V(+/-15%) , 2) Output Voltage: 100V/AC-120V/AC 3) Input Frequency: 48-63 Hz 4) Output Frequency: 0-400 Hz 5) Input Phase: 1 phase 6) Output Phase: 3 phase 7) Output Current: 20A 8) Model: HY02D211B 9) Horsepower: 3HP	Advantages 1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability; 2)Easy PLC function can realize 16 legs of speed and inverter control function; 3)With extremely strong anti-jamming capability; 4)Low output ratting torque0.5HZ-150%, low speed running ability; 5)Carrier adjustable by 16KHZ, completely soundless working environment; 6)Broad voltage working area, normal running in 100V-120V;	Inverter parameter setting 7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability; 8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes; 9)With perfect error protection and short circuit starting protection capability; 10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm); 11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication.

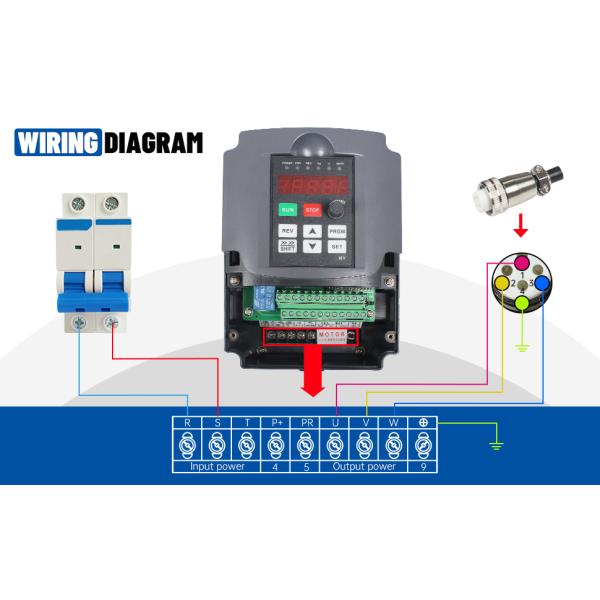

Wiring:

Spindle's pin 1=U

Spindle's pin 2=V

Spindle's pin 3=W

Spindle's pin 4=Ground

Pls connect the 110V AC power supply input wires to the R & T terminals.

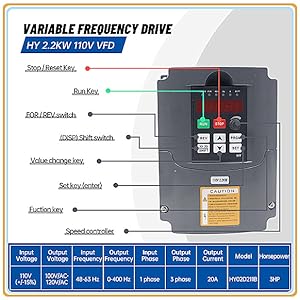

Definition of the VFD buttons

UP: Progressively increase data or function codes.
DOWN: Progressively decrease data or function codes.
SET: Enter menus step-by-step, save setting parameters.
PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key

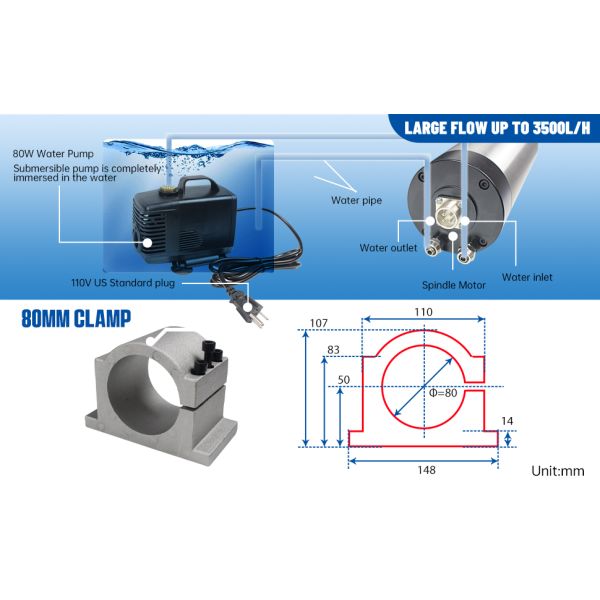

80W water pump 3.2m 110VAC & 6m water pipe

Pump lift length: 3.5m
Plug: 110V US Standard plug
Voltage:105-125VAC
Power: 80W strong power
Flow:3500L/H
Size: 153x88x108mm
Water nozzle diameter:8mm
Rubber suction cups can be a good fit in the glass surface, to help keep it stability

80mm clamp cast aluminium bracket

Diameter: 80mm
Material: High quality cast aluminum (strength is higher than aluminum alloy)
Screws:come with 3pcs installation screws

Full set ER20 collet:

Product Description

Out dia (D1):11.5mm
Height (H):18mm
Hole dia (D2): 1-13mm
Run-out tolerance 0.1mm
First class 1065 carbon steel
Hardened and precision ground

Size:

(comes with 1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm each 1pcs)

total are 14pcs ER20 collets in the parcel.
