| Brand Name: | AIRSUSTECH |
| Model Number: | 2B7070 |
| Certification: | ISO/TS16949:2009 |
| Place of Origin: | Guangzhou,China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal or Others |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Product Number: | 2B7070 |
| Other OEM NO.: | Festo 36491 |
| Bellow Type: | Double Convoluted |
| Design Height: | 162 MM |
| Screw Type: | 2×M8 |
| Material: | Rubber And Steel |
| Warranty: | 12 Months |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Description
AIRSUSTECH rubber pneumatic tire is an indispensable accessory for self-powered type. Its main function is to reduce the working pressure of the pneumatic valve and stabilize it at a value, so that the door can obtain a stable pneumatic valve output power for adjustment and operation.
Product Specifications
| Top Cover Plate Diameter | 105 MM |
| Screw Center Distance of Top Cover Plate | 44.5 MM |
| Bottom Cover Plate Diameter | 105 MM |
| Screw Center Distance of Bottom Cover Plate | 44.5 MM |
| Gas Hole | G 1/4 |
| Rubber Bellow Natural Diameter | 146 MM |
| Design Height | 160MM |
Product Techniacal Data
Force F[kN]
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 |
| Height H[mm] | 180 | 1.6 | 2.3 | 2.9 | 3.5 | 4.1 | 4.7 |
| 160 | 2.4 | 3.2 | 3.9 | 4.7 | 5.6 | 6.4 | |
| 140 | 2.9 | 3.9 | 4.8 | 5.8 | 6.8 | 7.8 | |
| 120 | 3.4 | 4.5 | 5.7 | 6.8 | 7.9 | 9.2 | |
| 100 | 3.9 | 5.2 | 6.5 | 7.8 | 9.1 | 10.4 | |
| 80 | 4.3 | 5.7 | 7.1 | 8.5 | 10.0 | 11.4 |
Other OEM Number
| Festo 36 491, 36494 |
| Festo EB-165-125, EB 165 125, EB165125 |
Support and Services

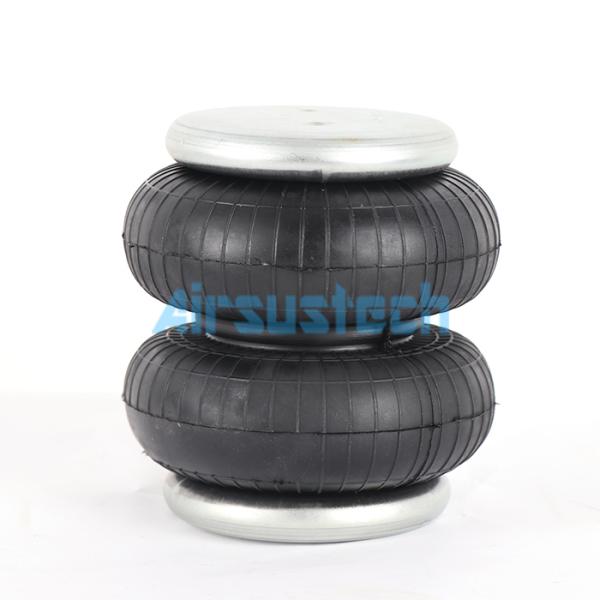

The Drawing And Real Pictures of 2B7070


|
