14X-49-11600 14X4911600 Pump Assy Excavator Hydraulic Pump Fit KOMATSU D60P D61E D61EX

• 14X-49-11600 14X4911600 Pump Assy Excavator Hydraulic Pump Fit KOMATSU D60P D61E D61EX

• Spec Sheet

• Appliion

BULLDOZERS D60P D61E D61EX D61PX D63E D65E D65EX D65P D65PX D65WX D70LE D85E D85ESS
CRAWLER LOADERS D68ESS D85ESS
ROLLERS JT150 Komatsu

• More pump parts fit for KOMATSU machinery

705-41-01050 PUMP ASS'Y

D155A, D60P, D65E, D65EX, D65P, D65PX, D85E, D85ESS

705-11-33210 PUMP ASS'Y,(SAL(2)45)

D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS

705-11-33530 PUMP ASS'Y,(SAL(2)45)

D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS

705-41-01320 PUMP ASS'Y,(SBR(1)10)

D60P, D65E, D65EX, D65P, D65PX, D85E, D85ESS

705-11-40010 PUMP ASS'Y,SAL(3)100

D60P, D65E, D65P, D70LE, D85E, D85ESS

705-51-20370 PUMP ASS'Y,(SAL(2)45+45)

D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS

705-11-36010 PUMP ASS'Y

D61E, D61EX, D63E, D68ESS, HD205

705-41-01200 PUMP

D61E, D61EX, D61PX, D65E, D65EX, D65P, D65PX, D68ESS, D70LE, D85E, D85ESS

705-11-40010 PUMP ASS'Y,SAL(3)100

D60P, D65E, D65P, D70LE, D85E, D85ESS

705-11-38010 PUMP ASS'Y,SAL(3)080

D60P, D65E, D65P, D70LE, D85E, D85ESS

705-30-31203 PUMP ASS'Y

D60A, D60P, D60PL, D60S

07430-72301 PUMP ASS'Y,MAIN CLUTCH (FAR032)

BF60, D60A, D60E, D60F, D60P, D60PL, D70, D70LE

07433-72400 PUMP ASS'Y,STEERING (FAR045)

BF60, D60A, D60E, D60F, D60P, D60PL, D70, D70LE

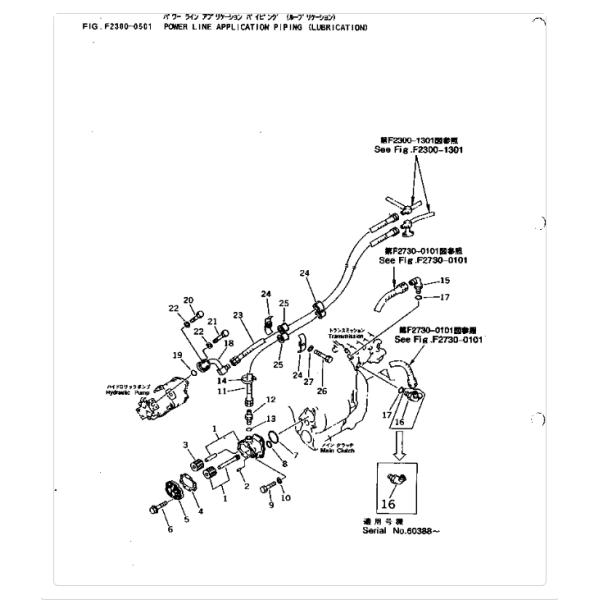

• Parts List Diagram

Pos.	Part No	Qty	Parts name	Comments
	14X-49-11600	[1]	PUMP ASS'Y Komatsu OEM	5.52 kg.
			["SN: 60001-60883"] |1.
2	TP15-2206124	[1]	PIN Komatsu China
			["SN: 60001-60883"]
4.	TPA50164010A	[1]	PACKING Komatsu	0.009 kg.
			["SN: 60001-60883"]
6.	TP0812082562	[8]	BOLT Komatsu China
			["SN: 60001-60883"] analogs:["RTP0812082562"]
7	07000-72080	[1]	O-RING Komatsu China	0.03 kg.
			["SN: 60001-60883"] analogs:["0700062080", "R0700072080"]
8	07000-73038	[1]	O-RING Komatsu China	0.002 kg.
			["SN: 60001-60883"] analogs:["0700063038", "R0700073038"]
9	01010-51235	[3]	BOLT Komatsu	0.048 kg.
			["SN: 60001-60883"] analogs:["0101081235", "01010E1235", "801015136"]
10	01643-31232	[3]	WASHER Komatsu	0.027 kg.
			["SN: 60001-60883"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
11	07102-20612	[1]	HOSE Komatsu China	1.48 kg.
			["SN: 60001-60883"]
12	07230-20628	[1]	UNION Komatsu	0.26 kg.
			["SN: 60001-60883"] analogs:["0723010628"]
13	07002-32434	[1]	O-RING Komatsu	1.1 kg.
			["SN: 60001-60883"] analogs:["0700222434", "R0700232434"]
14	08034-00536	[1]	BAND Komatsu	0.004 kg.
			["SN: 60001-60883"]
15	07235-50628	[1]	ELBOW Komatsu	0.4 kg.
			["SN: 60001-60883"]
16	14X-49-13211	[1]	ELBOW Komatsu China
			["SN: 60388-60883"]
	14X-49-13210	[1]	ELBOW Komatsu China
			["SN: 60001-60387"] |16.
18	14X-49-11320	[1]	TUBE Komatsu China
			["SN: 60001-60883"]
19	07000-73030	[1]	O-RING Komatsu	0.001 kg.
			["SN: 60001-60883"] analogs:["0700063030", "R0700073030"]
20	01010-50835	[2]	BOLT Komatsu	0.019 kg.
			["SN: 60001-60883"] analogs:["0101080835"]
21	01010-50850	[2]	BOLT Komatsu	0.025 kg.
			["SN: 60001-60883"] analogs:["0101080850"]
22	01643-50823	[4]	WASHER Komatsu	0.01 kg.
			["SN: 60001-60883"] analogs:["0164370823"]
23	07102-20610	[1]	HOSE Komatsu China	1.35 kg.
			["SN: 60001-60883"]
24	07094-20620	[4]	CLAMP Komatsu	0.205 kg.
			["SN: 60001-60883"] analogs:["0709430620"]
25	07095-00628	[4]	CUSHION Komatsu	0.045 kg.
			["SN: 60001-60883"]
26	01010-51270	[2]	BOLT Komatsu	0.078 kg.
			["SN: 60001-60883"] analogs:["0101081270"]

• Description

The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.

Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .

• Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance

• Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
