| Categories | Needle Roller Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | RCB 061014 |
| Place of Origin: | CHINA |
| MOQ: | 500 |
| Price: | 1-50USD/PC |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PCS |
| Delivery Time: | 45 days |
| Packaging Details: | neutral |
| Inner diameter: | 9.525mm |
| Outer diameter: | 15.875mm |
| Driving Torgue: | 4.83Nm |
| Type: | Needle |
| Weight: | 16.2g |
| Precision Rating: | P6 |

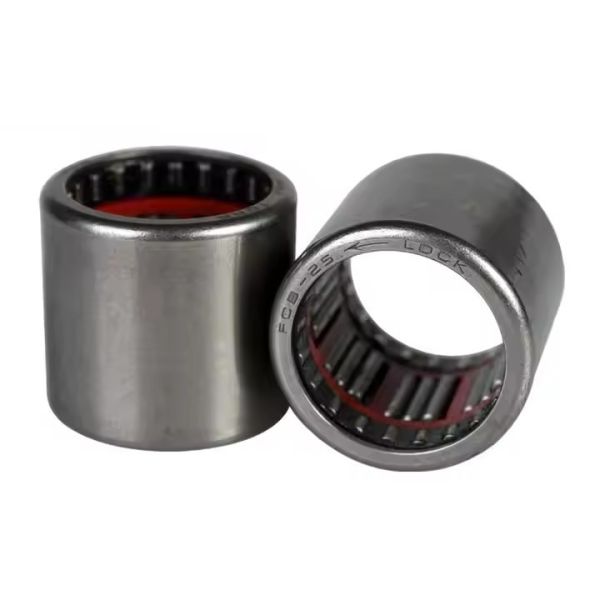

RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Features of RC Needle roller bearing
♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .
Catalogue of RC needle roller bearing for your choice

| Bearing Designation | Mass Approx | Designation | |||
| Fw | D | C | Torque | ||
| g | mm | Nm | |||
| RC02 | 2 | 3.175 | 7.15 | 6.35 | 0.32 |
| RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 2.03 |
| RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 2.03 |
| RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 5.45 |
| RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 5.45 |
| RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 8.84 |
| RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 8.84 |
| RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 16.9 |
| RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 16.9 |
| RC121610 | 16.2 | 19.05 | 25.4 | 15.88 | 23.3 |
| RC121610-FS | 16.2 | 19.05 | 25.4 | 15.88 | 23.3 |
| RC162110 | 17 | 25.4 | 33.338 | 15.88 | 49.6 |
| RC162110-FC | 17 | 25.4 | 33.338 | 15.88 | 49.6 |
| RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
| RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
|
