| Categories | Needle Roller Bearing |
|---|---|
| Brand Name: | SFT |
| Model Number: | HFL283625 |
| Place of Origin: | CHINA |
| MOQ: | 500 |
| Price: | 1-50USD/PC |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PCS |
| Delivery Time: | 45 days |
| Packaging Details: | neutral |
| Bore Size: | 26.5 - 26.50001 mm |
| Material: | Chromium steel |
| Shaft Dia.: | 26.5mm |
| Type: | Needle |
| Weight: | 65g |
| Precision Rating: | P6 |
| Tolerance grade: | ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5) |

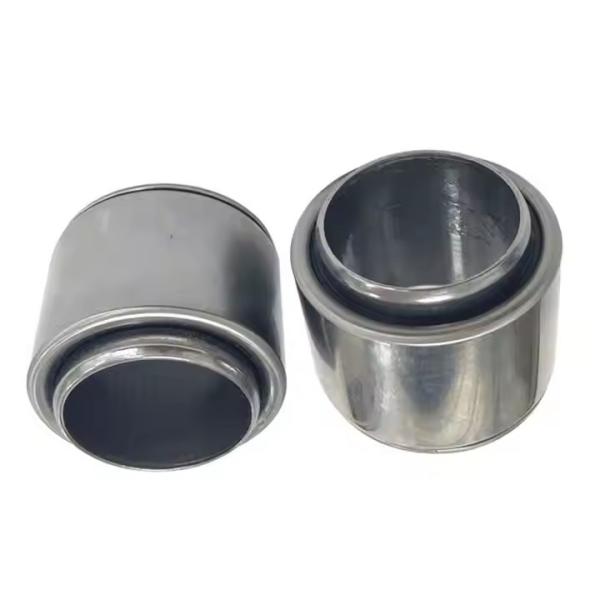

Description of HFL283625 Drawn Cup Roller Clutch
| Model | HFL283625 |
| Bore size (mm) | 26.5 |
| Outer race size (mm) | 28 |
| Thickness (mm) | 36 |
| Weight (g) | 48 |
Introduce of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
HFL,FCB,RCB (coupling and bearing assembly): The supporting bearing installs in the roller pin coupling's both sides and withstands the radial load, those who take the supporting bearing is the roller pin and the plastic retainer module.
Parameter of HFL series One Way Heavy Duty Full Complement Needle Roller Bearing
| Shaft Diameter | Clutch Designation | Mass Approx |
Borndary Dimensions | Torgue Ma | Basic Load Ratings | ||||||
| Limiting Speed | |||||||||||
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | C | Co | |||||
| KN | |||||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| HFL | |||||||||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
|
