15° Narrow Beam LED Lens with PC Material and 88% Efficiency for Down Light

Categories	LED Lighting Lens
Brand Name:	Wisertop
Model Number:	WT-45@16-AVG15-L9
Certification:	Rohs
Place of Origin:	China
MOQ:	1pc
Price:	Shenzhen Wisertop Technology Co.,Ltd
Supply Ability:	100,000 day
Delivery Time:	1-2 weeks
Packaging Details:	Master carton
Light source:	Osram COB
Material:	PC
Working temperature:	-40°C~+90°C
Certificates:	Rohs
Lens type:	TIR Les
Efficiency:	88%

Contact Now

Add to Cart

Company Info.

Shenzhen wisertop optics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Narrow Beam Led Lens 15 Degree Match Osram COB Lens For Down Light

Product Overview

PC material narrow beam angle 15° match Osram COB Lens for down light diameter 45mm Lens

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Material

PC material

Features

Low glare
Natural light cutting, merging into nature
Wide viewing angle distribution, full and uniform
Clean, integrated and uniformly distributed deep anti-glare light distribution type

Compatible COB Light Sources

Cree, Luminus, Bridgelux, Citizen, and others

Specifications

Part No	Light-emitting Surface	FWHM	Size (mm)	Typ. Eff	Material
WT-45@16-AVG15-L9	¢6mm COB	15°	φ44.8×16	88%	PC
WT-45@16-AVG24-L9	¢9mm COB	24°	φ44.8×16	88%	PC
WT-45@16-AVG36-L9	¢9mm COB	36°	φ44.8×16	88%	PC
WT-45@16-AVG45-L9	¢9mm COB	45°	φ44.8×16	88%	PC
WT-45@16-AVG55-L9	¢9mm COB	55°	φ44.8×16	88%	PC
WT-45@16-AVG60S-COBL9	¢9mm COB	60°	φ44.8×16	88%	PC

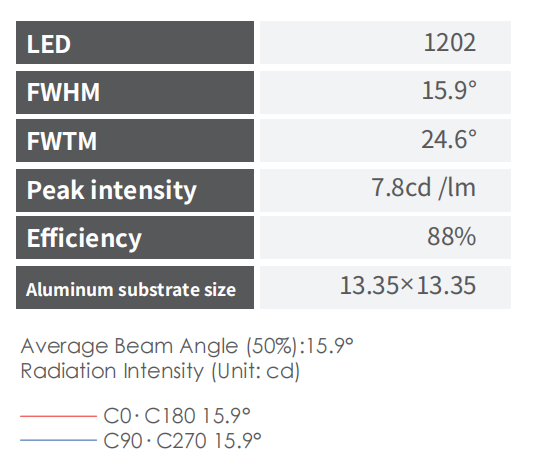

Product Images

Frequently Asked Questions

1) Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

2) When can I get the quotation?

We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP, please call us or email us.

3) What is the lead time?

Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.

4) What are your main products?

Our main products are indoor lenses.
