Name: Moistureproof Smart Control LED Lens with 93 Efficiency for Spot and Down Lights
Brand: Wisertop
Price: 1 USD

Home > Supplies and Equipment >

Moistureproof Smart Control LED Lens with 93% Efficiency for Spot and Down Lights

Categories	Color Mixing LED Lens
Brand Name:	Wisertop
Model Number:	WT-29@14-M15ECOBL6-C2
Certification:	Rohs
Place of Origin:	China
MOQ:	1pc
Price:	Shenzhen Wisertop Technology Co.,Ltd
Supply Ability:	100,000 day
Delivery Time:	1-2 weeks
Packaging Details:	Master carton
Material:	PMMA
Lens type:	TIR Lens
Efficiency:	93%
Certificates:	Rohs
Working temperature:	-40°C~+70°C
Light source:	Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

Add to Cart

Company Info.

Shenzhen wisertop optics Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Moistureproof Smart Control LED Lamp Lens Diameter 25mm 93% Efficiency

RGBW Color Mixing Lens - PMMA Material Smart Control Lamp

Lens diameter: 25mm

Applications

Lens Material

PMMA material available

Lens Features

Excellent color mixing characteristics compatible with various two-color chip arrangements and multi-color arrangement light sources
Minimal lamp color drift after lens application; single color light source color drift no more than 0.5SDCM
Clearly distinguishable light angles at different views
Soft and comfortable auxiliary lighting characteristics with no light exposure in spot center
No stray light after light cutoff, providing clean and comfortable illumination
Natural light interception for better lamp fit in space

Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

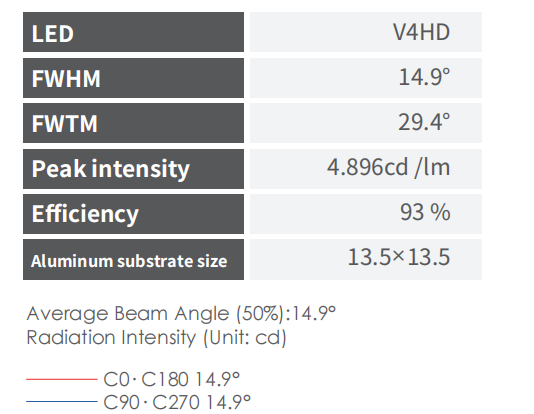

Product Specifications

Part No	Light-emitting Surface	FWHM	Size (mm)	Typ. Eff	Material
WT-29@14-M15ECOBL6-C2	¢3/¢4mm COB	15°	φ28.8×14.5	93%	PMMA
WT-29@14-M15ECOBL6-C2(PC)	¢3/¢4mm COB	15°		88%	PC
WT-29@14-M24JCOBL6-C2	¢4mm COB	36°		88%	PMMA
WT-29@14-M24JCOBL6-C2(PC)	¢4mm COB	24°		93%	PC
WT-29@14-M36COBL6-C2	¢4mm COB	24°		88%	PMMA
WT-29@14-M36COBL6-C2(PC)	¢4mm COB	36°		93%	PC
WT-29@14-M50COBL6-C2	¢4mm COB	36°		88%	PMMA
WT-29@14-M50COBL6-C3(PC)	¢4mm COB	50°		93%	PC

Frequently Asked Questions

Can I have a sample order?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

When can I get the quotation?

We usually provide offers within 12 hours after receiving your inquiry. For urgent requests, please call or email us.

What is the lead time?

Samples require about 3-5 days for preparation. Mass production typically takes 1-2 weeks.

What are your main products?

Our main products are indoor lenses.
