Corrugated Roof Sheet Making Maquina Para Hacer Teja Floor Deck Roll Forming Machine

Product Description

It can process various types of metal plates, such as galvanized steel plates, color-coated steel plates, etc., to meet the performance and appearance requirements of floor decking in different construction projects. At the same time, according to different plate materials and thicknesses, the equipment can automatically adjust the forming parameters to ensure good forming effects.

Main Technical Parameters

Working Flow

Decoiling → Material Feeding → Roll Forming → Cutting → Collecting

Component & Technical Parameters

his part is used to support Coil.

And make the coil in a rotary way.

Bearing capacity: 5T

Inner diameter: 470-530mm

(adjustable according to demand.)

In order to avoid damage to the machine by impact when the machine is running, we have installed a brake device for you.

Hydraulic Pump Station

The purpose of this pump station is to drive the cutter to start cutting works.

The hydraulic tank use 46# hydraulic oil.

Equipped with a cooling fan which can internal circulation cooling, to ensure the oil pump station will not be affected by high oil temperature during working.

Touch Screen Control Cabinet

The control cabinet has two modes, automatic and manual modes.

The unit length of the targeted sheet and quantity can be set in the touchscreen.

The system is simple and easy to operate.

Output Table

This part is used to collect the formed products.

The bracket is equipped with rollers to facilitate the product forwarding without being scratched.

Feeding Table

Guide the coil come into the correct position and passed to the roll forming machine.

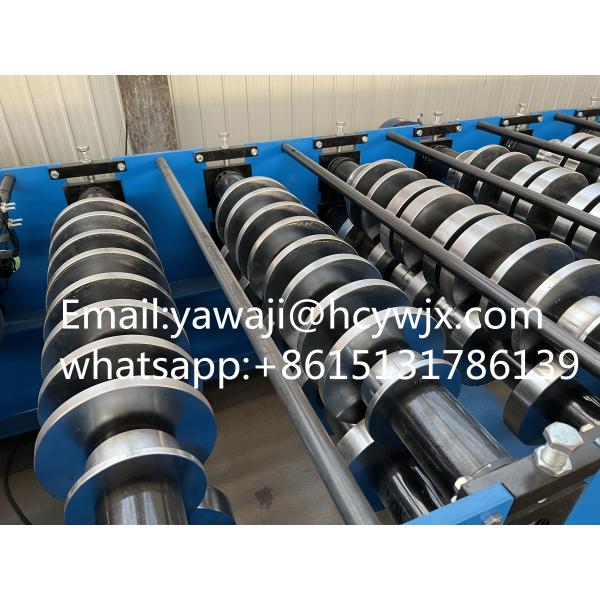

Shaft & Roller

Material is 45# Steel Quenching and Plating.

The processed rollers are smooth, hard and will not rust.

Will not leave any scratches on the sheet when working.

Cutter

The material of blade is CR12.

With high strength, better hardenability and good wear resistance.

Through the operation panel, operations such as starting, stopping, and setting parameters of the equipment can be easily achieved, reducing the requirements for the professional skills of the operator.

Our factory was founded in 1998. We have been engaged in the roll forming machine manufacturing industry over 25 years.

Main products are color steel roll forming machine, classical glazed tile forming machine, C/Z purlin roll forming machine, gutter machine, ridge cap machine, keel roll forming machine for light steel structure building, floor deck forming machine, sandwich panel production line, guardrail roll forming line; and various kinds full-automatic cold roll forming line such as cable trey production line, double C bugging rack beam production line; and other roofing machine line, like stone caoted roofing sheet prodction line.

And our factory has more than 15 years of export experience. we already sold to more than 100 countries and regions in the world. We have a deep understanding of the profiles used in each country and provide high-quality suggestions for subsequent customers' purchases.

In the production of machines, from parts processing and welding to assembly, we have strict quality control in every step. We must be responsible to every customer.
we were and continue always keep: "not only complete a machine, but also perfect every detail".

We have approved certification of CE, the concept “control every process and perfect all products” is curved in everyone’s mind. Each machine will be via testing before leaving factory, problem machines will never be delivered to customer.
We have more than 15 years experience of export and know very well about the different needs of customers from both in developing countries and developed countries, and provide a large number of customers with satisfactory design plan. Now our products have been exported to more than100 countries and regions of the world, and established a long-term cooperative relationship with clients. We do firmly believe a true partnership never ends with the delivery of the goods and satisfactory after-sales service can make a great difference.
We are willing to promote the economic and technical exchanges with the world, and do positive work to enhance the friendship between people from different countries. We sincerely hope: you and I hand in hand, create the glorious future altogether!

Choose Cangzhou Huachen Roll Forming Machinery Co.,Ltd is worth your trust.
We manufacture high standard roll forming machine for export for nearly 15 years.

Our machines have been exported to more than 100 countries and regions around the world.
Maintained good cooperative relations with customers.
