Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock

Categories Firestone Air Bags
Brand Name: AIRSUSTECH
Model Number: 3B12-304
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Trademark: AIRSUSTECH
Model NO.: 2H5126
OEM NO.: W01-358-5126
Function: Ruce Shock/Shock Absorber
Structure: Double Convoluted
The Working Stroke: 216MM
Sample: Available
Production Process: Vulcanization
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

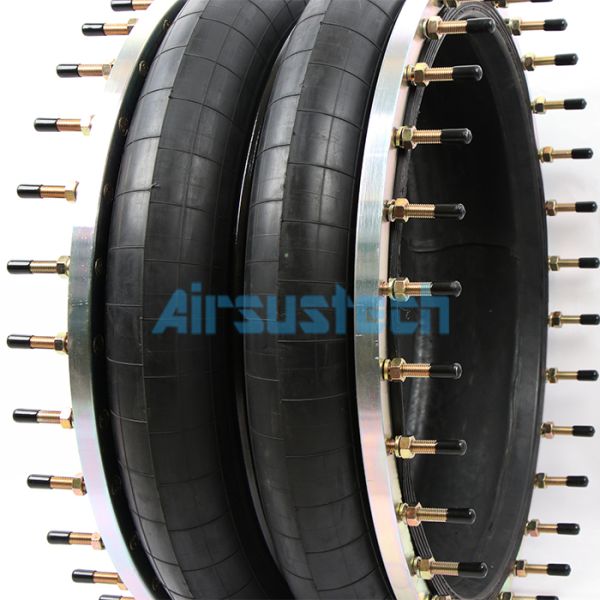

Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock

Firestone Air Rubber Bellows Only W01-358-5126 Air Suspension Effective Shock



Product Standards

  • Rubber Bellows Max. OD.: 660 MM
  • Maximum Height: 305 MM
  • Minimum Height: 89 MM
  • Full Stroke: 216 MM
  • Convoluted: Double Convoluted
  • Bellows Type: Rubber Bellows Only

Product Technical Data Sheet


Assembly Height (mm)Volume @ 7 BAR (cu cm)EFF Area @ 7BAR (cm sq)kN Force
@ 3 BAR@ 4 BAR@5 BAR@ 6BAR@ 7 BAR
26068626205759.5680.57101.22123.62143.98
24064100223765.6088.20110.53134.38156.56
22059270238470.2794.34117.99143.23166.86
20054018250374.0399.30124.00150.38175.20
18048552259977.11103.27128.85156.12181.27
16042927267879.74106.59132.92160.96187.47
140371597283582.19109.71136.77165.54192.75
12031597283584.73113.02140.90170.45198.43


Refer Number


Style 200DescriptionAssembly Order No.
Ribbed neck aluminum bead rings (equal spacing) 45mm bolts, nuts, washers

W01-M58-6979, W01 M58 6979, W01M586979

WO1-M58-6979, WO1 M58 6979, WO1M586979

Rubber bellows only

W01-358-5126, W01 358 5126, W013585126

WO1-358-5126, WO1 358 5126, WO13585126


Air Bellows Characteristics


  1. Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators.
  2. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model.
  3. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional
  4. pneumatic cylinders.
  5. All models are single acting only. The return stroke is provided in part by the natural spring action of the bellows but more usually by the load itself.
  6. The simplicity of construction provides an extremely long, virtually maintenance-free service life even under arduous
  7. conditions.
  8. Air bellows are suitable for vibration applications i.e. device feeders at high frequency

The Detailed Pictures
