Tuthill 1371 Air Bellow Pneumatic Lift 2B9-200 Goodyear Double Convoluted Type

Categories Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B6910
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
OEM Number: Contitech FD 200-19 320
Air Spring Type: Double Convoluted
MIN. H.: 3.00 Inches
MAX. H.: 10.40 Inches
Air Inlet: 1/4-18NPTF
Function: Effective Shock Absorption
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Tuthill 1371 Air Bellow Pneumatic Lift 2B9-200 Goodyear Double Convoluted Type

Tuthill 1371 Air Bellow Pneumatic Lift 2B9-200 Goodyear Double Convoluted Type


Product Introduction


Our AIRSUSTECH 2B6910 air shock suspension which can replace Firestone W01-358-6910, Contitech FD 200-19 320, Goodyear 2B9-200, Dayton 3546910, Triangle 6325, Leland Sc2011, Brake & Wheel M3501, provide 1 year warranty, use natural rubber, the quality can reach 80% to 90% of the original brand, and the price is affordable. AIRSUSTECH is your best choice.


Product Details


  • Rubber Bellow Max. Diameter: 9.80 in.
  • Minimum Height: 3.00 in.
  • Maximum Height: 10.40 in.
  • Top/Bottom Cover Plate Width: 6.31 in.
  • Air Hole: 1/4-18NPTF
  • Screw Type: 2×3/8-16UNC
  • Center to Center Distance: 3.50 in.
  • Distance Gas Hole Between Screw: 1.75 in.
  • Bellows Type: Double Convoluted

Cross References


Firestone Air Spring

W01-358-6910, W01 358 6910, W013586910

WO1-358-6910, WO1 358 6910, WO13586910

Contitech Air Spring

FD 200-19 320, FD 20019 320, FD 200 19 320

FD200-19 320, FD20019 320, FD200 19 320

Goodyear Air Spring

2B9-200, 2B9200, 2B9 200, 2B 9-200

2B9-202, 2B9202, 2B9 202, 2B 9-202

2B9-216, 2B9216, 2B9 216, 2B 9-216
578423202

Triangle Air Spring

6325, 4320

Taurus Air Spring

KF218-6910

Brake & Wheel Air Spring

M3501, M 3501

Dina Air Spring

A812719, AZ812719

Dayton Air Spring

3546910

Leland Air Spring

Sc2011

Navistar Air Spring

554783C1

Hendrickson Air Spring

S8768, 458433

Ridewell Air Spring

1003586910C

SAF Holland Air Spring

57006910

Trailers De Air Spring

133128

Tuthill Air Spring

1371

Watson&Chalin Air Spring

AS-0001, AS-0156G


The Structure of AIRSUSTECH Air Spring


1. Is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2. Assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3. According to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4. The load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.

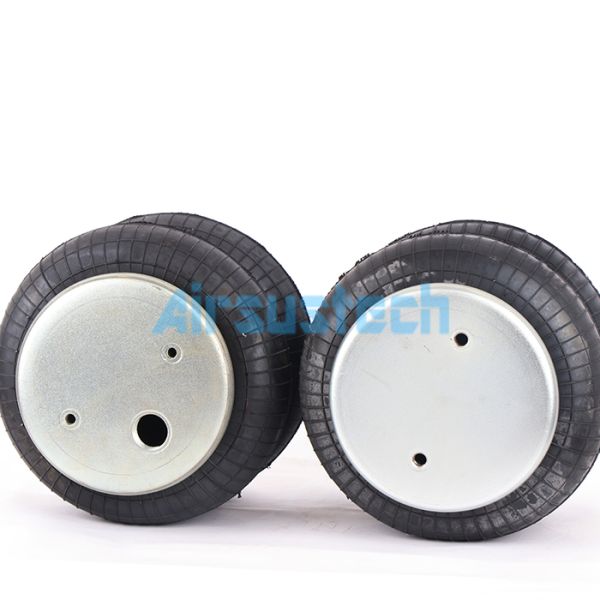

Detailed Pictures
