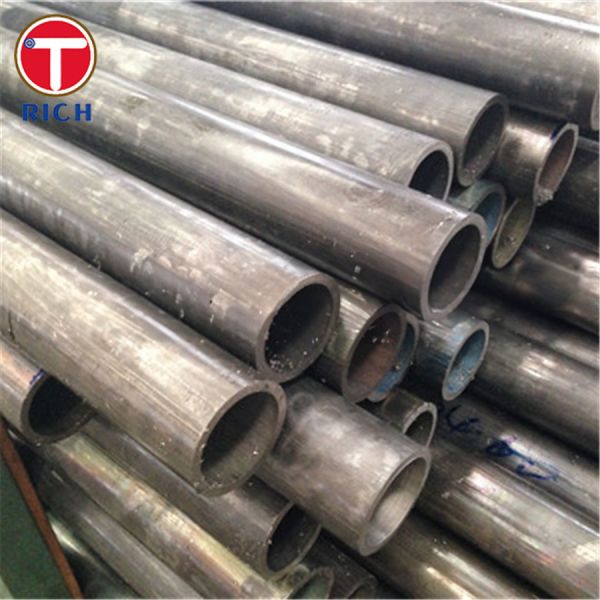

ASTM A530 Grade35 Specialized Carbon And Alloy Steel Pipe For General Requirements

ASTM A530 Grade 35 50 60 70 80 Specialized Carbon And Alloy Steel Pipe

General Requirements

ASTM A530 is a specification that outlines the general requirements for carbon and alloy steel pipes. This standard is crucial for ensuring that the pipes meet specific criteria for various applications, particularly in industries that require high strength and durability.

Material

The materials covered under ASTM A530 include various grades of carbon and alloy steel. These materials are selected based on their mechanical properties, chemical composition, and suitability for specific applications.

Specification

ASTM A530 provides guidelines for the manufacturing, testing, and quality assurance of steel pipes. It includes requirements for dimensions, tolerances, and mechanical properties, ensuring that the pipes are fit for purpose.

Key Features

• Versatility: Suitable for a wide range of applications.
• Strength: High tensile strength and durability.
• Corrosion Resistance: Enhanced resistance to environmental factors.
• Weldability: Good weldability for various fabrication processes.

Chemical Composition

Grade	Carbon (C)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)	Silicon (Si)	Chromium (Cr)	Nickel (Ni)	Molybdenum (Mo)
35	0.30 max	0.60 - 0.90	0.04 max	0.05 max	0.10 - 0.40	-	-	-
50	0.40 max	0.60 - 0.90	0.04 max	0.05 max	0.10 - 0.40	-	-	-
60	0.50 max	0.60 - 0.90	0.04 max	0.05 max	0.10 - 0.40	-	-	-
70	0.60 max	0.60 - 0.90	0.04 max	0.05 max	0.10 - 0.40	-	-	-
80	0.70 max	0.60 - 0.90	0.04 max	0.05 max	0.10 - 0.40	-	-	-

Mechanical Properties

Grade	Yield Strength (ksi)	Tensile Strength (ksi)	Elongation (%)	Hardness (HB)
35	35	60	20	120
50	50	70	20	130
60	60	80	20	140
70	70	90	20	150
80	80	100	20	160

Steel Grade

The ASTM A530 specification includes various grades, each designed for specific applications and performance requirements. The grades range from 35 to 80, with increasing strength and hardness.

Application

ASTM A530 steel pipes are widely used in various industries, including:

• Construction: Structural applications and frameworks.
• Oil and Gas: Pipelines and drilling equipment.
• Manufacturing: Machinery and equipment components.
• Automotive: Chassis and structural parts.

Possible Alternative Grades

While ASTM A530 grades are suitable for many applications, alternative grades may be considered based on specific requirements:

• ASTM A106: Seamless carbon steel pipes for high-temperature service.
• ASTM A53: General-purpose piping for various applications.
• ASTM A500: Cold-formed welded and seamless carbon steel structural tubing.
