W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 3B8006
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangdong, China
MOQ: 5
Price: Negotiable
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Structure: Triple Convoluted
Quality: 100 % Tested
Fuction: Reduce Shock
Trademark: GUOMAT
OEM NO.: Load Guard SC2132
Air Inlet: 1/4NPTF
Sample: Available | Customized Request
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches

W01-358-8006 Pneumatic Bellow by Firestone Air Spring Full Stroke 13.2 Inches


Detailed Technical Parameters: 3B8006


The top/bottom cover plate screw: 2×M10×1.5

The screw center distance of the Top cover plate: 157.5mm

The screw center distance of the bottom cover plate: 157.5 mm

Screw And Gas Hole Distance of Top Cover Plate:73mm

Top plate diameter (width): 231 mm

Diameter (width) of the bottom cover plate: 231 mm

Rubber Bellows MAX Diameter: 295mm

The Working Stroke: 297mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar

Return force to min.height: ≤400N

Overall weight with clamped plates: 5.9kg


Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar]345678Vol. V [l]
Height H[mm]3808.811.915.118.421.725.123.6
34010.714.418.222.025.929.821.6
30012.316.520.825.129.533.719.2
26013.718.222.927.632.336.916.6
22014.819.524.629.634.639.513.8
18015.921.126.531.837.242.410.7
14017.022.428.133.639.144.77.5

Refer Number


FIRE STONE: W01 358 8006

GOODYEAR: 3B12-301
FIRE STONE : W01-358-8006GOODYEAR: 3B12 301
FIRE STONE : W013588006GOODYEAR: 3B12301
CONTITECH FT: 330 29 430Goodyear: 578 93 3 100
CONTITECH FT: 33029430Goodyear: 578933100
CONTITECH FT: 330-29 430Goodyear: 578-93-3-100
FIRE STONE: FLEX 38R/38DWEFORMA WBD 500-E2
BO SCH: 822419081WEFORMA WBD 500 E2

GUOMAT Air Spring Advantages


Compared with spring, air spring shock absorbers have the following advantages

  • Excellent shock absorption
  • Stable shock absorption
  • Precise height control
  • Wide range of sizes
  • Extend equipment life
  • Effectively reduce noise
  • Air spring shock absorbers are widely used

The Related Picture of 3B8006

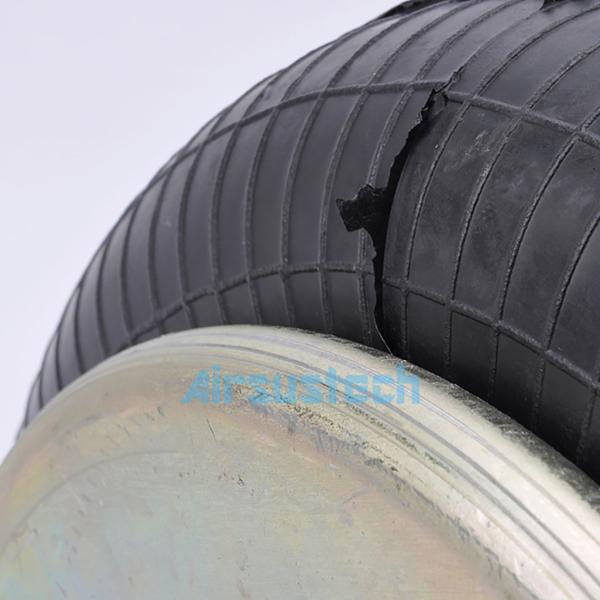

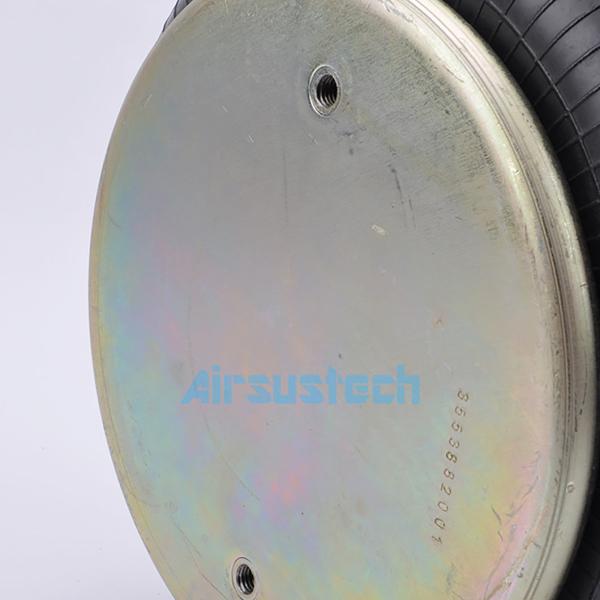

Fire Stone W01-358-8006 Triple Convoluted Industrial Air Springs


Fire Stone W01-358-8006 Triple Convoluted Industrial Air SpringsFire Stone W01-358-8006 Triple Convoluted Industrial Air Springs

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Fire Stone W01-358-8006 Triple Convoluted Industrial Air Springs


Factory Workshop


Fire Stone W01-358-8006 Triple Convoluted Industrial Air SpringsFire Stone W01-358-8006 Triple Convoluted Industrial Air Springs

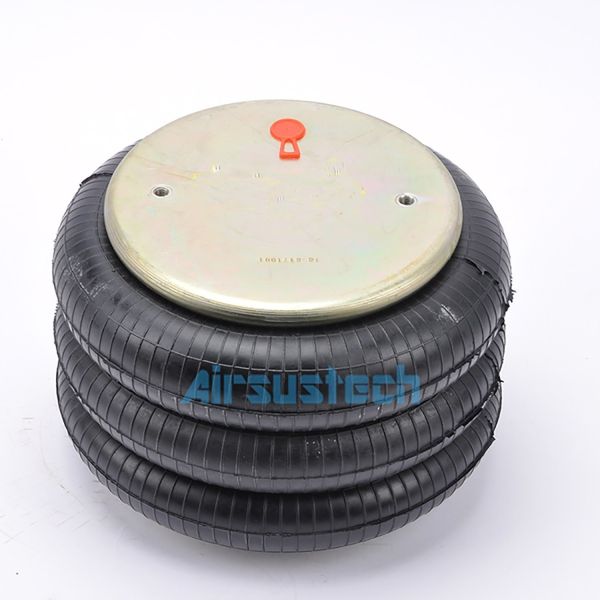

Buy W01-358-8006 Pneumatic Bellow By Firestone Air Spring Full Stroke 13.2 Inches at wholesale prices
