Home > Material Handling Equipment >

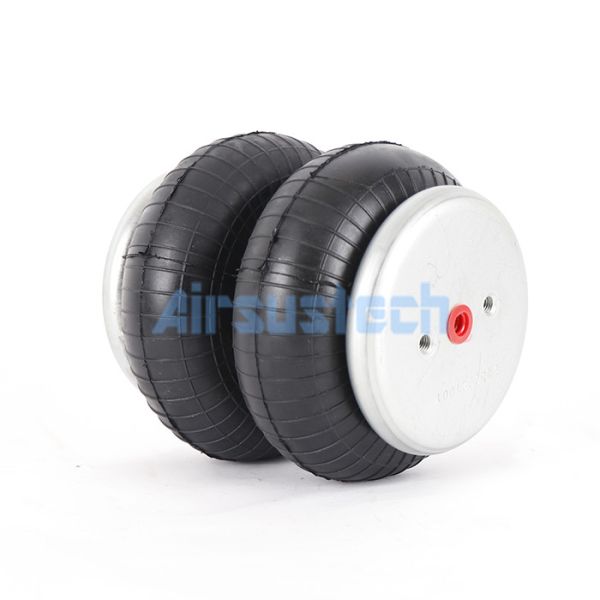

100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM

Categories Suspension Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B7070
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Model NO.: 2B7070
Cross Number: Festo 36494
Operation: Gas-Filled
Bellows Type: Double Convoluted
Operating Temperature: -40℃+70℃
Total Stroke: 100 MM
Pressure Ability: 3-8 Bar
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM

100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM



Design Specifications


Diameter of the Top Cover Plate145 mm

Center-to-Center Distance of Screws on the Top Cover Plate

44.5 mm
Diameter of the Bottom Cover Plate145 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate44.5 mm
Screw (Nut) Thread Count for the Top Cover Plate1×M8×1.25
Screw (Nut) Thread Count for the Bottom Cover Plate2×M8×1.25
Air InletG1/4
Rubber Bellow Natural Diameter230 mm
Minimum Height80 mm
Maximum Height180 mm

Other OEM Number


Festo Part Number

36 491, 36494

Festo Part Number

EB-165-125, EB165125, EB 165 125


We Can Offer Other OEM Numbers


2B6-5302B6-531FD 40-10 CISP2907
2B6-5322B6-535FD 70-13 CISP2441
2B6-5362B7-540FD 110-15 CISP2917
2B7-5412B7-542FD 120-17 CISP1482
2B7-5452B7-546FD 120-20 CISP1490
2B8-5502B8-552FD 200-19 CISP1538
2B8-5532B8-554FD 200-22 CISP1541
2B9-2002B9-201FD 200-25 CISP2782NB
2B9-2042B9-205FD 330-22 CISP1556
2B9-2162B9-250FD 330-30 CISP1557
2B9-2512B9-253FD 530-22 CISP1408
2B12-3092B12-218FD 530-35 CISP2342
2B12-4252B12-429FD 960-22 CI
2B12-4372B12-416FD 1330-25 CI
2B14-3522B14-353
2B14-3542B14-355
2B14-3622B14-363
2B14-4522B15-375
2B15-3762B15-377
2B15-3782B19-8433
2B22-8539

Air Spring Installation


1.Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
2.Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
3.If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.

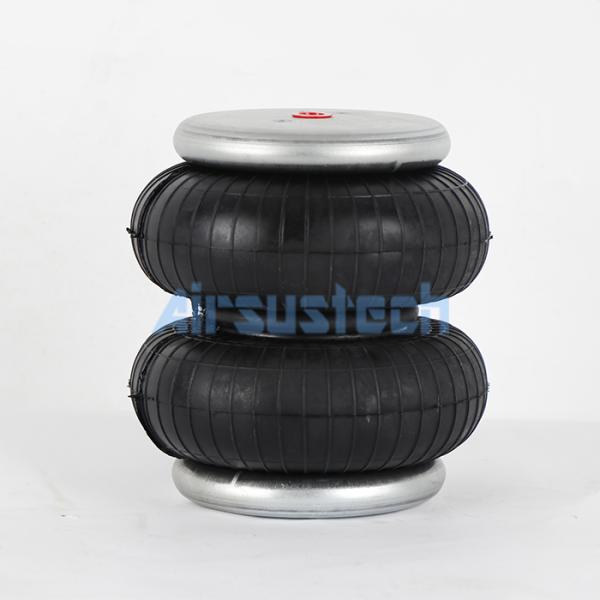

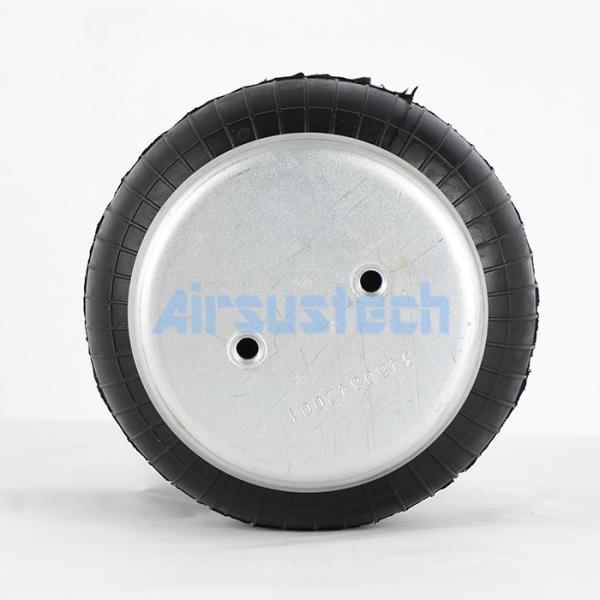

Detailed Pictures


Buy 100% Tested Air Shocks Festo EB-165-125 Pneumatic Air Spring Natural OD. 162MM at wholesale prices
