| Categories | Automatic Rigid Box Making Machine |
|---|---|
| Brand Name: | WELLMARK |
| Model Number: | WM-4045B |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C at sight |
| Supply Ability: | 5 set per month |
| Delivery Time: | one week |
| Certification: | SGS |
| Packaging Details: | wooden case |
| Type: | Packaging Machine |
| Application: | Cell Phone Box, Rigid Box |
| Packaging Type: | Case Wood |
| Dimension(L*W*H): | 8.8 x 4.3 x 3.1M |
| Weight: | 5800kg |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Speed: | 30pcs/min |
| Power: | 18KW |
| Model: | WM-4045B |
| Company Info. |
| WELLMARK PACKAGING CO.,LTD. |
| View Contact Details |
| Product List |

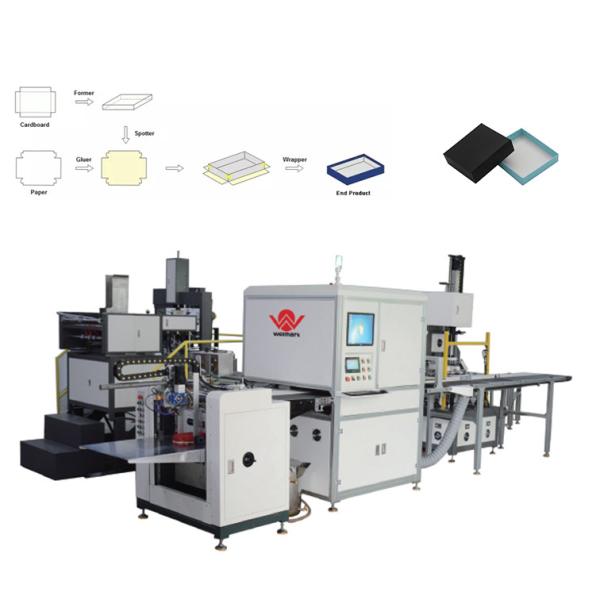

Full Automatic Jewelry Box Making Machine
Product Description
WM-4045B Fully Automatic Rigid Box Making Machine is the best
equipment to produce high-grade products cover the boxes.
Reasonable design, stable performance, equivalent to the
international leading technology level. Adopt PLC programmable
controller,HD Camera positioning system,Yamaha mechanical arm to
positioning , touch human-machine interface. Realize the automatic
paper, automatic gluing, automatic positioning, artificial boxes
automatically fold the ear side pressure foam molding process
action series of one-time finish. The machine production efficiency
is several times higher than that of the traditional craft
production, also have fault diagnosis display and alarm function,
operation safety guarantee. Suitable for making the high-quality
goods class electronic box, jewelry box, and other high-grade
packing gift box cover heaven and earth.
Note: the maximum size of the box and minimal size depends on the paper
at the same time the maximum and minimum size and surface quality
of the paper. Speed will depending on the different boxes size with
different paper materials.
Techical Parameters
Paper Wrap Size (L=Length,W=Width) | Widest(W) | 630mm |
| Narrowest(W) | 95mm | |
| Longest(L) | 820mm | |
| Shortest(L) | 120mm | |
Box Size L=Length W=Width H=Height | Longest(L) | 450mm |
| Shortest(L) | 130mm | |
| Widest(W) | 400mm | |
| Narrowest(W) | 45mm | |
| Highest(H) | 120mm | |
| Shortest(H) | 15mm | |
| Thickness of Paperboard(g/m2) | Thinnest(T) | 1.0mm - 4.0mm |
| Thickness of Paper(g/m2) | Range | 80g/m2-300g/m2 |
| Speed | ≤32pcs/min | |
| Air pressure | 0.6-0.8MPa | |
| Voltage | 380V/50HZ | |
| Power | 18kw | |
| Net Weight | 5800kgs | |
| Machine Overall Dimension | L6.8m×W4.3m×H3.1m | |
Other Product
Product Feature
1, Automatically feed paper and boxes
2, 24-hours control for glue pre-heating
3, Spotter by 2pcs of 5 megapixel HD Camera tracing system and
Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm
4, Boxes molding department according to the boxes on the belt
conveyor, operator collection box to molding department.
5, Boxes molding department, fold the ear, pressing the air bubble
is forming a one-time.
6, The whole machine adopts PLC control, HD Camera positioning
system, touch human-machine interface, the automatic production of
rigid boxes forming process.
7, Computer control with error auto stop and display
Product Advantage
1. High positioning accuracy with a positive and negative error of
0.05mm.
2. Visual deviation correction positioning auxiliary function, the
manipulator can automatically adjust the positioning position.
3. Automatic feida paper feeding, simple, efficient and stable
production.
4. Specially designed gluing roller can adjust thinner and more
uniform gluing coating on paper surface.
5. Specially designed gluing backflow device can make gluing easy
to backflow into gluing barrel and circulate.
6. Relatively closed circulation design can reduce the temperature
loss of glue.
7. Special paper unloading blade is easy to glue at high speed.
8. The conveyor belt is equipped with strong suction air to make
the coated surface paper more stable on the conveyor belt.
9. Can choose to increase the glue precision automatic detection
control device.
10. Automatic delivery carton or cardboard can be selected for
positioning.
Rigid Box Product flew
Our Exhibitions
We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.
Packing and Shipping
Packaging by wooden case and shipping by containers.
|
