| Brand Name: | GUOMAT |
| Model Number: | FD120-17 |
| Certification: | ISO/TS16949, ISO9001 |
| Place of Origin: | Guangdong, China |
| MOQ: | 5 |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000PCS/Week |
| Delivery Time: | 5-8 Working Days |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Structure: | Double Convoluted |
| Quality: | 100% Tested |
| Trademark: | GUOMAT |
| Total Stroke: | 6.1 Inches |
| Compatibility: | Universal |
| Air Hole: | 3/4 NPT |
| Warranty Special: | 12 Months |
| Company Info. |
| GUANGZHOU GUOMAT AIR SPRING CO. , LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

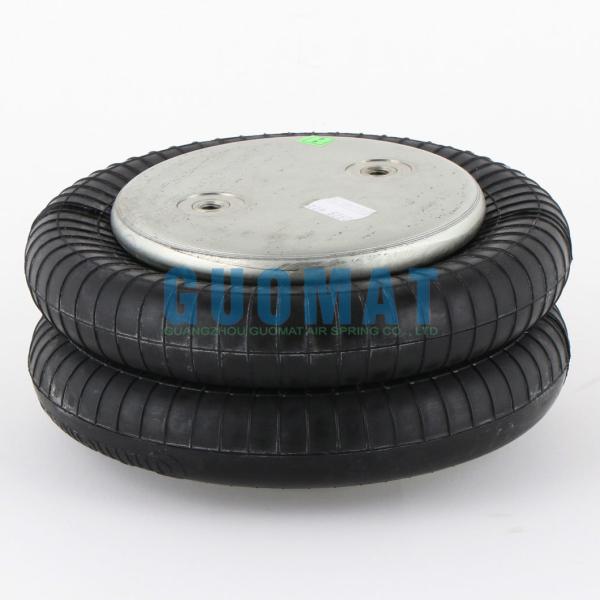

FD120-17 Air Spring Assembly Senho 2S120-17 Truck Suspension Air Lift 3/4 NPT
Product Specification
| Number of screws on the top cover: 3 |
| Number of bottom cover screws: 2 |
| Top cover plate screw (nut) tooth: 2×3/8UNC |
| Top cover screw center distance: 2.76 Inches |
| Screw (nut) teeth of the bottom cover plate: 2×3/8UNC |
| Center distance of bottom cover plate screw: 2.76 Inches |
| Air hole/air inlet/air connector |
| Air hole/air inlet: 3/4 NPT |
| Top cover diameter: 5.55 Inches |
| Diameter of bottom cover: 5.55 Inches |
| Natural diameter of rubber bellows: 8.46 Inches |
| Recommed height of rubber bellows: 7.48 Inches |
| Unbuffered block |
| Waist ring/waist ring |
| Strap ring: no strap ring |
Product Technical Data
Force F @ 40 psi at 7.0 inches [Ibf]: 885
Force F @ 60 psi at 7.0 inches [Ibf]: 1340
Force F @ 80 psi at 7.0 inches [Ibf]: 1790
Force F @ 100 psi at 7.0 inches [Ibf]: 2260
Force F @ 120 psi at 7.0 inches [Ibf]: 2710
Force (Load) @ 40 psi at recommended height [Ibf]: 778
Force (Load) @ 60 psi at recommended height [Ibf]: 1210
Force (Load) @ 80 psi at recommended height [Ibf]: 1640
Force (Load) @ 100 psi at recommended height [Ibf]: 2060
Force (Load) @ 120 psi at recommended height [Ibf]: 2460
