High Performance Parker 9109001A Air Suspension Spring For Industrial Air Spring

Categories Industrial Air Springs
Brand Name: AIRSUSTECH
Model Number: 2B6×2P
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou,China
MOQ: 5
Price: Negotiable
Payment Terms: T/T, Western Union, Paypal or Others
Supply Ability: 1000PCS/Week
Delivery Time: 5-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Manufacturer: AIRSUSTECH
Item Number: 2B6×2P
Structure: Double Convoluted
OEM NO.: Norgren PM31062
Total Stroke: 115 MM
Operation: Gas-Filled
Vibration Frequency: 2.7 Hz
Ships From: Any Port in China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Performance Parker 9109001A Air Suspension Spring For Industrial Air Spring

High Performance Parker 9109001A Air Suspension Spring For Industrial Air Spring


2B6×2P Specification


Cover Plate
Top Cover Plate Diameter152.5 mm
Screw Center Distance of Top Cover Plate127 mm
Bottom Cover Plate Diameter152.5 mm
Screw Center Distance of Bottom Cover Plate127 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth4×M8
Bottom Cover Plate Screw(Nut) Tooth4×M8
Gas Hole/Air Inlet/Air Fitting
Air HoleG 1/2
Rubber Bellow
Rubber Bellow Max. Diameter178 mm
Minimum Height80 mm
Maximum Height195 mm
Space Required195 mm

2B6×2P OEM Number


Parker

9109001A


Dunlop Springride

SP2917, SP 2917


Dunlop Pneuride

6" x 2 (Al), 6 x 2 (Al), 6 x 2 (Al)


Norgren

PM31062, PM 31062


Firestone

W01-R58-4070, W01R584070, W01 R58 4070

WO1-R58-4070, WO1R584070, WO1 R58 4070


Contitech

FD76-14 DI, FD 76-14 DI, FD7614 DI

FD 7614 DI, FD 76 14 DI, FD76 14 DI


Double Convoluted Type Air Actuator OEM Number


2B6-5302B6-531FD 40-10 CISP2907
2B6-5322B6-535FD 70-13 CISP2441
2B6-5362B7-540FD 110-15 CISP2917
2B7-5412B7-542FD 120-17 CISP1482
2B7-5452B7-546FD 120-20 CISP1490
2B8-5502B8-552FD 200-19 CISP1538
2B8-5532B8-554FD 200-22 CISP1541
2B9-2002B9-201FD 200-25 CISP2782NB
2B9-2042B9-205FD 330-22 CISP1556
2B9-2162B9-250FD 330-30 CISP1557
2B9-2512B9-253FD 530-22 CISP1408
2B12-3092B12-218FD 530-35 CISP2342
2B12-4252B12-429FD 960-22 CI
2B12-4372B12-416FD 1330-25 CI
2B14-3522B14-353
2B14-3542B14-355
2B14-3622B14-363
2B14-4522B15-375
2B15-3762B15-377
2B15-3782B19-8433
2B22-8539

Supports And Services


From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.


  • Global Manufacturing and Sales Facilities offer our customers:
  • Highly Trained Distribution Network
  • State-of-the Art Engineering Capabilities
  • Custom Solution Development
  • Customer Service Specialists
  • Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

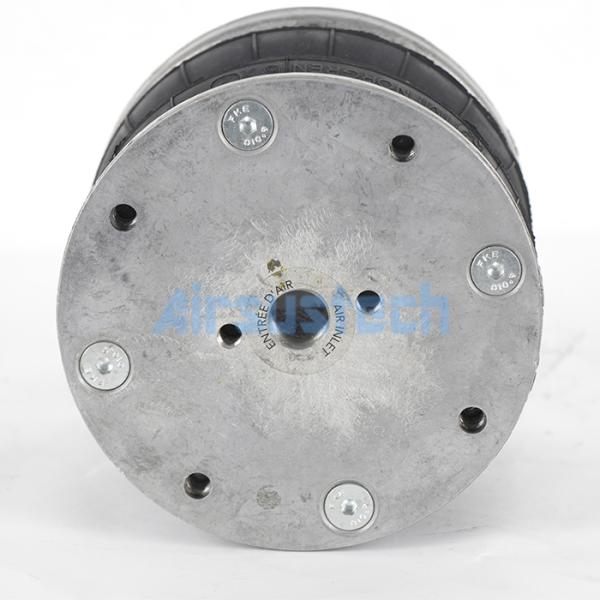

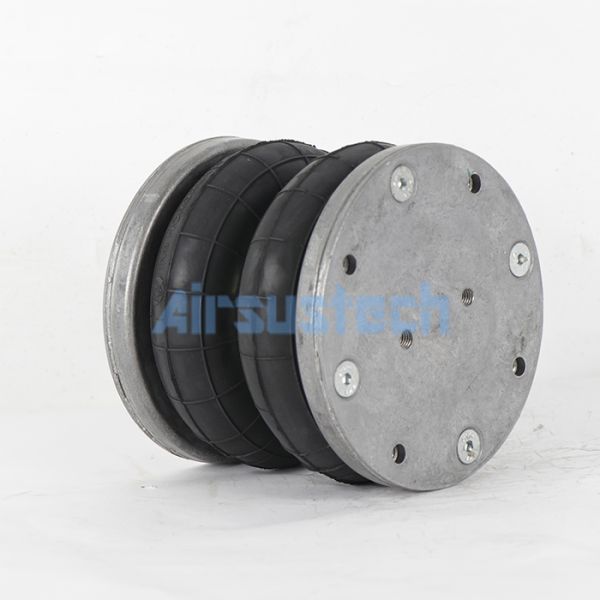

2B6×2P Detailed Pictures
