Strong and Sturdy Graphite Crucibles for Foundry Built to Withstand High Temperatures

Strong and Sturdy Graphite Crucibles for Foundry Built to Withstand High Temperatures

Strong and Sturdy Graphite Crucibles for Foundry Built to Withstand High Temperatures
Strong and Sturdy Graphite Crucibles for Foundry Built to Withstand High Temperatures
Categories Graphite Products
Type: Isostatic
Application: metal melting
Height: customized
Composition: High Pure
Top Diameter: customized
Bottom Diameter: customized
Place of Origin: Henan, China
Brand Name: LFYGY
Model Number: graphite crucible
Name: graphite crucibles for foundry
Material 2: graphite
Sample: available
Advatange: factory sale, high quality
Certification: ISO9001
Lead time: 3-5 days for standard size
Packing: Standard exporting packing
Shipping: Express,sea or air, or FBA, or post
Purity: 99wt%
Compressive Strength: 24-60
Packaging Details: Carton or wooden case, or standard export package , or as per yours
Port: Shanghai,qingdao, tianjie,
Supply Ability: 2000 Ton/Tons per Year
MOQ: 10 pieces
Price: $3.00 - $6.00/pieces
Contact Now
Company Info.
Henan Zion New Material Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Strong and Sturdy Graphite Crucibles for Foundry Built to Withstand High Temperatures

Product Details
Graphite crucible is made from our high quality graphite block and widely used in all kinds of furnace for melting such as jewelry, gold, silver, copper, brass, iron, aluminum, zinc, lead and so on. Based on working environment, we could supply the molded graphite, isostatic graphite, medium grain graphite, and some imported graphite materials.

Do you know how to choose graphite crucible? 1. Confirming your use, which metal you want to smelting. 2. Confirming your working temperature and acid-base property. 3. Confirming your thermal shock property, it is mean the time of your heating from the 0 degree to the highest temperature. 4. Confirming your working environment. When you melting, the crucible is in the air of vacuum.

Below are the common using graphite crucibles display(we have them in stock), if you want special shape crucible, just contact us , we can accept customize any shape crucible , ODM OEM is available !!
Just provide the detail size or drawings for us ,we can quote you !!!

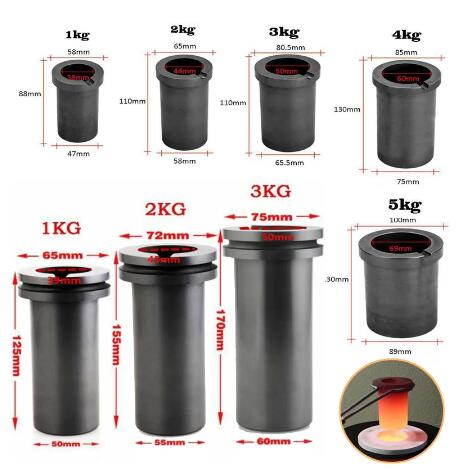

Graphite crucible with double rings for gold melting

Graphite crucible with single ring for gold melting

Cylindrical shape graphite crucible with lid or not

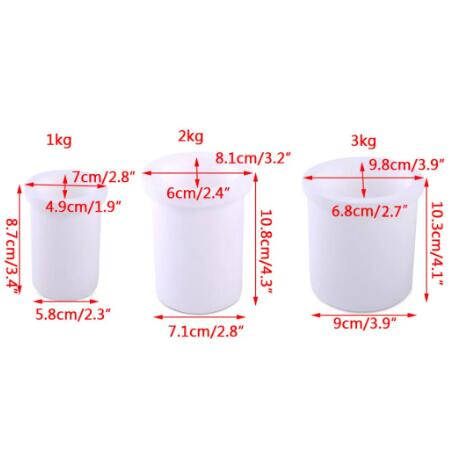

Quartz outer coat crucible used with single ring graphite crucible

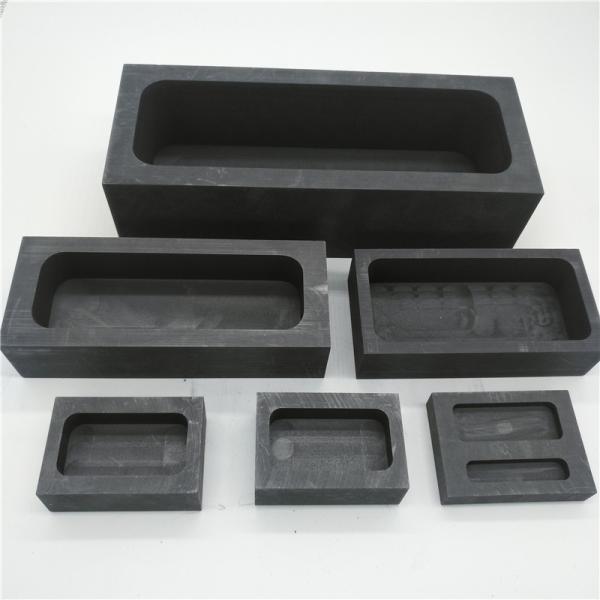

Square shape graphite crucible ,boat ,graphite box.

Square shape graphite crucible box with handle

Square shape graphite crucible box with handle sizes in stock , if need other size ,can customize
INNER SIZE (MM)
Capacity (for gold)
Capacity (for Silver)
65
30
20
0.5kg
0.25kg
105
35
20
1kg
0.5kg
105
40
30
2kg
1kg
155
35
35
3kg
1.5kg
150
50
30
4kg
2kg
160
60
30
5kg
2.5kg
105
70
10
1kg
0.5kg
105
80
10
1.5kg
0.75kg
105
80
15
2kg
1kg
155
90
20
5kg
2.5kg
Product Advantage
1.The raw material is high-purity isostatic graphite, which is resistant to oxidation, high temperature resistance and long life
2.Fine machining , reasonable design, non-stick slag, not easy to crack
3. Does not pollute metal, conducts electricity well, heats up quickly

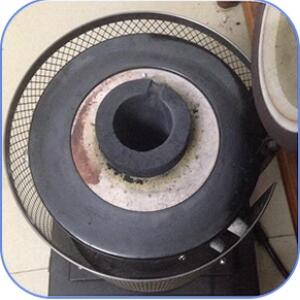

Application Display:

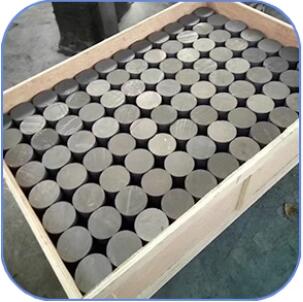

Packing and Delivery
Other Graphite Products Display
We can produce various graphite items, like graphite crucible, furance heaters , graphite box, Fuel Cell Bipolar Plates, Graphite mold for digestion instrument, welding mould , Graphite bearings, graphite sliders, graphite pots, graphite screws, graphite scrapers, graphite nozzles, graphite products for various non-ferrous metallurgy, kilns, glass and other industries.
Contact us if you need any graphite items !!!
Company Description
Henan Zion New Material Co., Ltd. is an enterprise specializing in the production and sales of graphite products and new industrial materials. The main products are: graphite rods , graphite crucibles, graphite molds, graphite plates, graphite rods, high-purity graphite, etc. We have advanced graphite processing equipment and superb production technology, with CNC milling machines, CNC lathes, large sawing machines, surface grinders and so on. Various difficult graphite products can be processed according to customer requirements.
FAQ
1.When can i get the price?
We usually quote within 24 hours after getting your detailed requirements,like size,
quantity etc. .If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Samples delivery time will be about 2-5 days.

3.What about the lead time for mass product?
The lead time is based on the quantity,about 5-7 days.For graphite product,apply
Dual-use items license need about 15-20working days.

4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you.
Besides that, we can also shipping by Air and Express.

Do you know how do we produce the graphite crucible?
1. We will select the best material according to your application, such as use, working temperature, in vacuum or air and so on.
2. We will confirm your size or drawing and machining precision.
3. We will send the drawing to our technicist and worker
4. We will use the numerically-controlled machine tool to produce.
5. We will check the quality and size.
