GUOMAT 1B12-300 / 1B12- 313/ W01-358-7008 Specifications and Technical Data

Order Number: W01-358-7008 / WO13587008 / WO1-358-7008 / W013587008 / W01 358 7008

Firestone Air Spring Part Number:W01-358-7008 / WO13587008 / WO1-358-7008 / W013587008 / W01 358 7008

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

Compressed Height: 2.12

Top Cover Plate Diameter: 9.00 inches / 231mm

Bottom Piston Number: 3212 or 3183

Bottom Cover Plate Diameter: 9.00 inches / 231mm

Screw Center Distance : 157.5 mm

Distance Gas Hole Between Nut 73 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm

Rubber Bellows Natural Diameter 300 mm

The Working Stroke : MAX 160 mm to MIN 55 mm

Compressed Height: 2.12 inches / 105 mm

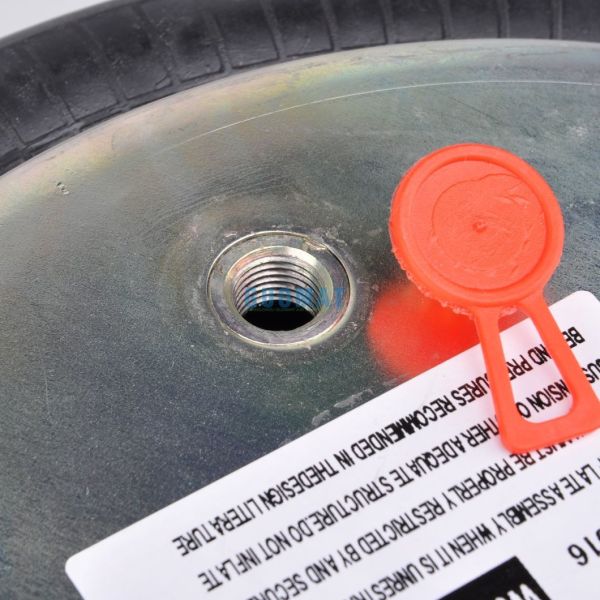

Gas Hole / Air inlet : 1/4 N P.T.F.

Fire stone Air Spring Bellows Number: 19

Goodyear Part Number:1B12-300 / 1B12-313

Goodyear Bellows Number:578-91-3-301 / 578 91 3 301 / 578913301

Triangle Part Number:4474

Triangle Bellows Number:6374

Holland (Neway) Number:905-57-226

OEM Original Equipment Manufacturer:

The usal kinds of Single Convolution Air Actuator

Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They are all can very quickly to deliver the package to you. If the package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and wooden case will be used if necessary.

Air Spring Use on Industrial Applications

Air Spring offer solutions for vibration-oriented mounting of many kinds of machines. From the technical design all the way through to the harmonization of individual system components. Air spring can be applied to a lot of equipment that can effectively reduce the influence of vibration to the equipment .Currently, more and more industrial equipment use air spring. GUOMAT air springs make very low natural frequencies possible, from 0.5 to 3.5 Hz depending on the type. With loads ranging from 0.5 k N to more than 440 k N, air isolators provide effective mounts for sensitive measuring instruments as well as heavy foundations.


Industrial Equipments Such As

Papermaking equipment, large washing machine, water treatment equipment, fitness equipment, punch press, leather draw machine, automobile testing station, medical machinery, mining machinery, etc.
