| Categories | Ceramic Bead Blasting |
|---|---|
| Brand Name: | FUDA |
| Model Number: | B20-B505 |
| Certification: | ISO9001,ISO14001 |
| Place of Origin: | Shanxi,China |
| MOQ: | 100KGS |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200mt per month |
| Delivery Time: | 3-10 days depending on the order quantity |
| Packaging Details: | 2*12.5kg drum+Carton Box+pallet,25kg drum+pallet |
| Product Name: | Zirconia Beads |
| Usage: | Metal Shot Peening |
| Specification: | B20 |
| Particle Size: | 0.600-0.850mm |
| Bulk Density: | ≥2.3g/cm3 |
| Processing Method: | Melting |
| Company Info. |
| Zhengzhou Zhengtong Abrasive Import&Export Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

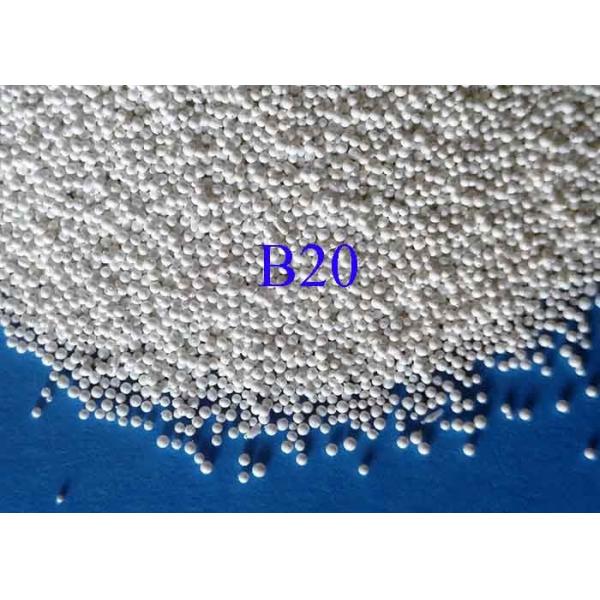

High Strength Ceramic Blasting Media Zirconia Beads B20 for Metal
Surface Cleaning
1. Product Description
Ceramic Blasting Media is one kind of zirconia beads,it contains
60-66% ZrO2,which selects thezirconium sand as
main materials,then fused under high temperature.
Generally speaking,there are the other three kinds of ceramic bead
according to their different content
of ZrO2, 65 zirconia beads (65% ZrO2),80 Zirconia Beads(80% ZrO2) ,95
Zirconia Beads (95% ZrO2).
2. The Comparation between different Ceramic Blasting Beads
| Item | Ceramic Blasting | 65 Zirconium | 80 Zirconia | 95 Zirconia Beads |
| Chemical Index | ZrO2 60-66% SiO2 25-30% Al2O3 7-13% | ZrO2 ≥65% SiO2 25-30% Others ≤1.0% | ZrO2 ≥80% SiO2 ≥10% Al2O3≥9.0% | ZrO2 ≥95% Y2O3 ≥4.5% Others ≤0.5% |
| Mohs Hardness | 8 Mohs | 8 Mohs | 9 Mohs | 9 Mohs |
| True Specific Gravity | ≥3.85 g/cm3 | ≥4.0g/cm3 | 5.2g/cm³ | ≥6.0 g/cm3 |
| Bulk Density | ≥2.3g/cm3 | ≥2.5g/cm3 | 3.2g/cm³ | ≥3.7g/cm3 |
| Particle Size | 0.04-0.85mm | Φ0.1-10mm etc. | Φ0.6-2.2mm etc. | Φ0.1-50mm etc. |
| Usage | Blasting Media | Grinding of Low or | Grinding of High | Grinding of High |
Seen from the above chart,ceramic beads has the lower bulk density
and true gravity as well as different chemical
composition compared with the other three ceramic beads. Its unique
features makes it more applicable for one blasting
media.
3. Specification of Zirconia Beads Ceramic Blasting Media
| Particle Size | |
| B20: 0.600-0.850mm | B100: 0.125-0.180mm |
| B30: 0.425-0.600mm | B120: 0.063-0.125mm |
| B40: 0.250-0.425mm | B170: 0.045-0.090mm |
| B60: 0.125-0.250mm | B205: 0.000-0.063mm |
| B80: 0.180-0.250mm | B400: 0.030-0.063mm |
| Remark: Special specification can be customized | |
4. Product Features of
High Grinding Effect
No Ferrous Contamination to the treatment surface
Low Abrasion rate
More concentrated particle distribution
Consistent blasting effect
No dust generation and no hidden silicosis danger
5.Main Application of Zirconia Beads Ceramic Blasting Media
Ceramic Beads Blasting has various particle specification from B20
to B505,it will meet the different
blasting purpose as below:
B20&B30 for metal surfacce peening to strengthen its
anti-fatigue life.
B40 for cleaning the glass-making molds,tire molds,tie casting etc.
B60 for the pipeline inner and outer wall blast cleaning;
B120 for the surface finish of golf club or medical instruments;
B170 for sandblasting the metal surface of 3C products;
B205 for metal surface finishing of light metal such as such as
aluminium alloy,titanium alloy and stainless
steel parts.
5. Product Package of Zirconia Beads Ceramic Blasting Media:
2*12.5kg drum+carton box+ pallet
25kg drum+pallet
Special packages can be customized.
6. Why Choose us?
Professional Manufacturers of Zirconia Ceramic Beads;
Stable quality and good after-sales service;
Main supplier of Foxconn,Samsung etc.
|
